Press [ENTER] to accept Cs value. The Cs value will be stored in memory with the test
setup.
2.7.3 Connecting the Device Under Test (DUT)
Before connecting the DUT, press the red [STOP] key and make sure the red DANGER
light is OFF.
Depending on the test to be conducted (Hipot, IR, LC or Ground Bond) connect the test
cables to the OUTPUT connectors. Refer to the Figures 2-25 through 2-32 to determine
the correct configuration. When using the black cable, with the metal retaining bracket,
make sure it is locked behind the connector to prevent this cable from accidentally
coming loose.
NEVER TOUCH THE TEST LEADS OR THE DEVICE UNDER TEST WHEN THEY ARE
CONNECTED TO THE INSTRUMENT AND THE RED DANGER LIGHT IS ON OR FLASHING.
2.7.3.1
The S-02 Cable Lead Set connects the product to G6100 Plus unit through a two lead set.
The leads consist of a white plug for connection to HV OUTPUT and a black banana
plug with retaining bracket for connection to the Drive- terminal. Figure 2-25 illustrates
the connection of the S-02 Cable Lead Set to the G6100 Plus instrument.
STOP
START
ON
1
0
OFF
2.7.3.2
Page 112 of 177
www.valuetronics.com
S02 Lead Set
QuadTech
Guardian 6100 Plus
Electrical Safety Analyzer

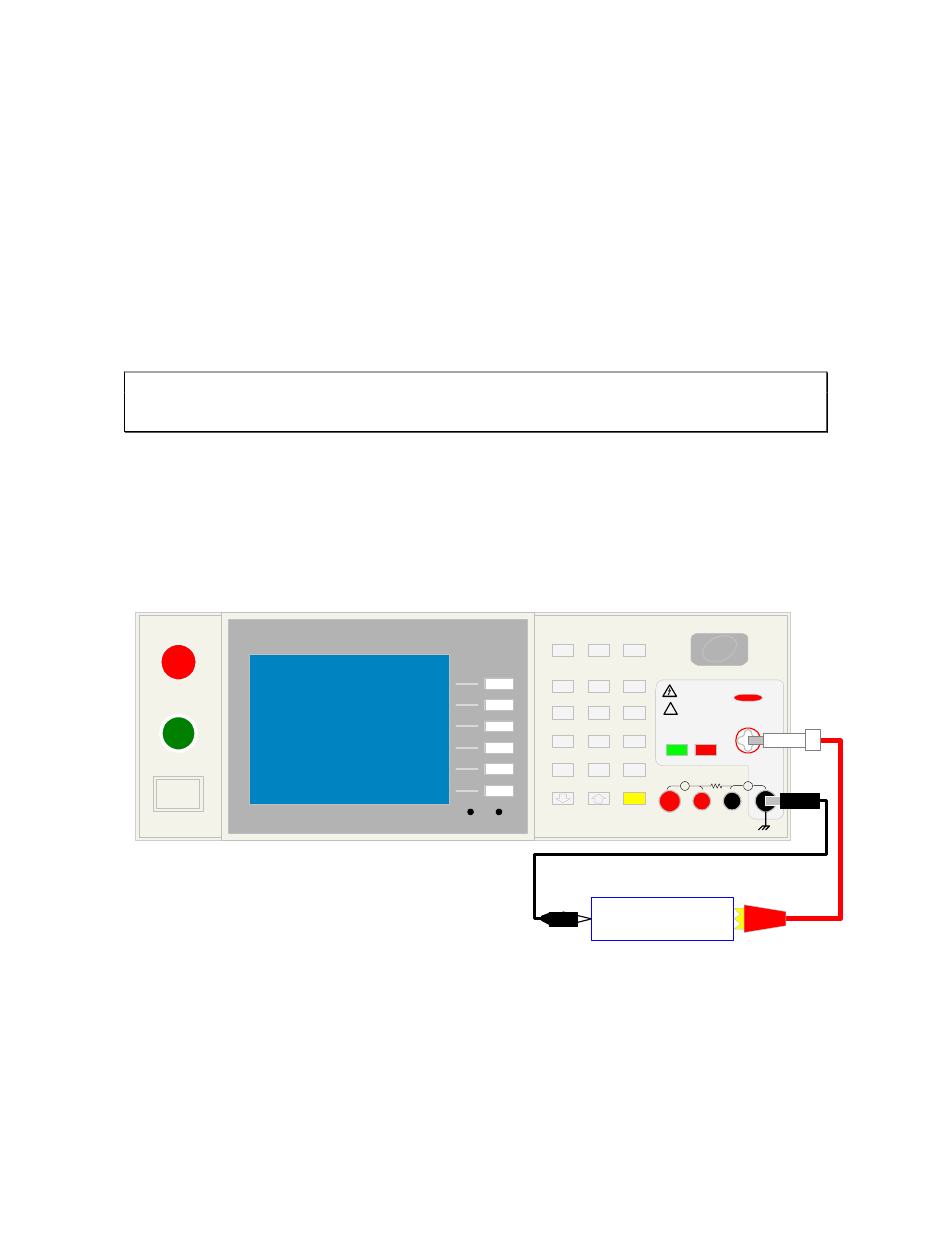

Figure 2-25: Connection for Hipot/IR Test (Using S02 Cable Lead Set)
G30 Corded Product Adapter
WARNING
MENU PRINT
1 2
4 5
7 8
0 .
CAL UPDATE
(-)
GND
150799 Rev A3
TM
Twin
LOCAL
Por t s
DANGER
3 HIGH
VOLTAGE
CAUTION!
!
Max: 5kVAC
6
6kVDC
OUTPUT
PASS FAIL
9
CLR
Drive Sense Sense Drive
+ -
ENTER
(+)
DUT
HV
S02 HV Lead Set
Operation
