QuadTech Guardian 6100 Plus Instruction Manual page 172

Press [UP] to go to CAL step 15. (GBA 30A Offset 3A)
Press [STOP]
Press [START]
Using keypad enter the current reading (reading from the voltmeter/ resistor standard
value) followed by the [ENTER]. (I=V/R)
Press [STOP] to accept reading.
Press [UP] to go to CAL step 16. (GBA 30A Full 25A)
Change the load to 100mΩ as shown in Figure 4-2.
Press [STOP]
Press [START]
Using keypad enter the current reading (reading from the voltmeter/ resistor standard
value) followed by the [ENTER]. (I=V/R)
Press [STOP] to accept reading.
STOP
START
ON
1
0
OFF
Page 172 of 177
www.valuetronics.com
KEITHLEY
DCV ACV DCI ACI
POWER
ChenHwa 9002 Grounding Tester Standard
10mΩ
Actual Value
2 wire 13.88
4 wire 10.56
Source Sense Source
QuadTech
Guardian 6100 Plus
Electrical Safety Analyzer

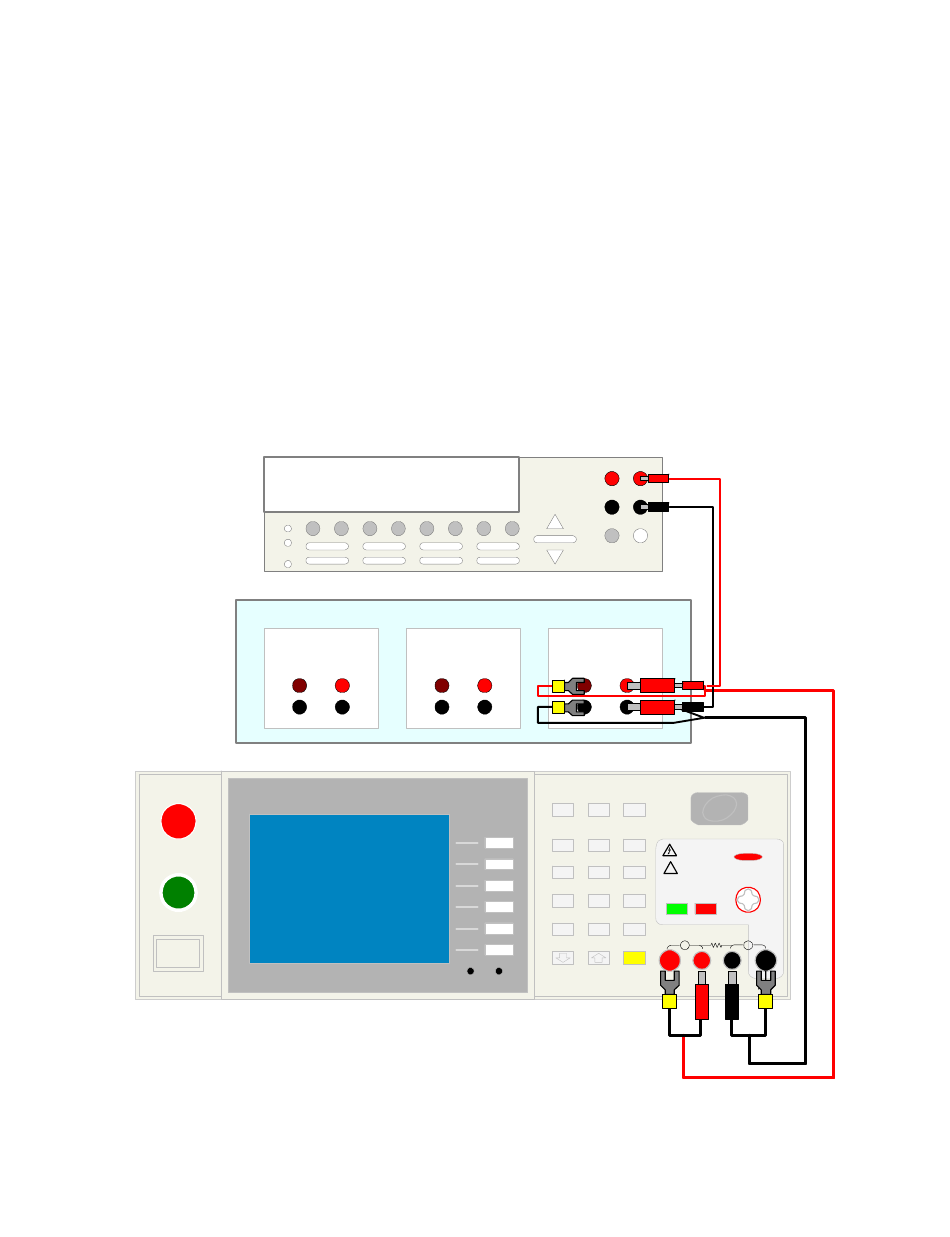

Figure 4-2: Connection to 100mΩ Standard
