QuadTech Guardian 6100 Plus Instruction Manual page 38

2.3.1.5
The Discharge-V function lets the user set the voltage that the G6100 Plus instrument
will discharge to upon completion of a hipot test. The time it will take to discharge to a
specific voltage is dependent on the capacitance of the DUT. The discharge time is a
natural log function. To access Discharge-V, enter System Setup by pressing [MENU],
[1] and the [↓] or [↑] arrow on the keypad so the backlit box is to the right of Discharge-
V. Use the numerical keys then [ENTER] to enter a voltage value in kV. The range is
0.05kV to 5.10kV and the instrument default value is 5.10kV.
Page 38 of 177
www.valuetronics.com

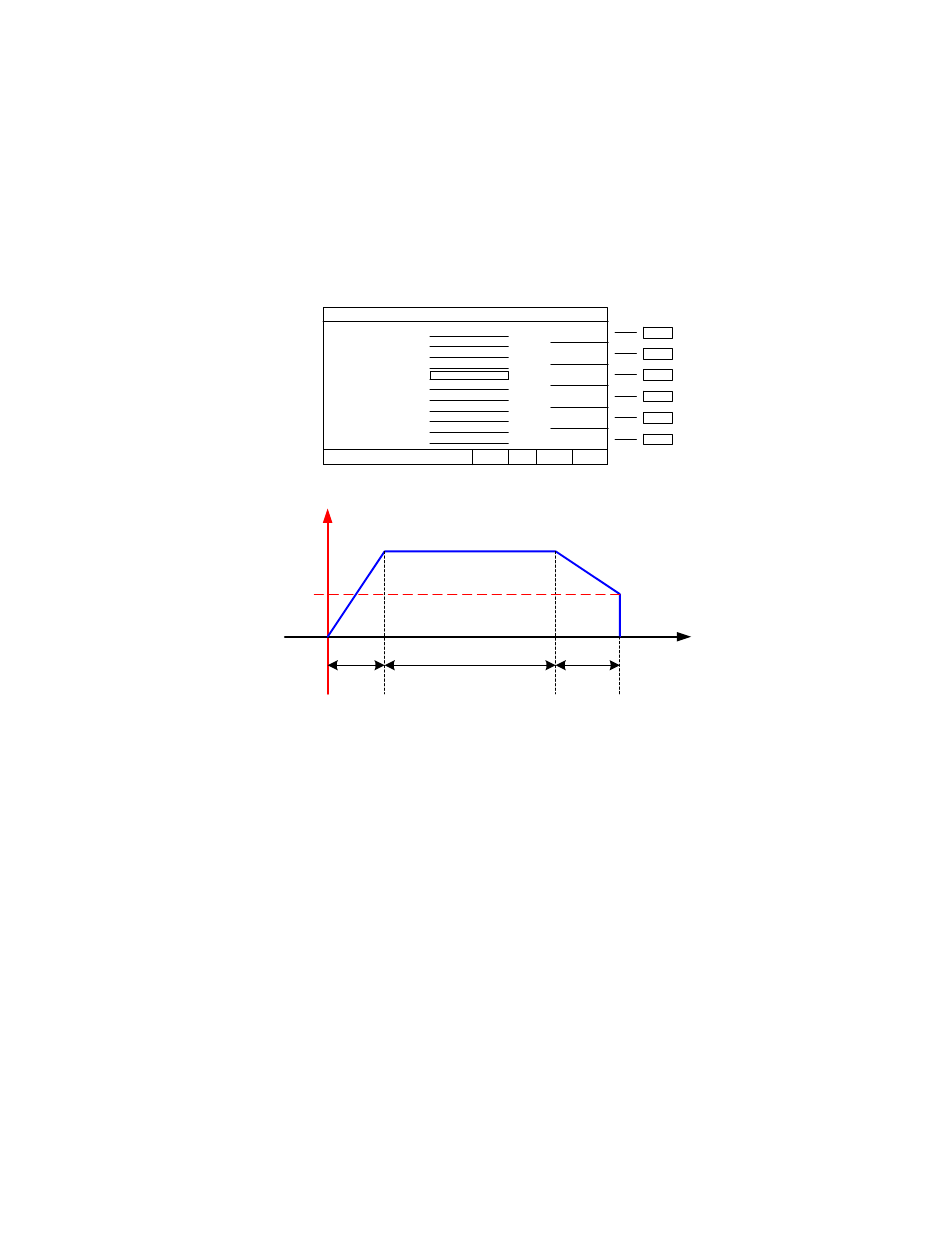

Discharge-V
SYSTEM SETUP
01. Contrast
02. Beeper Vol.
03. Compensate
04. DC 50V AGC
05. Discharge - V
06. Pass ON
07. Use Source
08. After Fail
09. AC Offset
10. LC Offset
11. IEEE-488.1
0.05 - 5.1kV
Voltage
Programmed
Discharge
Voltage
Ramp
Figure 2-3: Discharge Voltage
: 17
: HIGH
: 20%
: ON
: 3.10kV
: 1.0s
: OFF
: STOP
: 0.5mA
: 0.00mA
: ON
Remote Lock Offset Error
DC Test Discharge
150799 Rev A3
Time
Operation
