Offset – continued
Plug the appropriate cable (or other fixture) into the OUTPUT connectors, with no
device connected. Refer to ¶ 2.7.3 for cable connections.
DC Hipot and OSC measurements should be OPEN and test leads for GB should be
SHORTED before the OFFSET function is activated.
In MAIN MENU, Press [TEST] function key to enter Test Menu.
Press the [OFFSET] function key
Press the green [START] button.
Operation
www.valuetronics.com
GB FLOATING GPIB SCAN RS232
SENSE
DRIVE
HV OUTPUT
6kVDC
N-OUT (CH-1) L-OUT (CH-1)

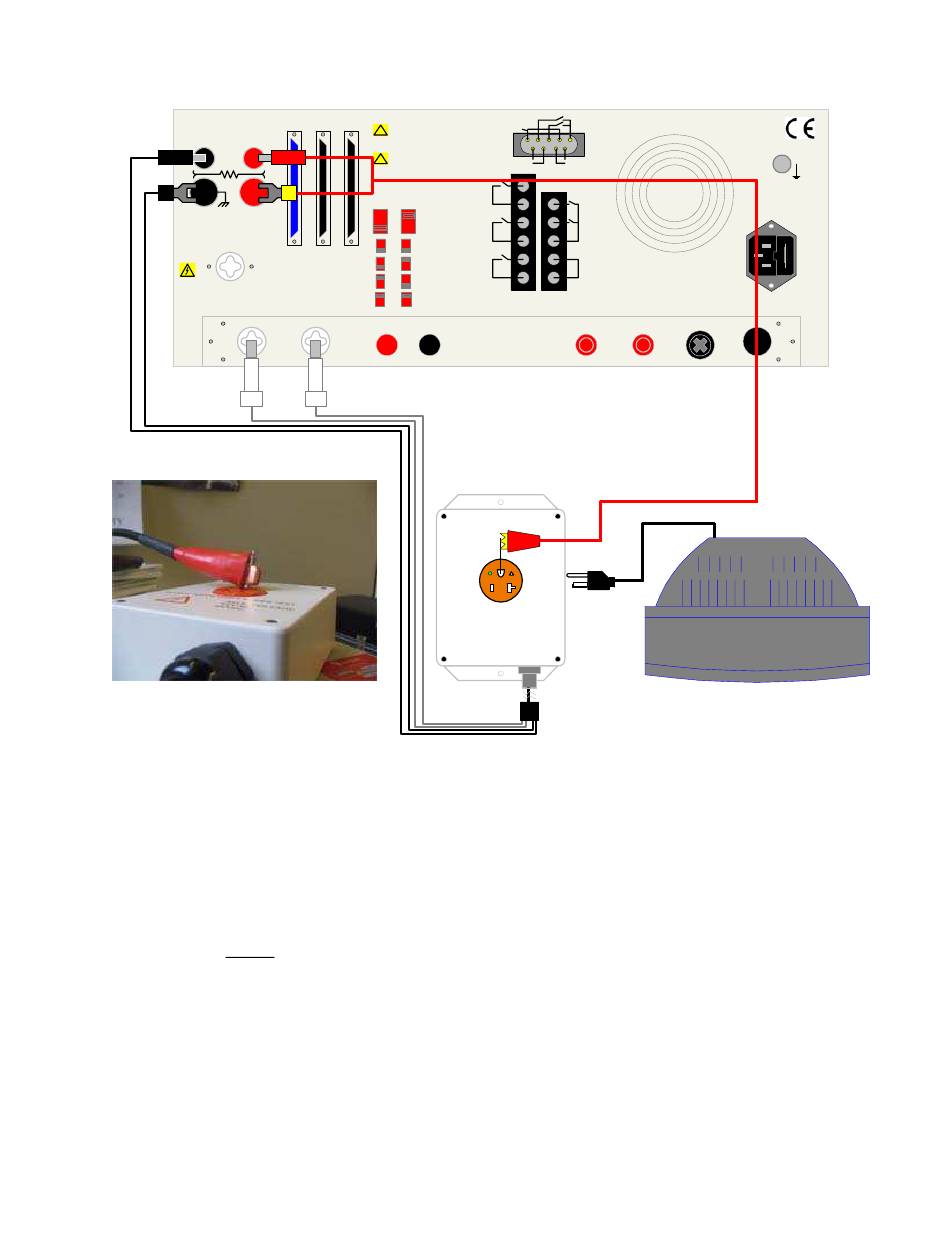

Figure 2-24: Offset Short using G15 and G30 Corded Product Adapter
UNDER
WARNING
! TEST
CAUTION
!
PASS
UNDER
TEST
PASS
100V
120V
FAIL
220V
REMOTE REMOTE
240V
OUTPUT INPUT
PATIENT PROBE
6000-07
#1 #2 HIPOT / LINE LEAKAGE
SCANNER
FUSE RATING
T20A / 250V
G30
Corded
Product
Adapter
QuadTech
20A 125V
DO NOT TOUCH W HILE
UNDER TEST
MAX.
VOLTAGE
5kVAC
6kVDC
150799 Rev A3
RESET
START
FAN
50 o C AUTO
ON/OFF
FAIL
START
RESET
COM
INTER
LOCK
LINE INPUT INPUT FUSE
N-IN L-IN
G15
Banana to
Alligator
Cable
DUT
(Monitor)
Note: Test leads for AC Hipot
Page 109 of 177
FUSE RATING
100/120V T8A 250V
220/240V T4A 250V
For GB Offset:
SHORT the
Drive- & Drive+
Terminals:
Place banana plug in
ground blade socket
