2.7.3.3
The G-15 Ground Continuity Lead Set provides 4-terminal connection of product to the
G6100 Plus instrument through a pair of banana/spade to alligator clip leads. The black
banana plug and spade lug connect to the (-) side of the output terminals and product.
The red banana plug and spade lug connect to the (+) side of the out put terminals and
product. Make the connection to the Drive + and Drive – terminals with the spade lug
positioned behind the nut.
STOP
START
ON
1
0
OFF
NOTE:
Make the connection to the
DRIVE+ and DRIVE-
terminals with the spade lug
behind the nut. Use the
Bushing Driver Tool included
to secure the nut as shown
here.

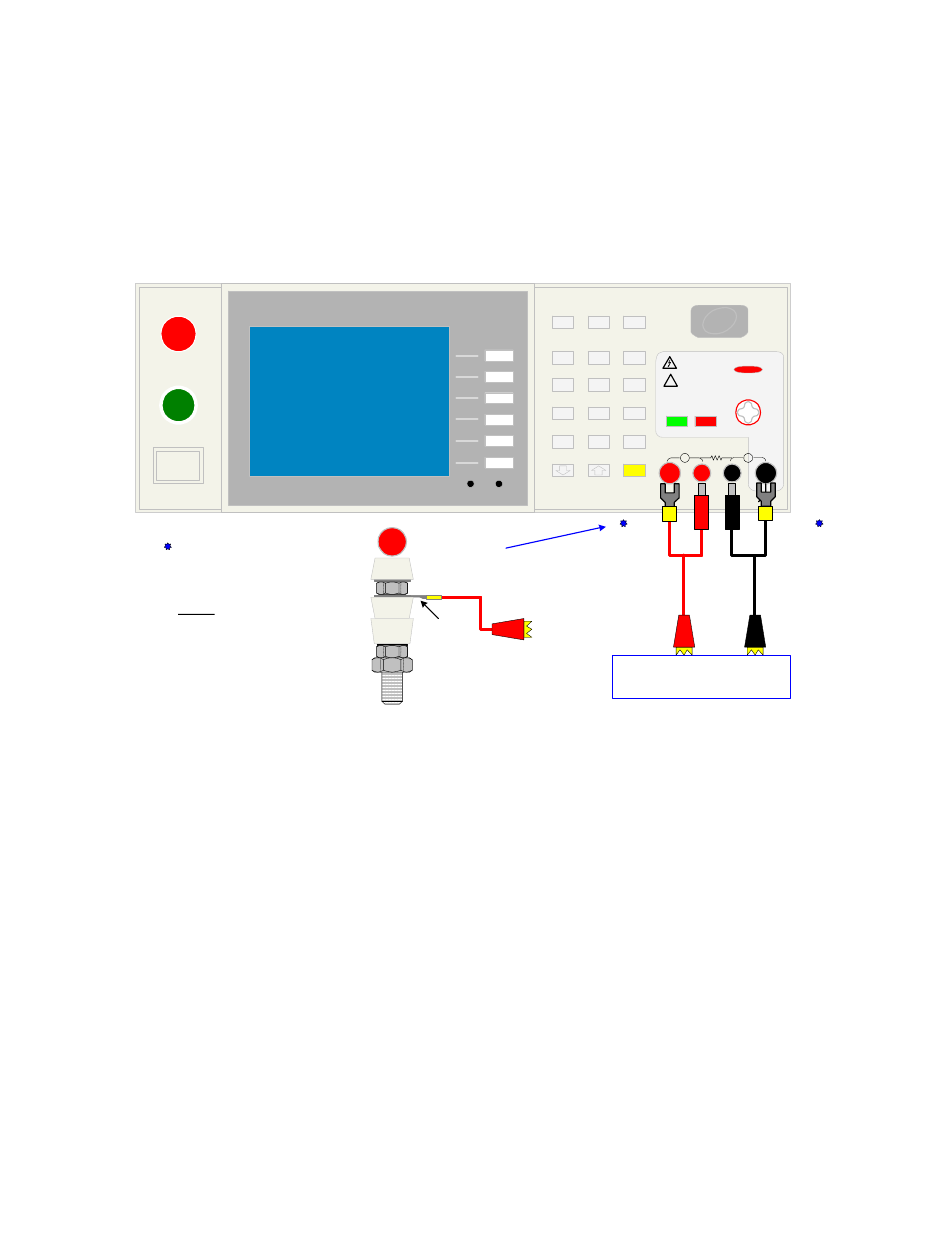

Figure 2-28: Connection for Ground Continuity Test (Using G15 Cable Lead Set)
Operation
www.valuetronics.com
G15 Ground Continuty Lead Set
QuadTech
Guardian 6100 Plus
Electrical Safety Analyzer
DRIVE+ and DRIVE-
Output Terminals
Screw SPADE between bolt
and second connector
SPADE lug
150799 Rev A3
MENU PRINT LOCAL
1 2 3
4 5 6
7 8 9
0 . CLR
ENTER
CAL UPDATE
Red
Spade
Lug
to
Drive+
Red Alligator Clip
to Case of DUT
DUT
TM
Twin
Por t s
DANGER
HIGH
VOLTAGE
CAUTION!
!
Max: 5kVAC
6kVDC
OUTPUT
PASS FAIL
Drive Sense Sense Drive
-
+
Black
Spade
Lug
to
Red Black
Drive-
Banana Banana
Plug Plug
to to
Sense+ Sense-
Black Alligator Clip
to DUT GND (-)
GND (-)
(+)
HV
