QuadTech Guardian 6100 Plus Instruction Manual page 88

Enclosure (Touch/Chassis) Leakage: Connection to DUT

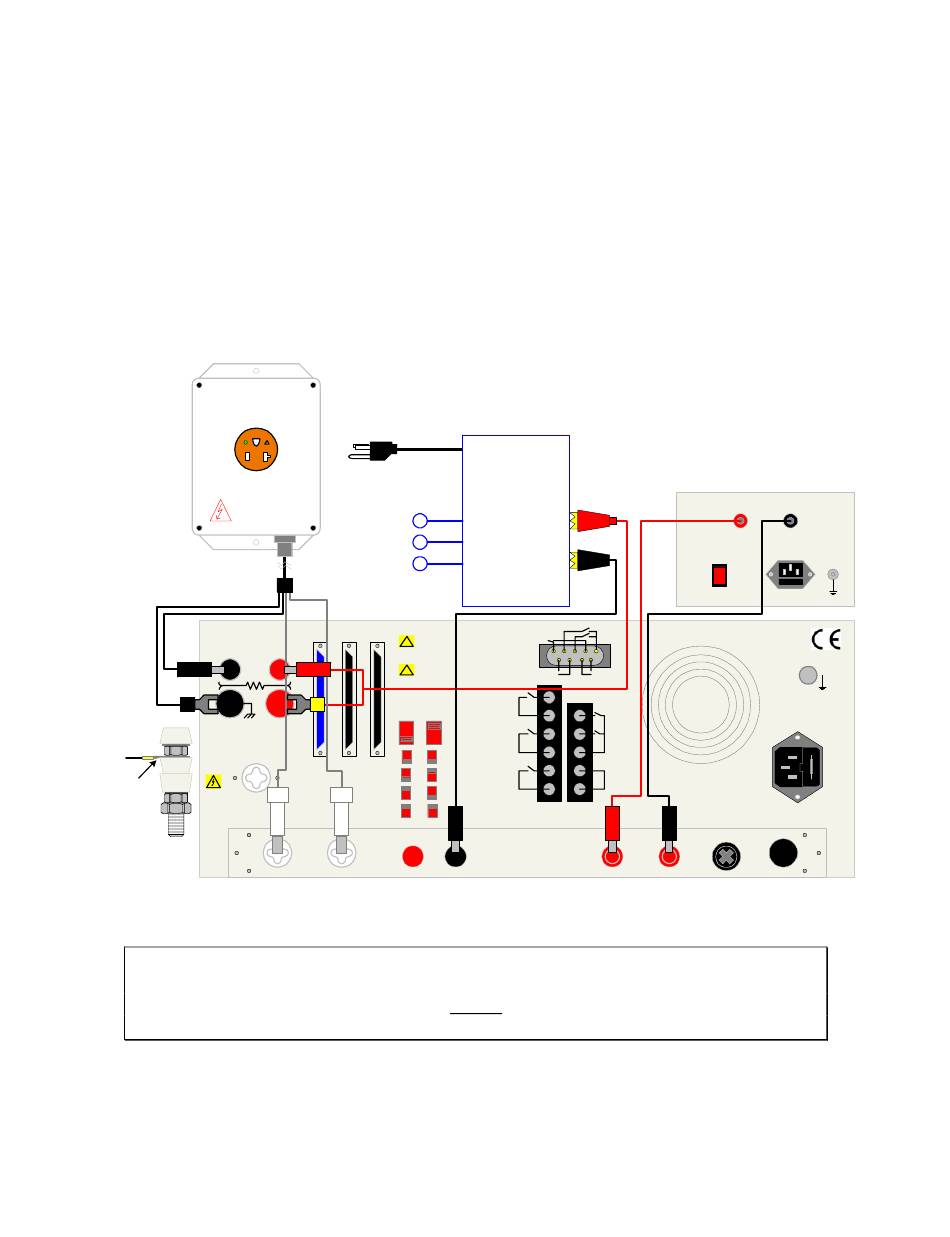

Figure 2-13b illustrates the connection of the Guardian 6100 Plus for an Enclosure
Leakage Current test. Connect the G32 Isolation Transformer to the 6000-07 LINE
INPUT terminals (L-IN and N-IN). Connect the black leads of the G30 Corded Product
Adapter to the black (low) SENSE and DRIVE "Optional Rear Output Terminals" of the
G6100. Connect the red leads of the G30 to the white L-OUT and N-OUT terminals on
the 6000-07. Connect the G15 red lead between the red (high) SENSE and DRIVE
terminals of the 6100 Plus and chassis of DUT ( that is protective earth, PE, on the DUT).
Connect PATIENT PROBE #2 to the enclosure of the DUT. Plug the DUT into the G30
Corded Product Adapter.
G30
Corded
Product
Adaptor
*
DRIVE+ and DRIVE- Output Terminals
Add bolt and screw SPADE
between bolt and second
connector
SPADE lug
For High Current Ground Bond Testing, make the connection to the DRIVE+ and
DRIVE- terminals with the spade lug behind the nut. Use the Bushing Driver Tool
Page 88 of 177
www.valuetronics.com
QuadTech
Plug into G30
20A 125V
DO NOT TOUCH WHILE
UNDER TEST
Patient Leads
MAX.
VOLTAGE
5kVAC
6kVDC
GB FLOATING GPIB SCAN RS232
SENSE
DRIVE
HV OUTPUT
HIGH VOLTAGE
MAX 5kVAC
6kVDC
N-OUT (CH-1) L-OUT (CH-1)
Figure 2-13b: Enclosure Leakage Test using the G6100 Plus
included to secure the nut as shown in Figure 2-13b.
Device UnderTest
DUT
G15
Red
Lead
PE
enclosure
UNDER
WARNING
!
TEST
CAUTION
!
PASS
UNDER
TEST
PASS
100V
120V
FAIL
220V
REMOTE REMOTE
240V
OUTPUT INPUT
PATIENT PROBE
6000-07
#1 #2 HIPOT / LINE LEAKAGE
SCANNER
FUSE RATING
T20A / 250V
NOTE
150799 Rev A3
G32: 1000VA Isolation Transformer
ISOLATING OUTPUT
LINE INPUT VOLTAGE DUT POWER
SELECTOR
90V - 132V~
T10.0A 250V
198V - 250V~
T5.0A 250V
115V~/230V~
50/60Hz 1200VA MAX
SINGLE PHASE
RESET
START
FAN
50 o C AUTO
ON/OFF
FAIL
START
RESET
COM
INTER
LOCK
LINE INPUT INPUT FUSE
N-IN L-IN
Operation
FUSE RATING
100/120V T8A 250V
220/240V T4A 250V
