2.3.1.11
Select IEEE-488.1 to ON to make the remote commands compatible with the QuadTech
Guardian 6000 instrument. When IEEE-488.1 is set to ON, only the Guardian 6000
commands are valid. Refer to the Guardian 6000 instruction manual (P/N 150354) for a
set of commands.
To access IEEE-488.1, enter System Setup by pressing [MENU], [1] and the [↓] or [↑]
arrow on the keypad so the backlit box is to the right of IEEE-488.1. Use the function
key [ON] or [OFF] to turn the interface ON or OFF. The default setting is OFF.
2.3.2 OPTION
To access the OPTION MENU, press the [MENU] function key at the top left hand
corner of the keypad and press the numerical key [2]. Within OPTION there are 5
parameters: RS-232, GPIB, Scanner, Print and GB-C Rate.

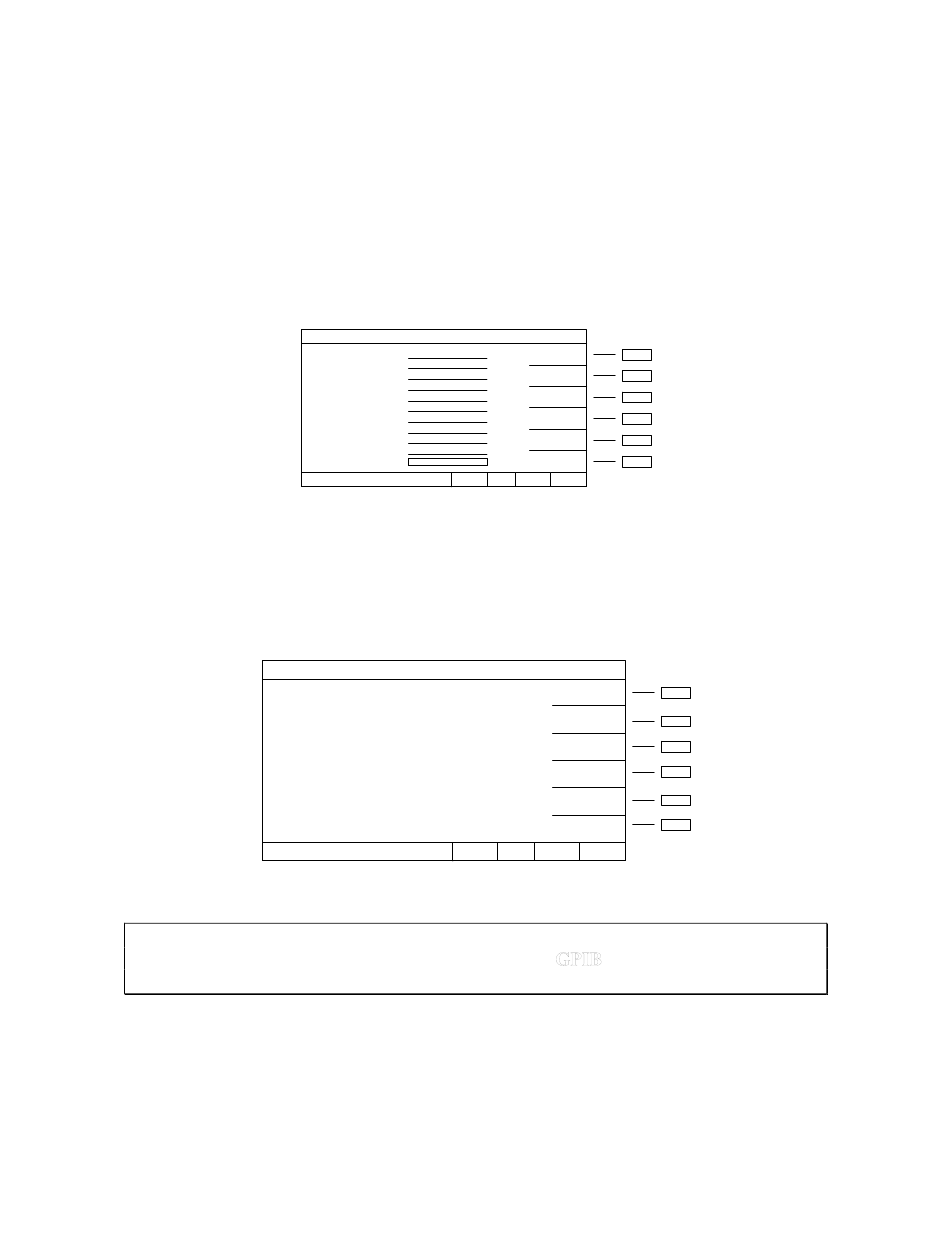

parameters, use the function keys on the right of the display. Refer to Figure 2-4.
In any of the menus, when the text appears ghost-like "
Page 42 of 177
www.valuetronics.com
IEEE-488.1
SYSTEM SETUP
01. Contrast :
02. Beeper Vol. :
03. Compensate :
04. DC 50V AGC :
05. Discharge - V :
06. Pass ON :
07. Use Source :
08. After Fail :
09. AC Offset :
10. LC Offset :
11. IEEE-488.1 :
ON/OFF
OPTION MENU
Figure 2-4: Option Menu
that optional function is not installed and unavailable.
17
HIGH
ON
20%
ON
3.10kV
1.0s
OFF
OFF
STOP
0.5mA
0.00mA
ON
Remote Lock Offset Error
RS-232
GPIB
SCANNER
PRINT
GB-C RATE
Remote Lock Offset Error
Note:
" with dashed lines it means
150799 Rev A3
To access any of these 5
