QuadTech Guardian 6100 Plus Instruction Manual page 44

2.3.2.3

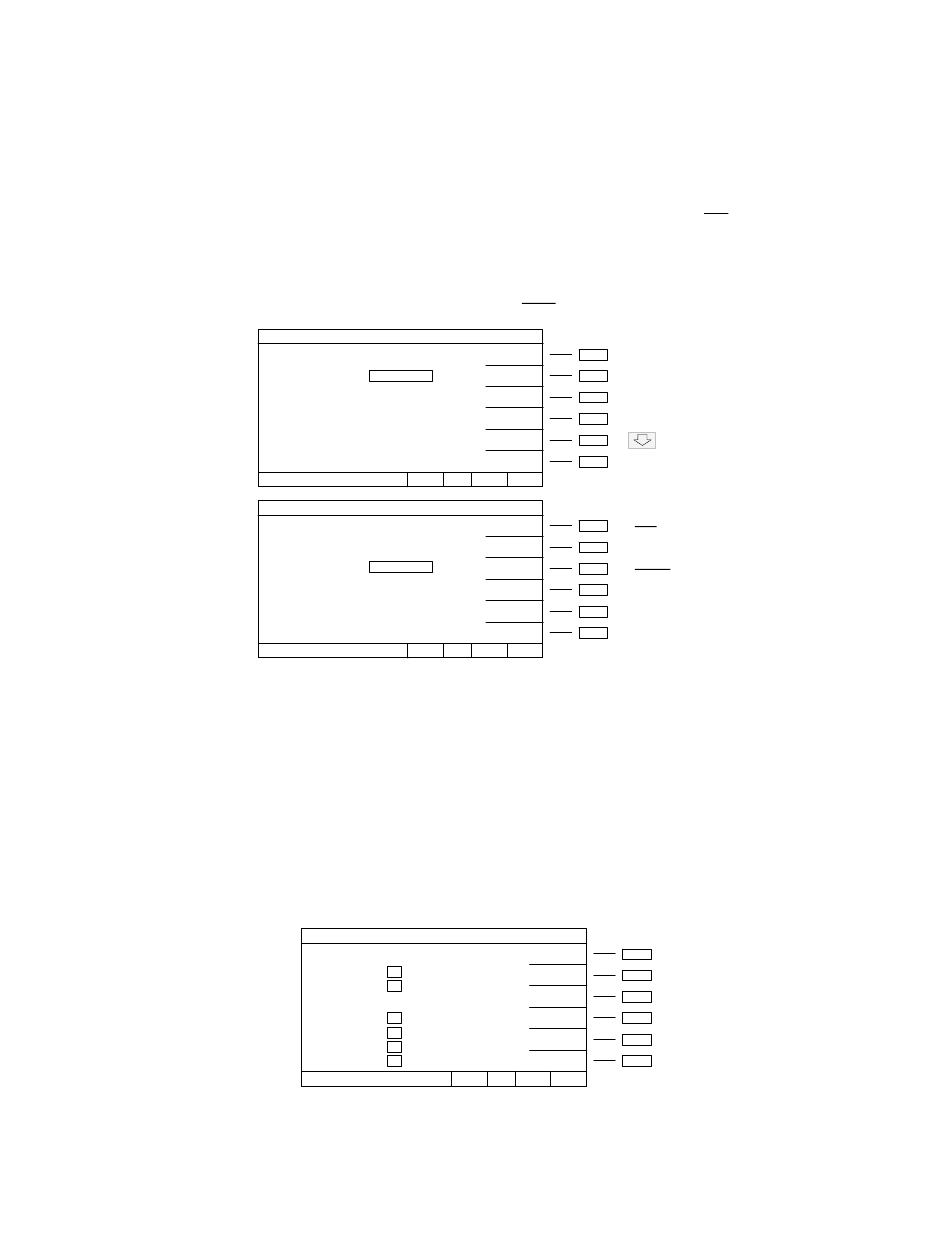

Use SCANNER to select the type of internal scanner. The G6100 Plus has a 6000-07
internal scanner installed. To access Scanner Setup, enter the Option Menu by pressing
[MENU], [2] and then the function key [SCANNER].
'Scanner type is:'. The internal scanner (Scanner 1) is set to 6000-07. Do not modify.
To tell the 6100 Plus unit that there is more than 1 scanner in use, press the [↓] arrow on
the keypad so the backlit box is to the right of 'Select Scanner number:'. Use the [UP] or
[DOWN] function key then [ENTER] to select the total number of scanners (1-8) in use.
Use the [EXIT] key to exit Scanner Setup and return to Option Menu.
2.3.2.4
If the optional PRINTER interface is installed, use PRINT to select when and what the
Guardian 6100 Plus instrument should print. To access Print Setup, enter the Option
menu by pressing [MENU], [2] and then the function key [PRINT]. The backlit box is
next to 'Print On'. Use the function keys to select print functions ON/OFF. The default
value is OFF. Use the [↑] or [↓] arrow to move backlit box to next print function. Refer
to ¶ 3.4 for a sample printout.
Page 44 of 177
www.valuetronics.com
Scanner
SCANNER SETUP
Scanner type is: 6000-07
Select scanner number: 1
You can use function key
to select.
SCANNER SETUP
Scanner type is: 6000-07
1
Select scanner number:
You can use function key
to select.
Print
PRINT SETUP
Print on:
Pass
Fail
Print:
Result
Part No.
Lot No.
Serial No.
MODIFY
EXIT
Remote Lock Offset Error
UP
DOWN
EXIT
Remote Lock Offset Error
UP
On/Off
On/Off
DOW N
On/Off
On/Off
On/Off
EXIT
On/Off
Remote Lock Offset Error
150799 Rev A3
The backlit box is next to
Type
6000-07
Number
1 - 8
Operation
