Earth Leakage: Connection to DUT

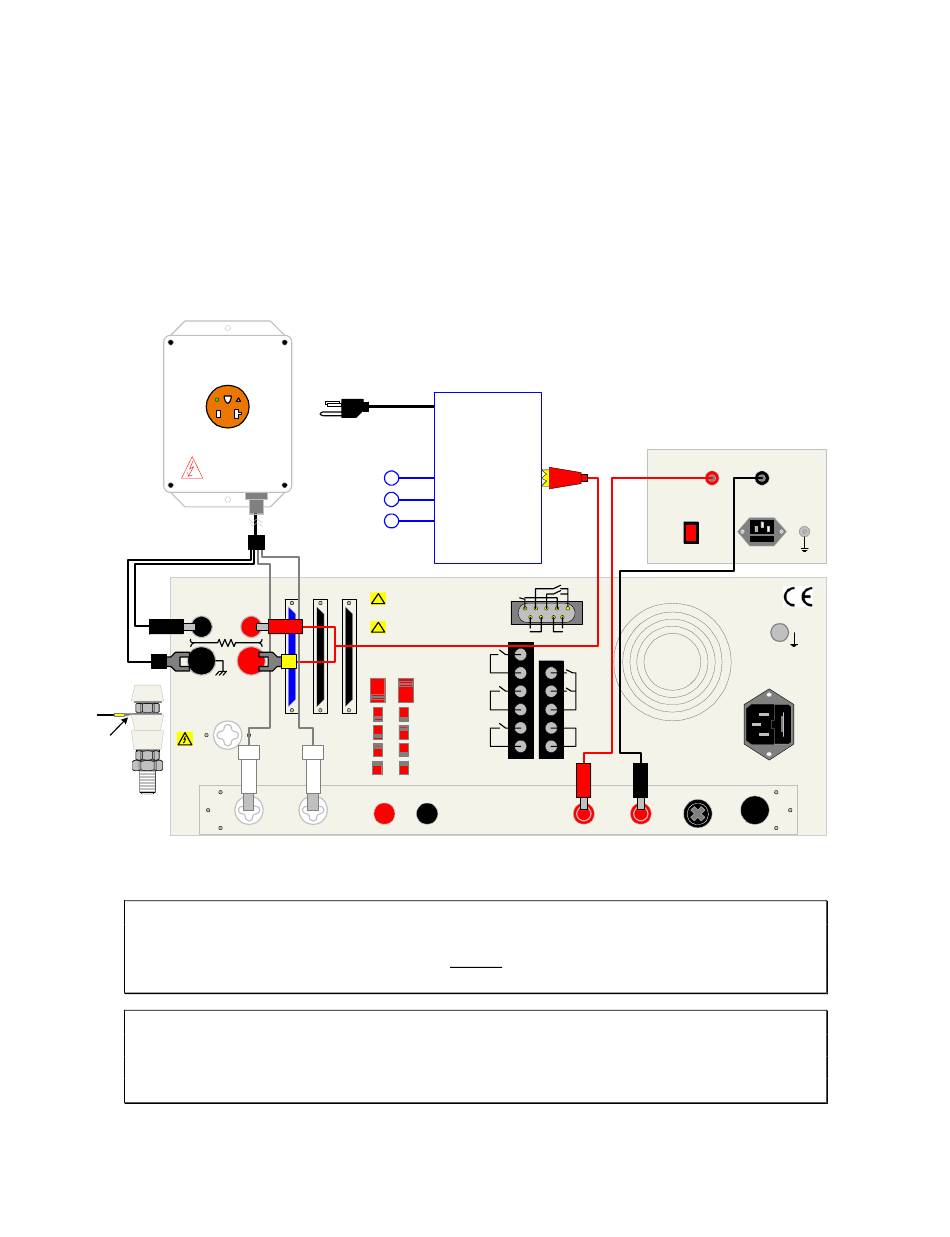

Figure 2-12b illustrates the connection of the Guardian 6100 Plus for an Earth Leakage
Current test. Connect the G32 Isolation Transformer to the 6000-07 LINE INPUT
terminals (L-IN and N-IN). Connect the black leads of the G30 Corded Product Adapter
to the black (low) SENSE and DRIVE "Optional Rear Output Terminals" of the G6100.
Connect the red leads of the G30 to the white L-OUT and N-OUT terminals on the 6000-
05. Connect the G15 red lead between the red (high) SENSE and DRIVE terminals and
PE (protective earth) on the DUT. Plug the DUT into the G30 Corded Product Adapter.
QuadTech
G30
Corded
Product
Adaptor DO NOT TOUCH WHILE
*
DRIVE+ and DRIVE- Output Terminals
Add bolt and screw SPADE
between bolt and second
connector
HIGH VOLTAGE
MAX 5kVAC
SPADE lug
For High Current Ground Bond Testing, make the connection to the DRIVE+ and
DRIVE- terminals with the spade lug behind the nut. Use the Bushing Driver Tool
The L-IN and N-IN inputs require a fully isolated voltage source. The QuadTech G31 or
G32 Isolation Transformers are highly recommended although other "isolated" voltage
Page 86 of 177
