Leakage Current – Connection Using In-Rush Protection
When using the Guardian 6100 Plus with a device that may have high in-rush current the
isolation transformer should be connected using In-Rush Protectors as shown in Figure
2.11.
The In-Rush Protector (QuadTech part number 800184) is a standard accessory included
with the 6100 Plus instrument. It includes a quantity of two protectors. These should be
inserted in series between the isolation transformer power output leads and the L-IN and
N-IN connections of the G6100 Plus. These protectors are applicable to the
connections shown in Figures 2-12b, 2-13b, 2-14b and 2-15b.
G6100 Plus
GB FLOATING
HIGH VOLTAGE
MAX 5kVAC
6kVDC
Page 84 of 177
www.valuetronics.com
GPIB
SCAN
RS232
!
SENSE
!
DRIVE
HV OUTPUT
N-OUT (CH-1)
L-OUT (CH-1)
PATIENT PROBE

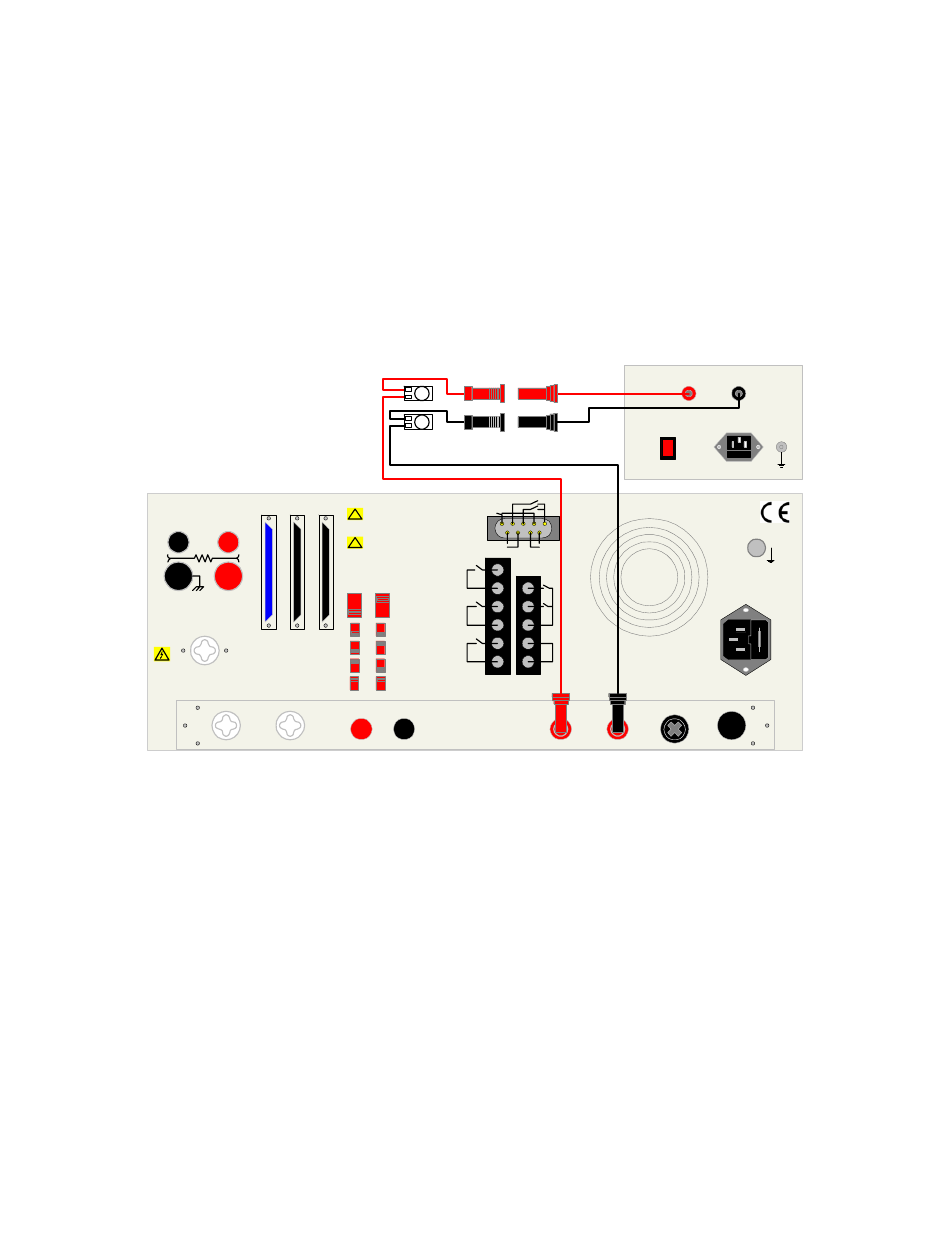

Figure 2-11: Connection for Leakage Current Measurements
800184: In Rush Protector
UNDER
WARNING
TEST
CAUTION
PASS
FAIL
UNDER
TEST
PASS
100V
120V
FAIL
220V
REMOTE
REMOTE
240V
OUTPUT
INPUT
6000-07
#1
#2
HIPOT / LINE LEAKAGE
SCANNER
FUSE RATING
T20A / 250V
Using In-Rush Protection
150799 Rev A3
G32: 1000VA Isolation Transformer
ISOLATING OUTPUT
LINE INPUT VOLTAGE
DUT POWER
SELECTOR
90V - 132V~
T10.0A 250V
198V - 250V~
T5.0A 250V
115V~/230V~
50/60Hz 1200VA MAX
SINGLE PHASE
RESET
START
FAN
50
o
C AUTO
ON/OFF
START
RESET
COM
INTER
LOCK
LINE INPUT
INPUT FUSE
N-IN
L-IN
FUSE RATING
100/120V T8A 250V
220/240V T4A 250V
Operation
