Connector pin assignment/bus termination/line

The CAN connection is physically designed according to the ISO 11898 standards
(CAN High-Speed).
S1
The factory setting for the bus termination is OFF.
As an alternative, this is also possible via corresponding switching in the bus connec-
tion plugs.
NOTE
Make absolutely sure that only one of the two possibilities for the bus termination is
used and the bus termination is only switched on with the first and last subscriber.
Otherwise, operation of the CANopen
Controller State is displayed via actual value parameter
Pin
Housing Shield
1
2
3
4
5
6
7
8
9
The drilled and shielded line is to be used for the bus line. The shield is to be imple-
mented as a harness shield (not a film shield).
NOTE
Connect the line screen with PE at both ends.
26
X310
data line
data line
Bus plug X310
Name
connected with PE
CAN_L CAN Low bus interface,
short-circuit resistant and function-insulated,
max. current 60 mA
CAN_L CAN Low bus interface,
short-circuit resistant and function-insulated,
max. current 60 mA
CAN_GND Earth/GND
n.c. not used
n.c. not used
CAN_GND Earth/GND
CAN_H CAN High bus interface,
short-circuit resistant and function-insulated,
max. current 60 mA
CAN_H CAN-High Bus-interface,
short-circuit resistant and function-insulated,
max. current 60 mA
- Do NOT connect.

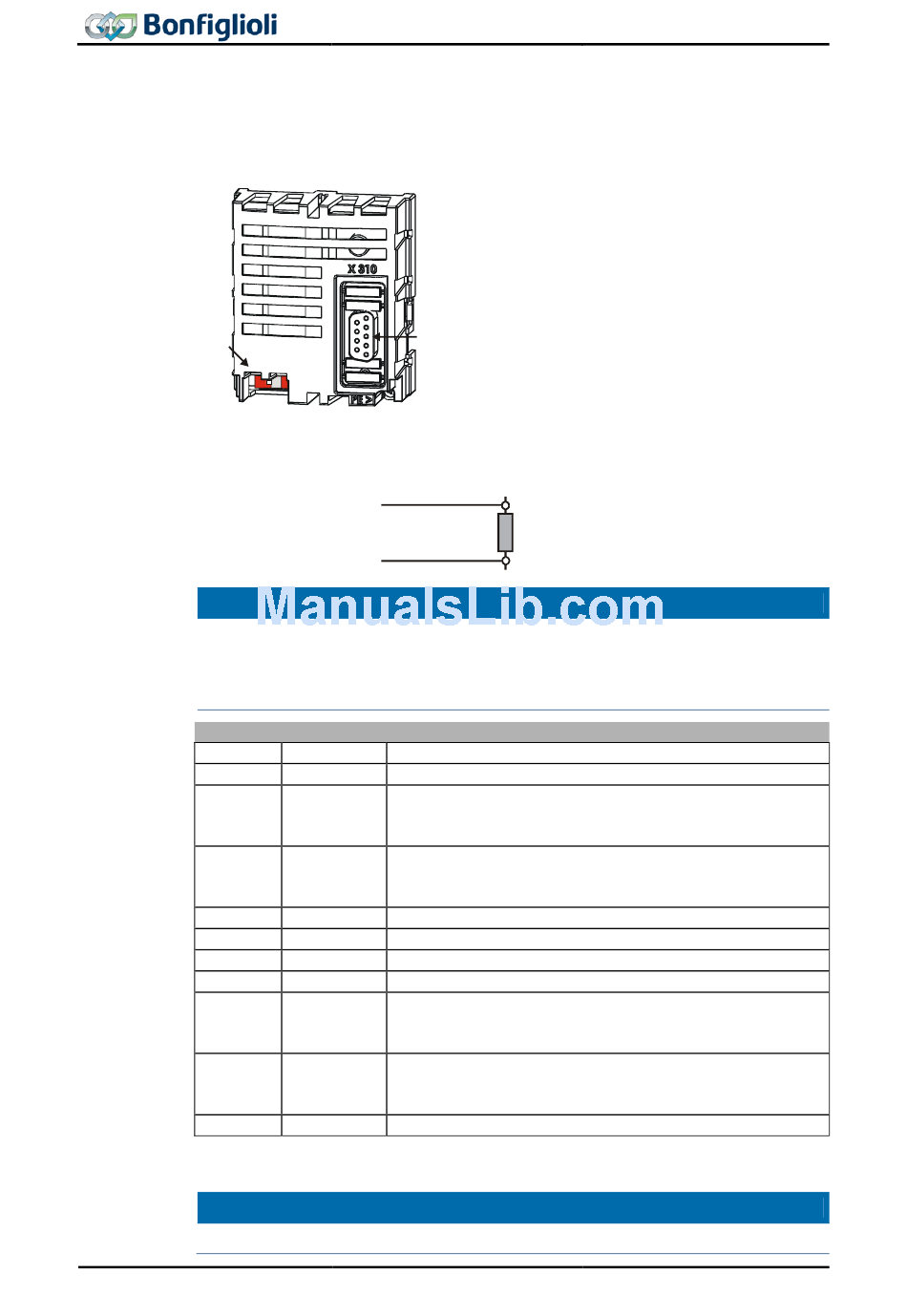

CM-CAN ACU
The X310 (9-pole Sub-D) bus plug has been
designed according to DS102 Version 2.0 (Bus
node, option A).
Details can be seen from the following table on
the occupancy of the bus plug.
The bus termination necessary on a phase in the
physically first and last subscriber can be acti-
vated via DIP switch S1 on the communication
module.
CAN high (Pin 7)
120 Ω
CAN low (Pin 2)
®
communication is not possible. The CAN
CAN-State
Function
