5.2

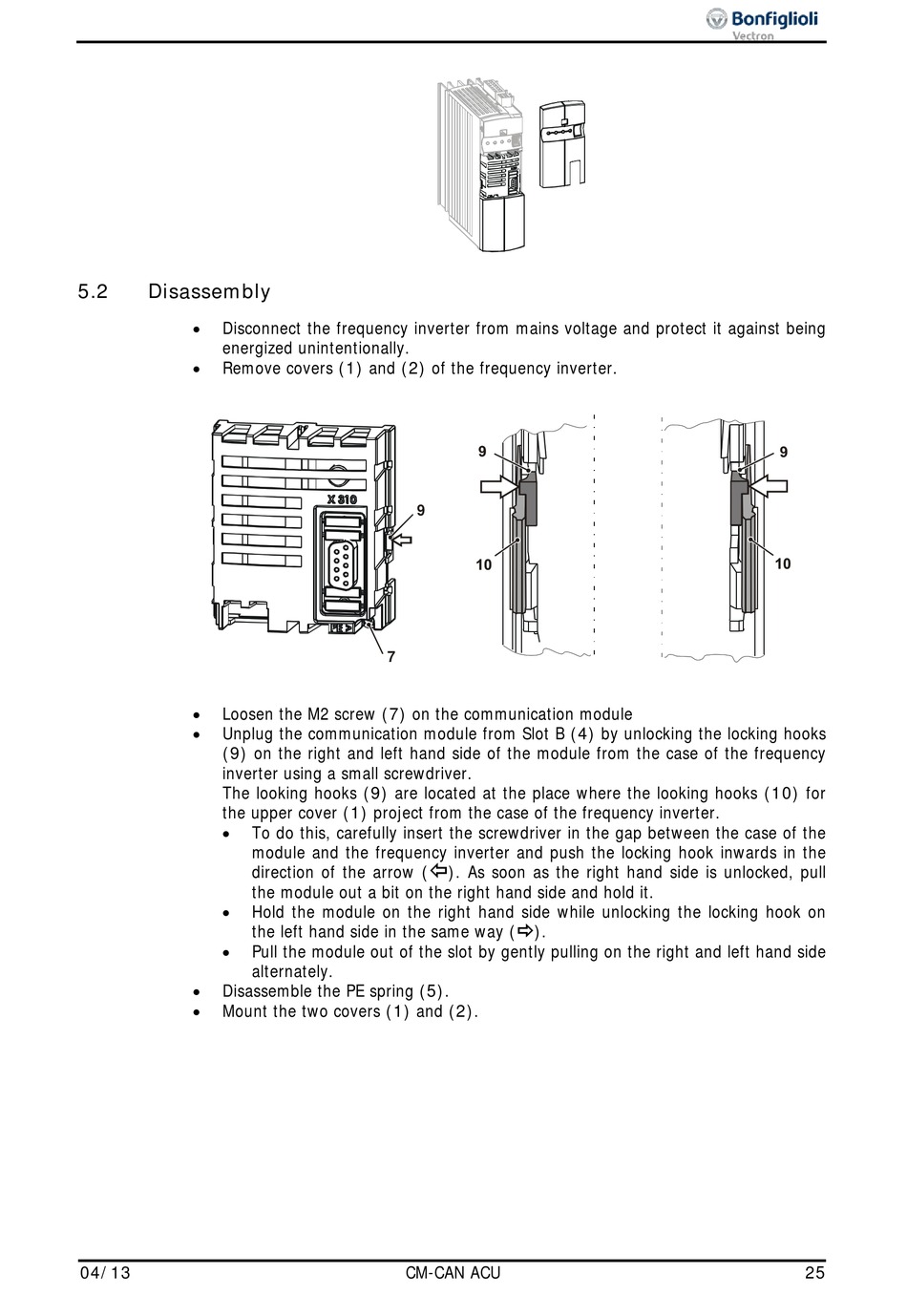

Disassembly

• Disconnect the frequency inverter from mains voltage and protect it against being
energized unintentionally.
Remove covers (1) and (2) of the frequency inverter.
•
Loosen the M2 screw (7) on the communication module
•
Unplug the communication module from Slot B (4) by unlocking the locking hooks
•
(9) on the right and left hand side of the module from the case of the frequency
inverter using a small screwdriver.
The looking hooks (9) are located at the place where the looking hooks (10) for
the upper cover (1) project from the case of the frequency inverter.
•
•
•
Disassemble the PE spring (5).
•
Mount the two covers (1) and (2).
•
04/13
9
7
To do this, carefully insert the screwdriver in the gap between the case of the
module and the frequency inverter and push the locking hook inwards in the
direction of the arrow (
the module out a bit on the right hand side and hold it.
Hold the module on the right hand side while unlocking the locking hook on
the left hand side in the same way (
Pull the module out of the slot by gently pulling on the right and left hand side
alternately.

CM-CAN ACU


). As soon as the right hand side is unlocked, pull
 ).
