Installation/Disassembly of the communication module

5.1

Installation

The communication module CM-CAN is pre-assembled in a case. Additionally, a PE
spring is enclosed for PE connection (shield).
Caution!
Danger of desytroying the frequency inverter and/or the communication
module
•
•
Work steps:
Disconnect the frequency inverter from the mains voltage and protect it against
•
being energized unintentionally.

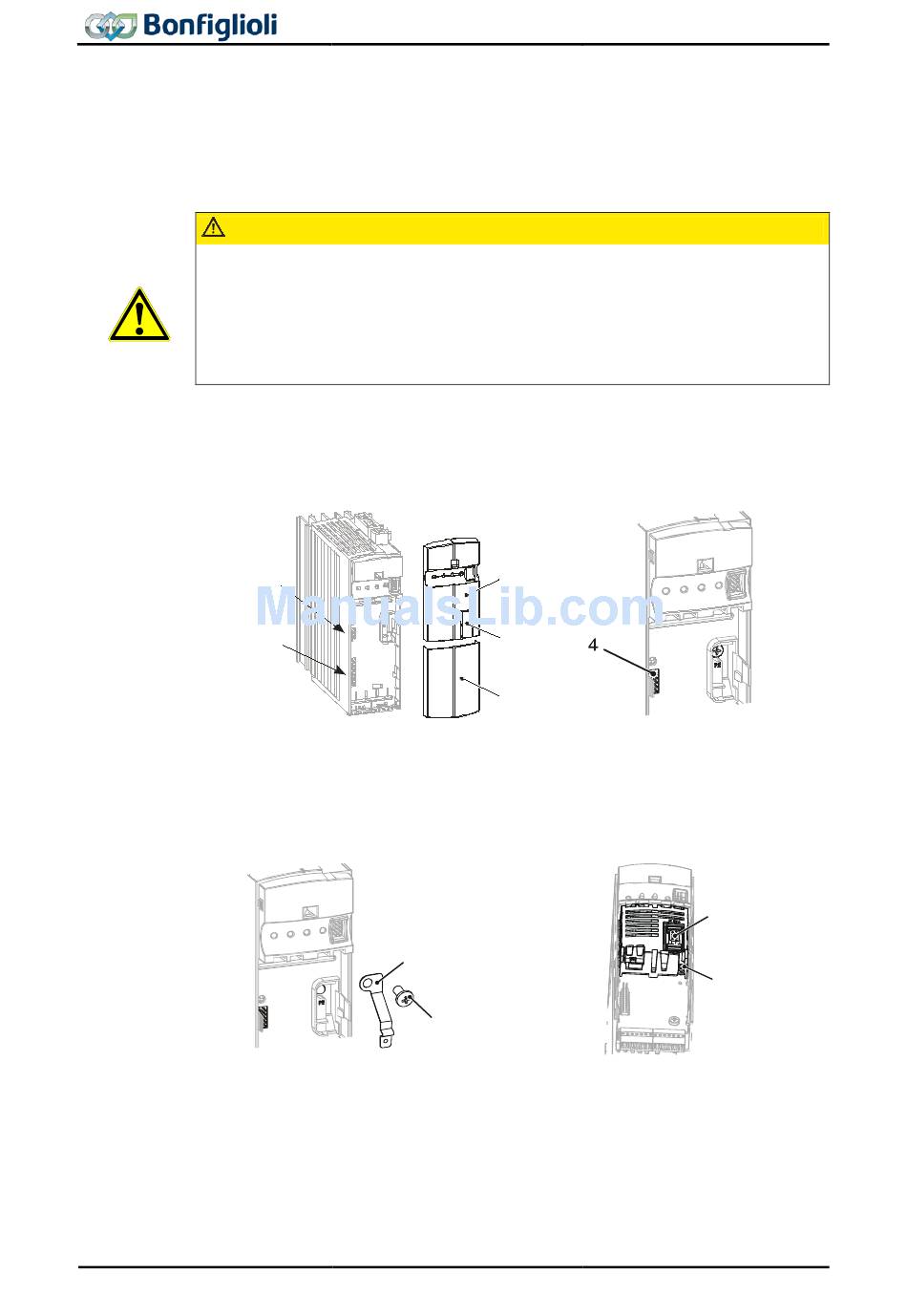

Remove covers (1) and (2) of the frequency inverter. Slot B (4) for the commu-
•
nication module is now accessible.
Slot B
Slot A
Mount the supplied PE spring (5) using the M4 screw (6) in the unit. The spring
•
must be aligned centrally.
Insert the communication module in slot B (4) until it engages audibly.
•
Fix the communication module by screwing the M2 screw (7) of the module to the
•
PE spring (5).
In the upper cover (1), break out the pre-punched cutout (3) for the plug X310
•
(8).
Mount the two covers (1) and (2).
•
24
The frequency inverter must be disconnected from the power supply before
installation of the communication module. Assembly under voltage is not
permissible.
Do not touch the PCB visible on the back of the module, otherwise compo-
nents may be damaged.
5
(M4)
CM-CAN ACU
1
3
2
6
8
7
(M2)
