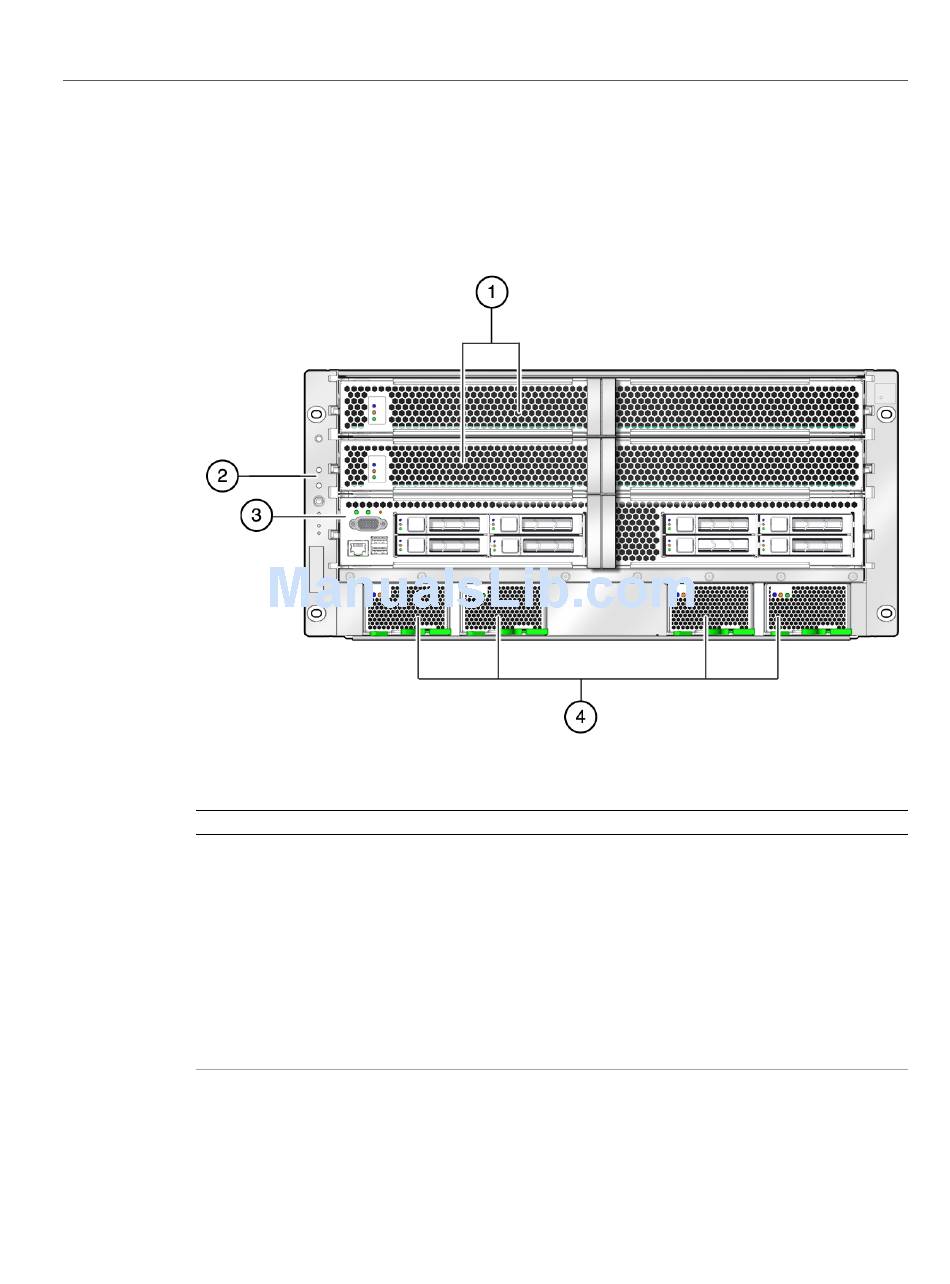

Front Panel Components (Service)

Front Panel Components (Service)
No.
1
2
3
4
14 SPARC T7-4 Server Service Manual • May 2017
Description
Processor modules (slots 0 and
1) or processor filler module
(slot 1 only)
Control panel
Main module
Power supplies (4)
Links
"Processor Module Components" on page 19
"Servicing Processor Modules" on page 55
"Detecting and Managing Faults" on page 25
"Preparing for Service" on page 43
"Returning the Server to Operation" on page 201
"Main Module Components" on page 20
"Servicing the Main Module" on page 99
"Servicing Power Supplies" on page 147
