DLSw Test Configuration
Example
VERVIEW
Network requirements
Use the NQA DLSw function to test the response time of the DLSw device.
Network diagram

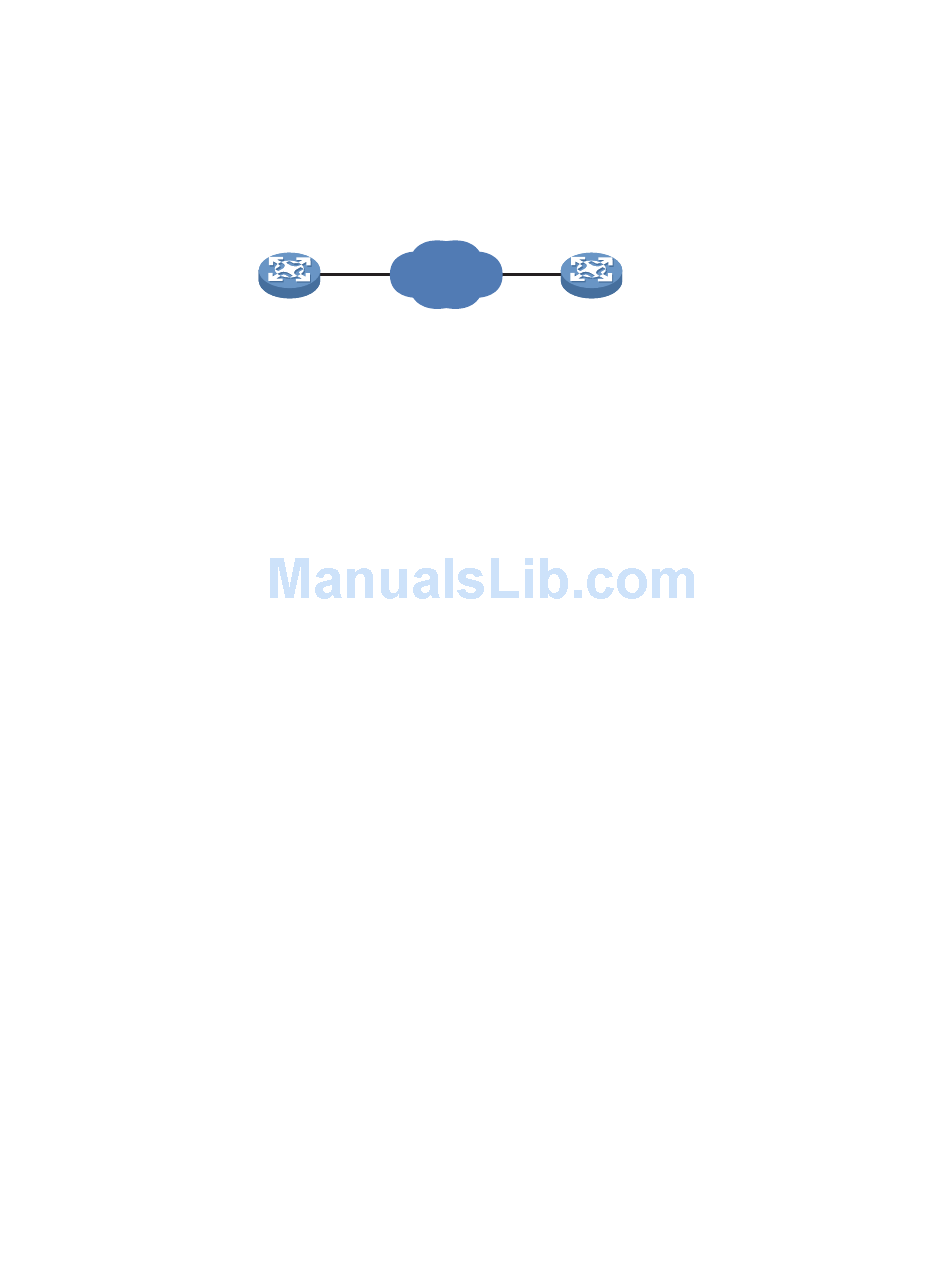

Figure 606 Network diagram for the DLSw test
NQA client
10 .1.1.1/16
Device A
Configuration procedure
# Create a DLSw test group and configure related test parameters.
<DeviceA> system-view
[DeviceA] nqa entry admin test
[DeviceA-nqa-admin-test] type dlsw
[DeviceA-nqa-admin-test-dlsw] destination ip 10.2.2.2
[DeviceA-nqa-admin-test-dlsw] quit
# Enable the DLSw test.
[DeviceA] nqa schedule admin test start-time now lifetime forever
# Display results of one DLSw test.
[DeviceA] display nqa result admin test
NQA entry(admin admin, tag test) test results:
Destination IP address: 10.2.2.2
Send operation times: 1
Min/Max/Average round trip time: 19/19/19
Square-Sum of round trip time: 361
Last succeeded probe time: 2007-03-27 15:32:48.5
Extend results:
Packet lost in test: 0%
Failures due to timeout: 0
Failures due to disconnect: 0
Failures due to no connection: 0
Failures due to sequence error: 0
Failures due to internal error: 0
Failures due to other errors: 0
DLSw
10 .2 .2.2/16
IP network
Device B
Receive response times: 1
