2360 C 136: H.323 C
HAPTER
Opening/Closing Logical
Channel(s)

Complete Release

Disconnection

H.323 Gateway
Configuration
Configuring Basic H.323
Gateway Functions
ONFIGURATION
The two endpoints open one or more logical channels between them for
transporting media streams. (The logical channels are specified by IP address plus
port number.)
These channels are closed when the communication is over.
Finally, either endpoint in communication can release resources by sending a
release complete message.
The endpoints each send a Disconnect_Request (DRQ) to their own gatekeepers,
which will confirm or reject the request. The gatekeepers, however, may send a
DRQ to the endpoints. In this case, the endpoints can only confirm the request.

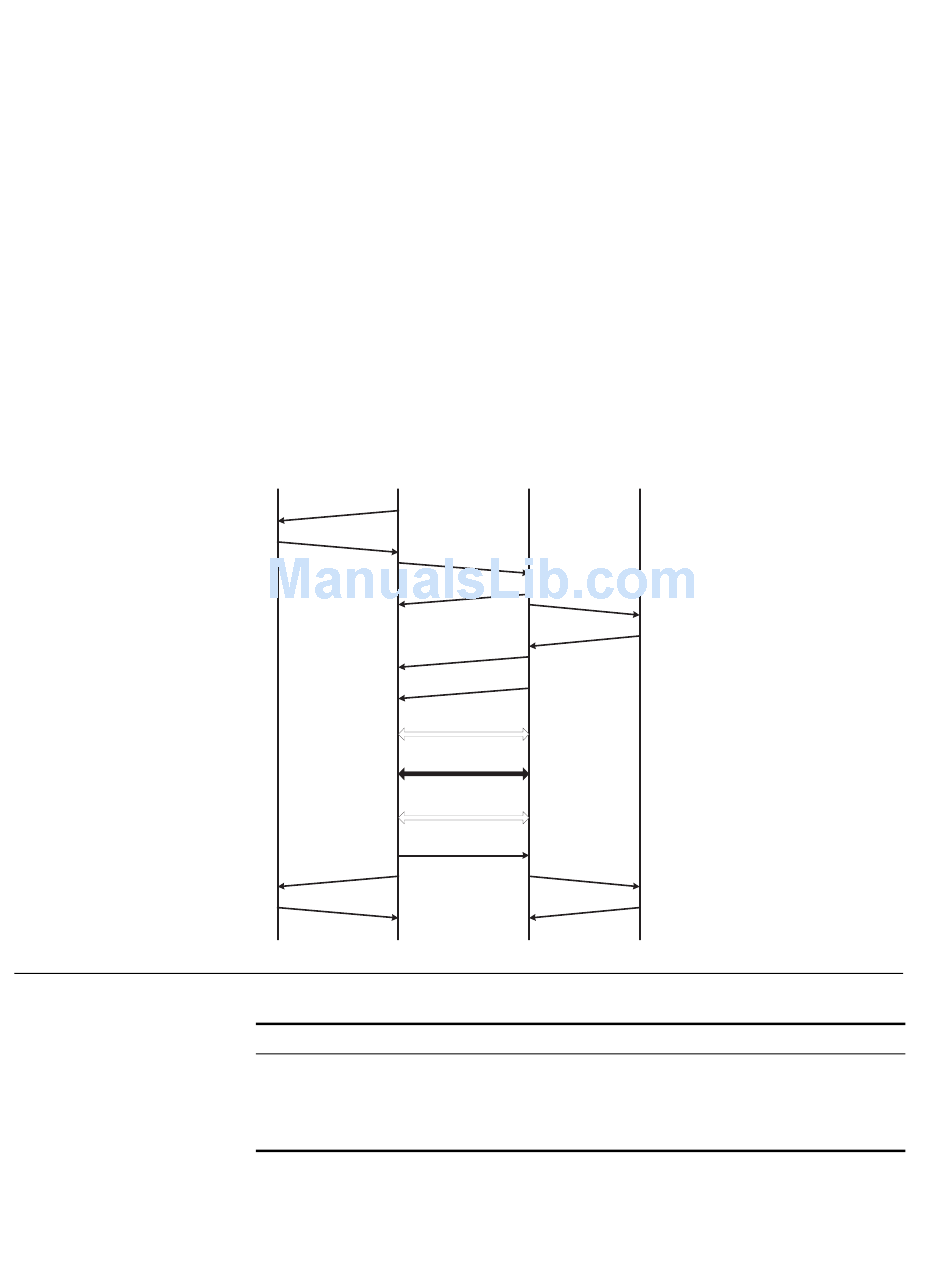

Figure 684 shows the call setup flow and disconnection flow in which gatekeepers
are involved.
Figure 684 Call setup flow and disconnection flow in which gatekeepers are involved
GateKeeper 1 Endpoint 1
ARQ(1)
ACF/ARJ(2)
DRQ(13)
DCF/
DRJ(14)
Complete these tasks to configure the H.323 gateway:
Task
"Configuring Basic H.323 Gateway Functions" on
page 2360
"Configuring Registration Password" on page 2361
"Configuring Security Calling" on page 2362
Configuration prerequisites
Complete the required configuration of POTS and VoIP voice entities.
Endpoint 2
Setup(3)
Call proceeding(4)
ARQ(5)
ACF/ARJ(6)
Alerting(7)
Connect(8)
Open Logical Channel(9)
RTP(10)
Close Logical Channel(11)
Release Complete(12)
DRQ(13)
DCF/
DRJ(14)
GateKeeper 2
Remarks
Required
Optional
Optional
