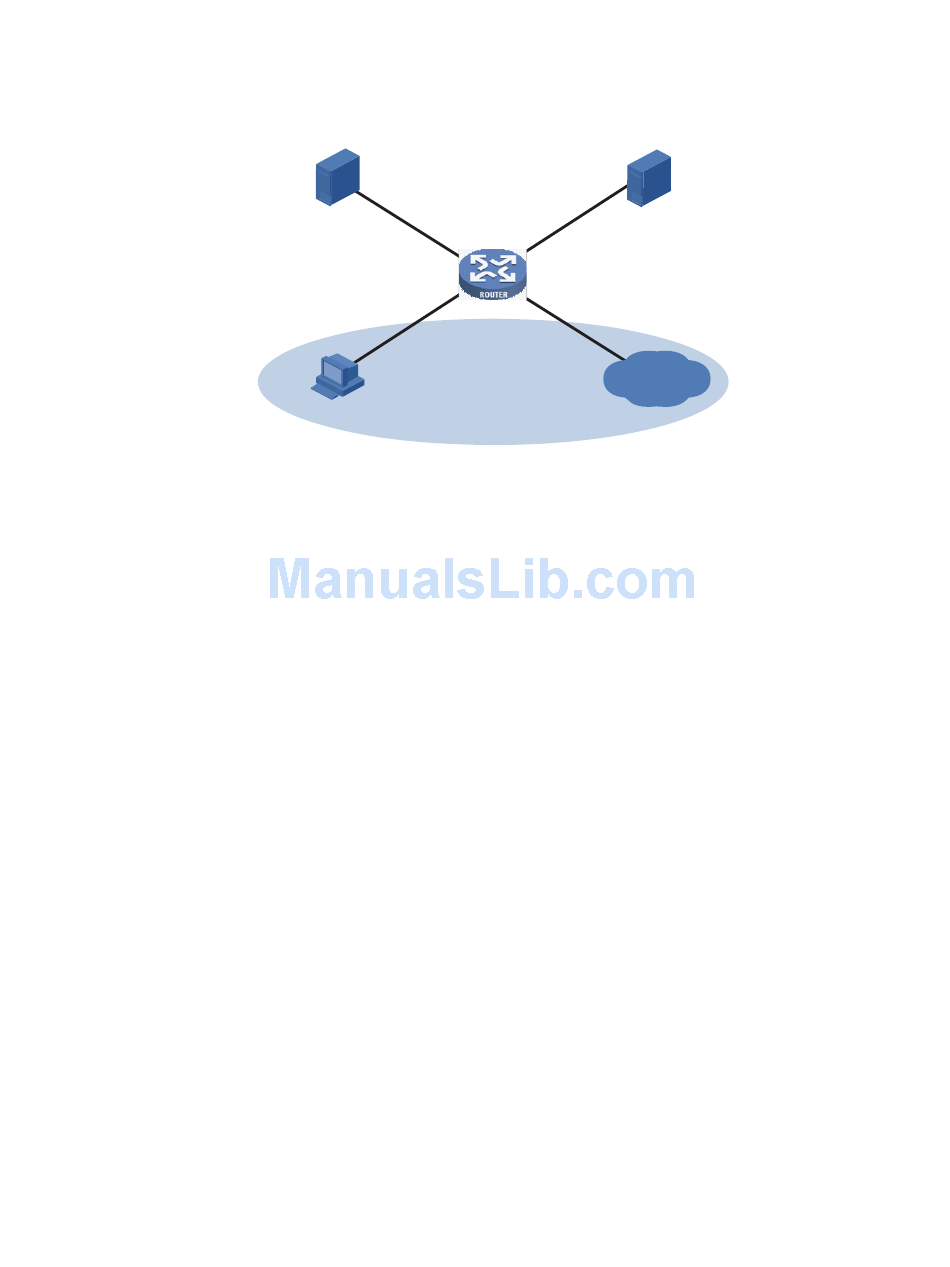

Figure 510 Network diagram when the supplicant passes authentication
Update
server
Supplican
t
Configuration procedure
# Configure RADIUS scheme 2000.
<Sysname> system-view
[Sysname] radius scheme 2000
[Sysname-radius-2000] primary authentication 10.11.1.1 1812
[Sysname-radius-2000] primary accouting 10.11.1.1 1813
[Sysname-radius-2000] key authentication abc
[Sysname-radius-2000] key accouting abc
[Sysname-radius-2000] user-name-format without-domain
[Sysname-radius-2000] quit
# Configure domain system and specify to use RADIUS scheme 2000 for users of
the domain.
[Sysname] domaim system
[Sysname-isp-system] authentication default radius-scheme 2000
[Sysname-isp-system] authorization
[Sysname-isp-system] accounting default radius-scheme 2000
[Sysname-isp-system] quit
# Enable 802.1x globally.
[Sysname] dot1x
# Enable 802.1x for port Ethernet 1/1.
[Sysname] interface ethernet 1/1
[Sysname-ethernet1/3] dot1x
# Set the port access control method to portbased.
[Sysname-ethernet1/1] dot1x port-method portbased
# Set the port access control mode to auto.
[Sysname-ethernet1/1] dot1x port-control auto
VLAN 10 VLAN 2
Eth 1/0 Eth 1/3
VLAN 5 VLAN 5
Eth 1/1 Eth 1 /2
Router
VLAN 5
Authenticator
server
Internet
default radius-scheme 2000
