Configuring the Match
Order for Voice Entity
Selection
C
LAN ONFIGURATION
[RouterA-voice-dial-entity1010] line 1/0
[RouterA-voice-dial-entity1010] send-number all
# Configure a local port Line 1/1.
[RouterA-voice-dial-entity1010] quit
[RouterA-voice-dial] entity 2010 pots
[RouterA-voice-dial-entity2010] match-template ....
[RouterA-voice-dial-entity2010] line 1/1
[RouterA-voice-dial-entity2010] send-number all
Network requirements
Two telephones connected to Router A can make PSTN calls via two trunk voice
gateways (Router B and Router C) and the trunk lines of these two trunk voice
gateways should be fully utilized.
Network diagram

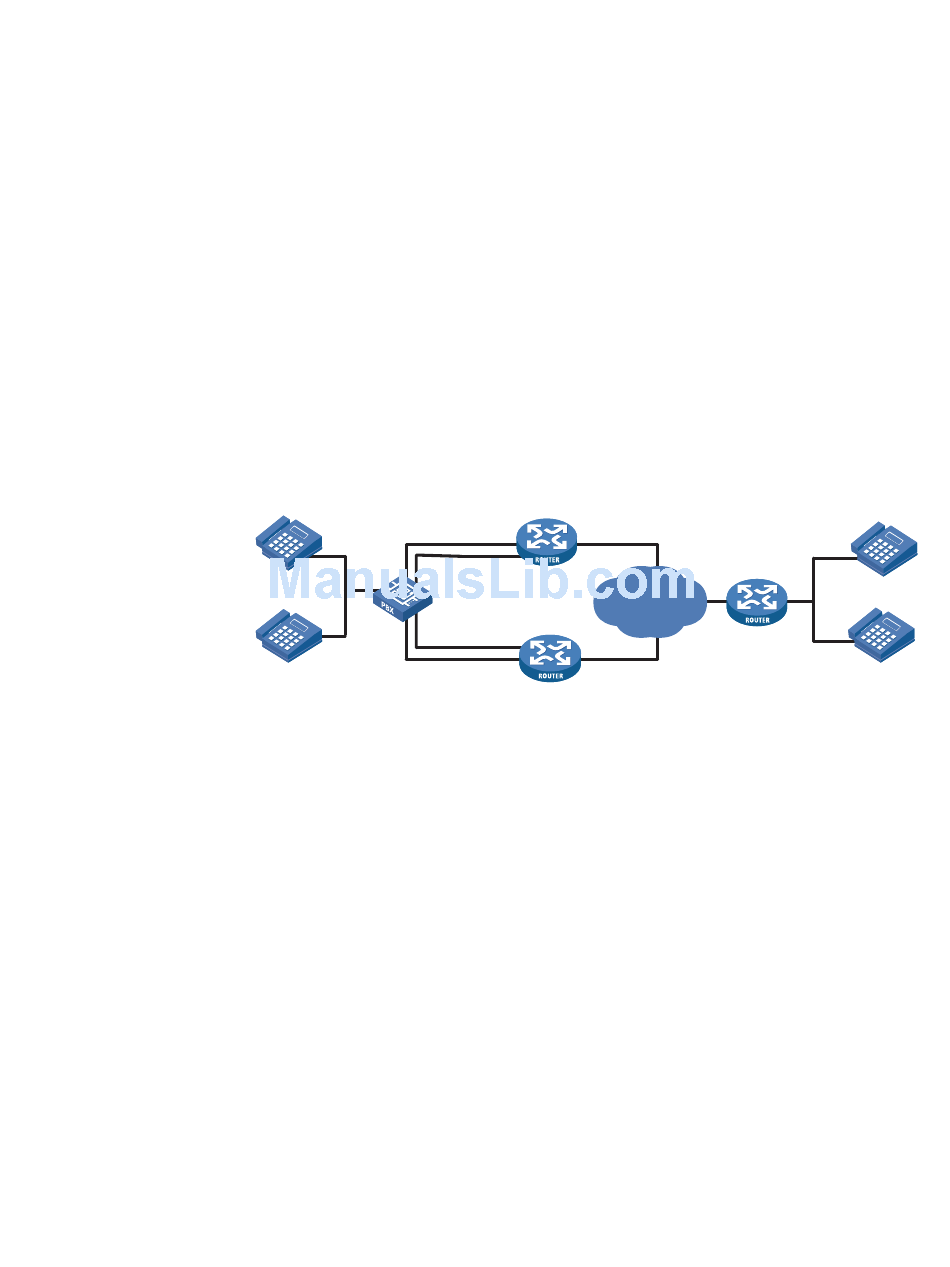

Figure 668 Network diagram for match order configuration for voice entity selection
010- 1234
PBX
010- 1235
Configuration idea
The select-rule rule-order 1 4 command can implement load sharing. Since the
first rule "exact match" cannot distinguish the priority between Router B and
Router C, Router A will use the fourth rule "longest idle time" to ensure that the
resources of the two gateways are fully, equally utilized.
Configuration procedure
Configuration on Router A
■
# Configure an Ethernet address.
<RouterA> system-view
[RouterA] interface ethernet 2/0
[RouterA-Ethernet] ip address 1.1.1.1 24
# Configure VoIP entities that respectively originate calls to Router B and Router C.
[RouterA] voice-setup
[RouterA-voice] dial-program
[RouterA-voice-dial] entity 2000 voip
[RouterA-voice-dial-entity 2000] match-template 010....
[RouterA-voice-dial-entity 2000] address ip 1.1.1.2
[RouterA-voice-dial-entity 2000] quit
[RouterA-voice-dial] entity 2001 voip
Eth2/0
1.1.1.3/24
FXO line 1/0
FXO line 1/1
Router C
FXO line 1/0
FXO line 1/1
Eth2/0
1.1.1.2/24
Router B
Router A
WAN
Eth2/0
1.1.1.1/24
1000
1001
