dialer rotary-group dialer 1
interface serial1/2
dialer rotary-group d1
3. The examples of dialing to one or multiple points with dialer map

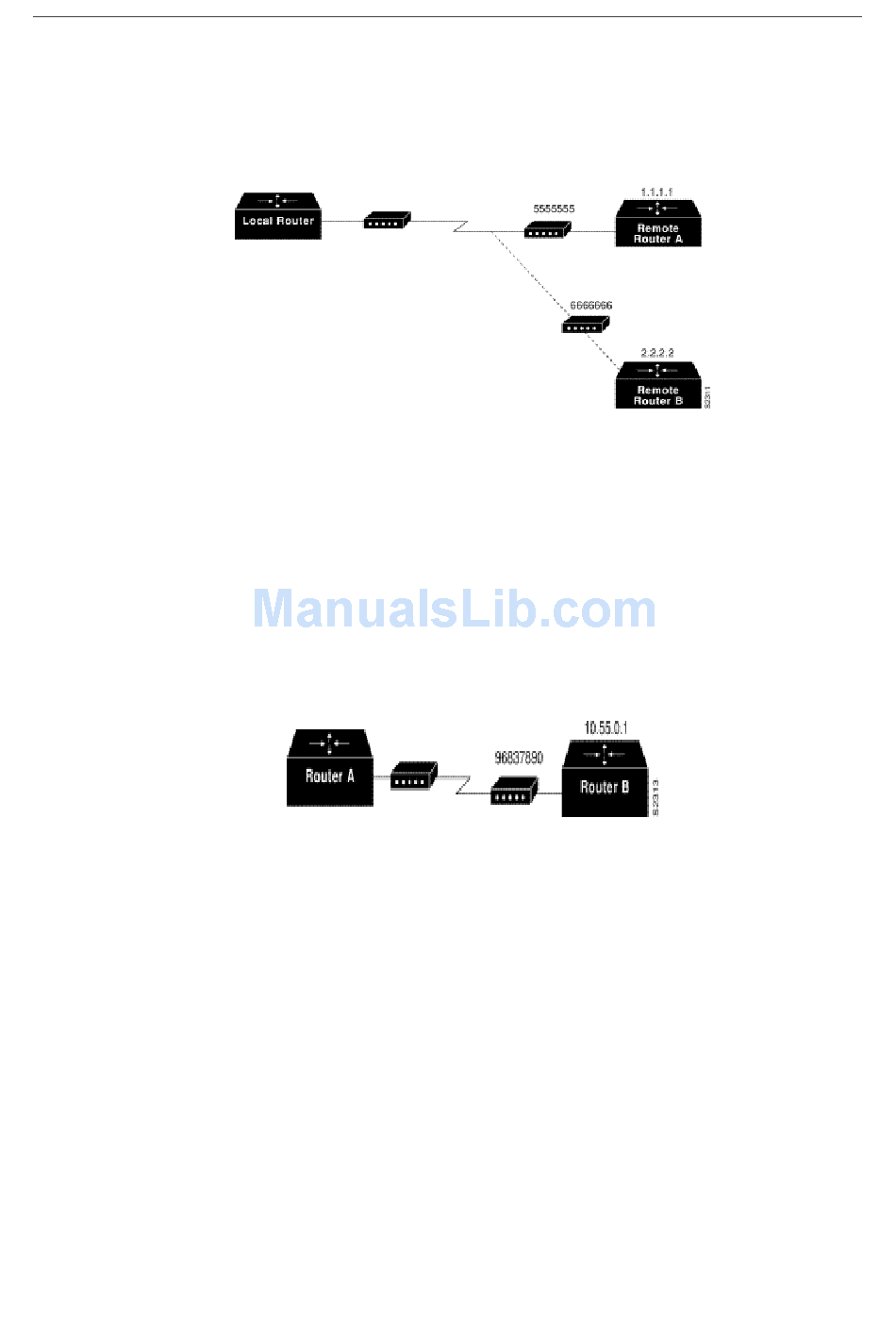

as the following figure
If local router only need dial to Router A, you can use command dialer string configure 55555555 to the
dialer string, the configuration is described as follows:
interface serial1/1
dialer string 5555555
If local router need dial to multiple points, you must configure dialer map. Otherwise, the router can't
distinguish the dialer number of the different destinations. The configuration is described as follows:
interface serial 1/1
dialer map 1.1.1.1 5555555
dialer map 2.2.2.2 6666666
10.5.12 Script Configuration Example
Router A need dial to Router B
chat-script dial ABORT ERROR "" "AT Z" OK "ATDT \T" TIMEOUT 30 CONNECT \c
interface async 0/0
dialer map 10.55.0.1 modem-script dial 96837890
Script Example:
Dialer script is not only to use for launch calling to Modem, but also to use for automatic register to the
remote DTE after dial-on. Thus, the dialer script can be divided into Modem script and registration script
based on the different targets. The two kind scripts use the same script language but with different
target. The following script language is compatible with UNIX dialer script language, which includes the
following features:
The content of script is capital sensitive, such as ABORT is different character string form abort.
The script consists of some pre-specified keywords and sending/waiting character string sequenced
aggregation. The waiting character string pair start from sending character, except keywords.
The characters that are all included in the double quotation marks(") is treated as a full character string.
Separate the character string by space.
Automatic attaching an Enter symbol for each sending character string, except ending as \c.
The match method of receiving content and waiting character string is random.
