Chapter 2
System Adjustments
11. Press Menu until CALIBRATE CTRL displays.
12. Press ↓ until Media Profile / Profile Print displays and then press
SLPA will continue to print the profile until you press
The SLPA will advance media and continue to print a dynamic profile
image depicting the relationship of the label and any label length
indicators detected.
13. Press
14. Press Menu until GPIO CTRL displays.
15. Press ↓ until GPIO Print&Apply displays.
16. Press + until Enable displays.
17. Press
18. Press the Pause key until OFFLINE displays.
NOTE: The Gap/Mark and Paper Out Threshold values shown on the Profile
255
191
Paper Out(144)
127
Gap Mark(105)
063
000

Running Manual Calibrate

Manual Calibrate should be performed only when the values derived from
Auto Calibrate fail to improve the media sensors' ability to sense label length
indicators on the installed media. You must first enable Admin User in the
PRINTER CONTROL menu before accessing or initializing Manual Calibrate
in the CALIBRATE CTRL menu.
NOTE: Verify the Gap/Mark Sensor option (Gap, Mark, Advanced Gap,
66
↵
. The SLPA will stop printing.
↵
to select Enable. An asterisk (*) appears next to Enable.
printout represent the last values determined from a successful Auto
or Manual Calibrate or the factory default values if no Auto or Manual
Calibrate was performed.

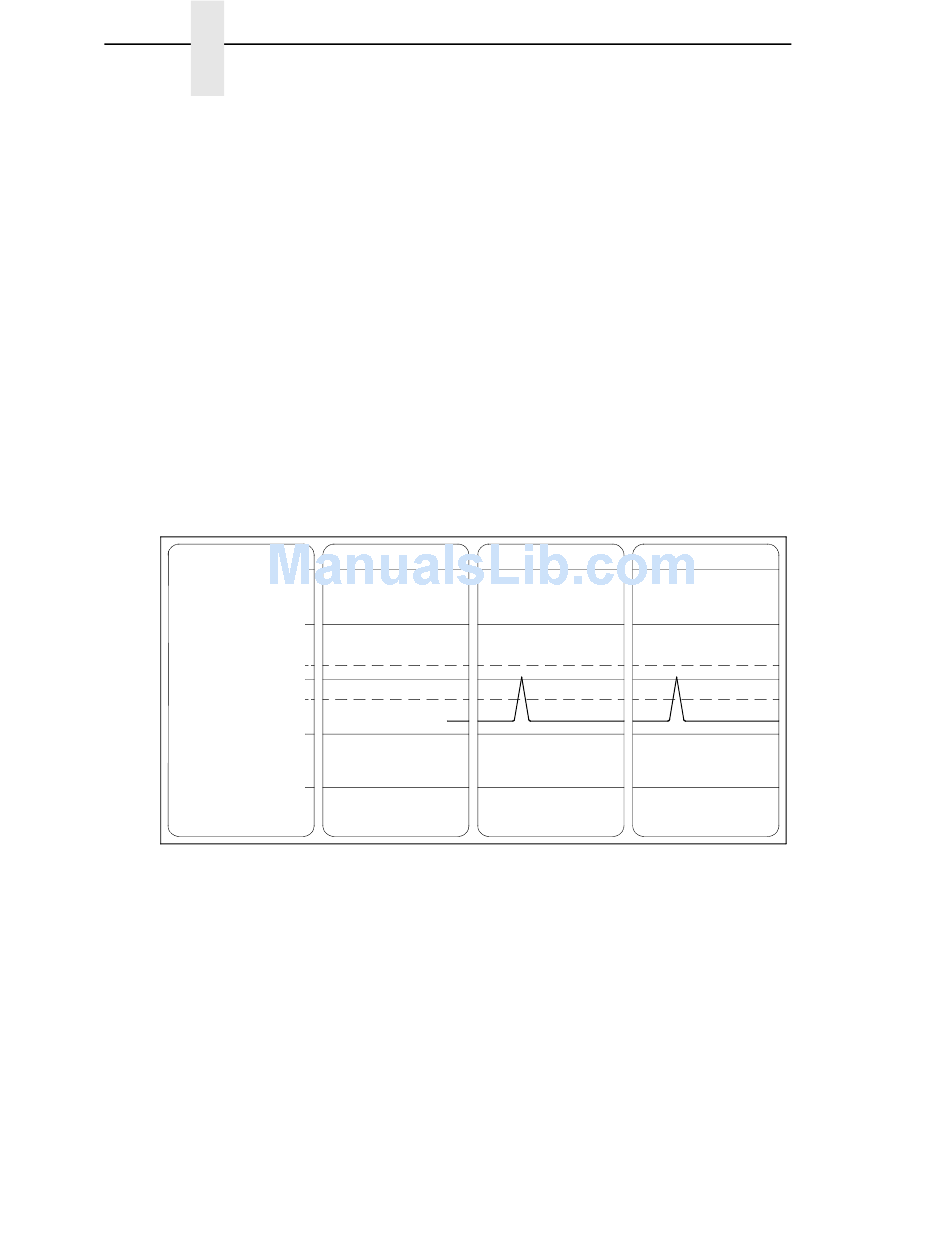

Figure 28. Media Profile Printout
Advanced Notch, or Disable) matches the installed media. See
"Sensing Different Media Types" on page 58.
↵
. (The
↵
.)
