Lower Media
Sensor
Back

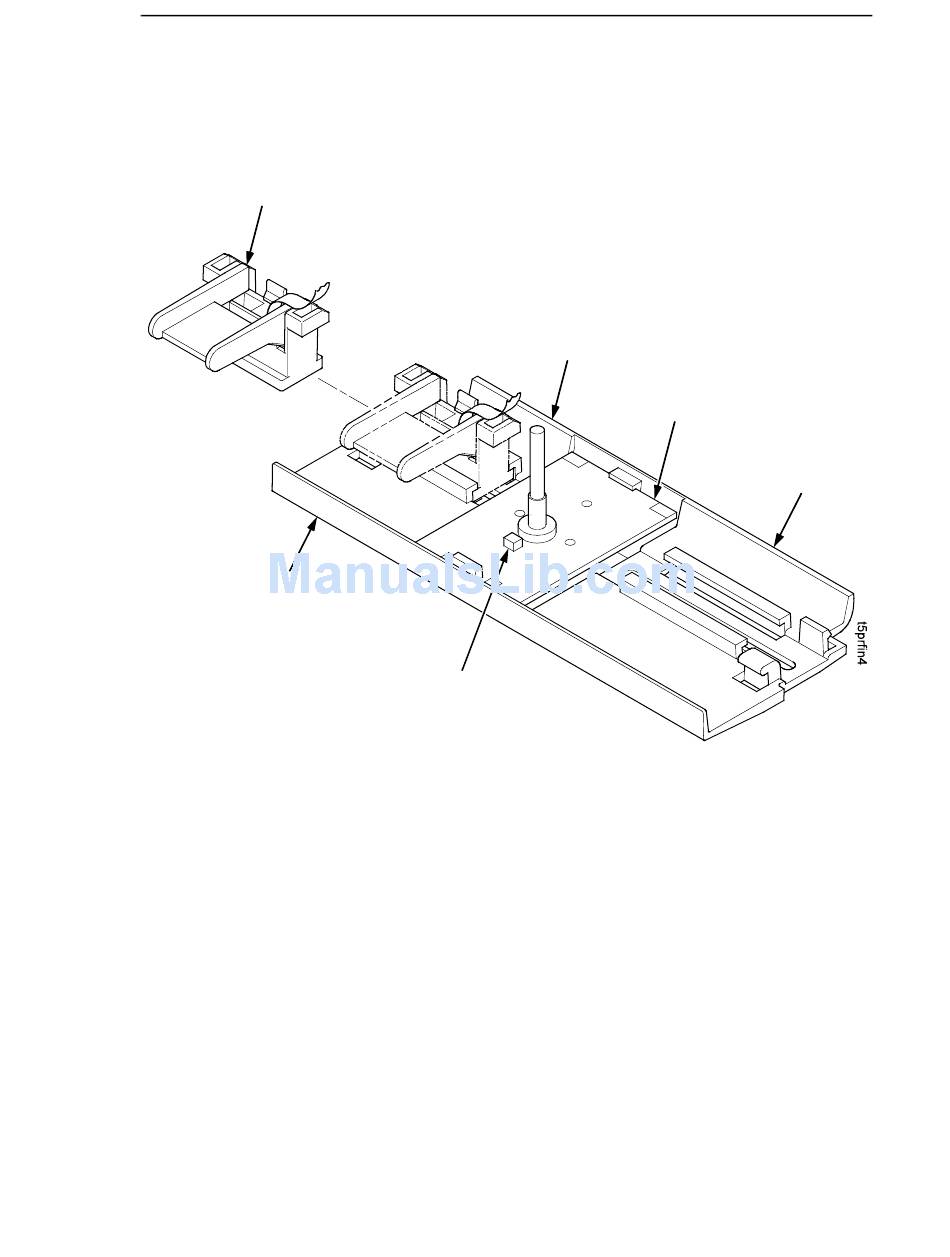

Figure 84. Removing and Installing the Lower Media Sensor
CAUTION
When handling the old media guard, do not disconnect the attached
lower media sensor cable from the controller board.
5. Turn the old media guard over. (Figure 84.)
6. Remove the lower media sensor.
7. Set aside the old media guard and its attached RFID antenna assembly.
CAUTION
When handling the new media guard, do not touch the T1 transformer
located on the RFID antenna assembly.
8. Using the new media guard, install the lower media sensor as shown in
Figure 84.
Replace The RFID Antenna Assembly
Media Guard
(Old and New)
T1 Transformer
RFID Antenna
Assembly
Front
