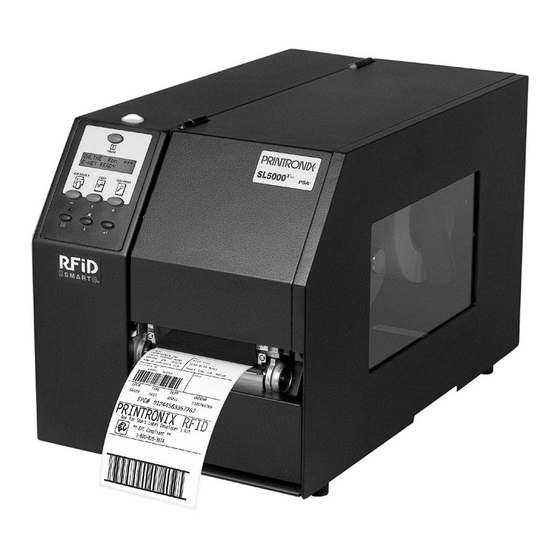

Printronix SL5000r MP Reference Manual

Printronix SL5000r MP Reference Manual

Rfid labeling
Hide thumbs Also See for SL5000r MP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Reference Manual
RFID Labeling Reference Manual
r
™
SL5000
MP and MP2
RFID Smart Label Printers

Advertisement

Table of Contents
loading

Related Manuals for Printronix SL5000r MP

Summary of Contents for Printronix SL5000r MP

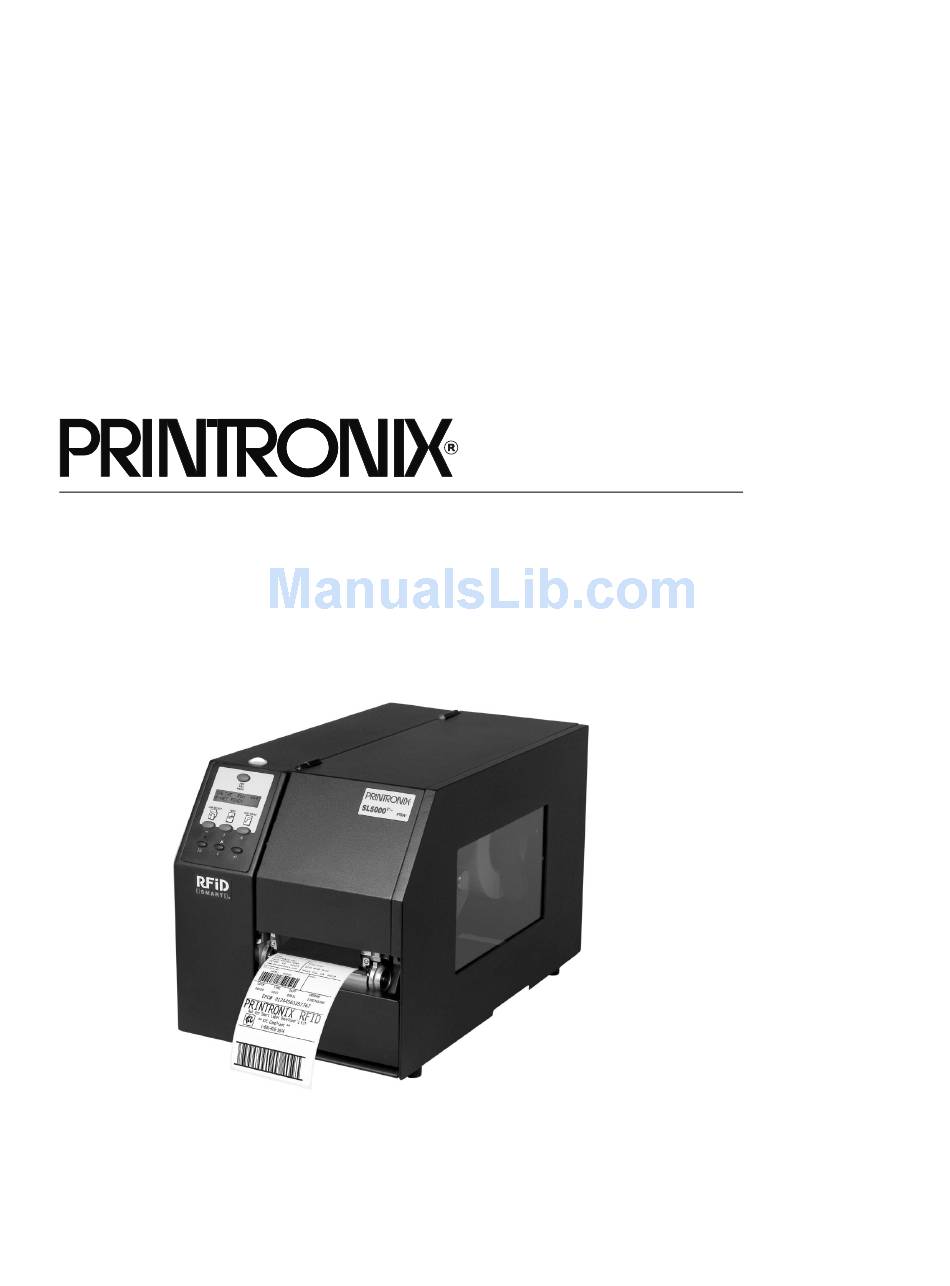

  • Page 1 RFID Labeling Reference Manual ™ SL5000 MP and MP2 RFID Smart Label Printers...
  • Page 3 SL5000 MP and MP2 RFID Smart Label Printers RFID Labeling Reference Manual...
  • Page 4 Printronix makes no representations or warranties of any kind regarding this material, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose. Printronix shall not be held responsible for errors contained herein or any omissions from this material or for any damages, whether direct, indirect, incidental or consequential, in connection with the furnishing, distribution, performance or use of this material.

  • Page 5: Table Of Contents

    Overstruck Smart Labels... 11 Smart Label Characteristics ... 12 Transitioning From UCC/GTIN Applications Using Printronix Software Migration Tools (SMT)... 14 How Printronix Makes It Easy ... 14 How It Works ... 14 Hardware/Infrastructure Considerations ... 15 Contact Information ... 16 Printronix Professional Services ...
  • Page 6 Table of Contents RFID PPI/ZGL Commands ...55 Read Tag ...55 Write Tag ...56 Write or Read RFID Format ...57 Calibrate RFID Transponder Position ...58 Define EPC Data Structure ...58 Enable RFID Motion...59 Specify RFID Retries for a Block...59 RFID Setup ...59 Set RFID Tag Password ...60 Host Verification ...61 PPI/ZGL EPC Programming Examples...61...
  • Page 7 Splitting the EPC... 79 Customer Scenario ... 79 Using The Advanced RFID Calibration... 81 Tag Profiler... 81 Custom Tag Configurator ... 82 Auto Inlay Locater ... 82 Table of Contents...
  • Page 8 Table of Contents...

  • Page 9: Rfid Smart Label Application And Reference Notes

    Printronix SL5000r DK Smart Label Developer's Kit • Printronix SL5000r DK2 Smart Label Developer's Kit • Printronix SL5000r MP Multi-protocol RFID printer, supporting Class 0/0+, Class 1, Class 1.19 RFID, Class Gen 2, and Class Zuma™ RFID tags and labels •...

  • Page 10: Chapter 1 Overview

    The intent of the kit is to provide a complete environment for the printing and encoding of RFID smart labels right out of the box. Printronix has specifically designed this kit to help you fast track your RFID printer application through the use of a suite of Software Migration Tools (SMT).

  • Page 11: What To Expect When Running Your Rfid Application

    Static electricity can damage the smart labels. Open the media cover of the printer and touch an unpainted metal part of the printer before you handle smart labels. This will discharge any static electricity that may have built up on your hands.

  • Page 12: Smart Label Characteristics

    See “How To Order More Smart Labels” on page 16. Supported Tag Types Printronix RFID SL5000 MP and MP2 printers support a number of RFID protocols and coupler configurations. For a list of Certified RFID Smart Labels available from Printronix,...

  • Page 13: Label Size

    • EPC Class 0+ tags – 96 data bits Read/Write NOTE: For EPC Class 0+, Class 1.19, and Class Zuma tags, the AWID multi-protocol reader used by Printronix enforces the EPC format in the following manner: • For 96–bit data, the two most significant bits must be 0.

  • Page 14: Transitioning From Ucc/Gtin Applications Using Printronix Software Migration Tools (Smt)

    Chapter 1 Transitioning From UCC/GTIN Applications Using Printronix Soft- Transitioning From UCC/GTIN Applications Using Printronix Software Migration Tools (SMT) It is likely that your software is already set up to create bar codes. You may have also spent a lot of time creating compliance label templates &...

  • Page 15: Hardware/Infrastructure Considerations

    The existing toolset will meet the needs of many RFID early adopters. If you have a requirement for a Software Migration Tool not included in this kit, feel free to contact Printronix. To select and use the tools, see “Software Migration Tools (SMT)”...

  • Page 16: Contact Information

    Contact Information Contact Information Printronix Professional Services Printronix can partner with you on your RFID pilot project to make your existing software applications RFID/smart label capable. We specialize in smart label print and apply configuration and integration, RFID pilot implementation, and transition from RFID pilots to full production rollouts.

  • Page 17: Corporate Offices

    Printronix Schweiz GmbH 42 Changi South Street 1 Changi South Industrial Estate Singapore 486763 Phone: (65) 6542 0110 Fax: (65) 6546 1588 Visit the Printronix web site at www.printronix.com Corporate Offices (714) 368-2686 (31) 24 6489 311 (65) 6548 4114...

  • Page 18: Useful Industry Web Links

    Chapter 1 Contact Information Useful Industry Web Links Printronix, Inc. www.printronix.com Alien Technology www.alientechnology.com Applied Wireless Identifications Group, Inc. www.awid.com EPCglobal, Inc. www.epcglobalinc.org RFID Journal www.rfidjournal.com Uniform Code Council, Inc. www.uc-council.org ® Corporation ®...

  • Page 19: Smart Label Development

    Use the Software Migration Tools (SMT) to enable the printer to automatically create RFID commands from your existing bar code commands. These tools are described on page 65. • Incorporate RFID commands into new or existing Printronix ® programs. Command details start on page 35. •...

  • Page 20: Rfid Control Menu

    Chapter 2 RFID CONTROL Menu RFID CONTROL Menu RFID CONTROL RFID Reader Enable* Tag Type Alien Squig 64 RAF Omni 313 64 Matrics2020 64 EPC Gen2 96 Avery AD410 IN TI Dallas G2 Alien Squig G2 ImpZ Triflex 96 Avery AD810 96 1, 3 RAF Frog G2 Omron Wave G2...
  • Page 21 Error Type Msg Disable Enable Notes: * = Default. Italicized items appear only when Admin User is set to Enable (in the PRINTER CONTROL menu). Display item only. Appears only if Tag Type is set to Matrics2020 64 or Matrics2020 96.
  • Page 22 0.0 to 5.0 inches 1 to 20 1 to 20 Enable Notes: * = Default. Enable Italicized items appear only when Admin User is set to Enable (in the PRINTER CONTROL menu). Appears only on MP2 RFID printers. Class Zuma...

  • Page 23: Rfid Control Menu Items

    RFID CONTROL Menu Items RFID Reader This menu item enables or disables the RFID encoder. The default is Enable. Tag Type This menu item selects the tag type in use. Table 1 lists supported tags types in alphabetical order. Other types may be added in the future.
  • Page 24 Chapter 2 RFID CONTROL Menu Table 1. Supported RFID Tag Types Tag Name Bits Alien Squiggle Alien Squiggle 2 (aka Super Squiggle) Avery™ AD-210 (aka Strip) Avery AD-220 (aka Runway) Avery AD-410 (aka IN) Avery AD-610 (aka BL) Avery AD-620 (aka Triflex) Generic Philips (coupler yellow) Generic Philips...
  • Page 25 Table 1. Supported RFID Tag Types Tag Name Bits KSW Gen 2 Excalibur KSW Gen 2 Templar Omron™ Loop Omron Wave Omron Gen 2 Wave ® Rafsec Rafsec 432 Rafsec 450 Rafsec 478 Rafsec Gen 2 Frog (3000790) Rafsec Short Dipole (OneTenna) Rafsec Square Dipole (OneTenna)
  • Page 26 Chapter 2 RFID CONTROL Menu Table 1. Supported RFID Tag Types Tag Name Bits ® Symbol Class 0 Read-Only ® (aka Matrics X1020) Symbol Class 0 Read-Only (aka Matrics X1020) Symbol Class 0+ (aka Matrics X2020) Symbol Class 0+ 4T Glacier (aka Matrics X2020) Symbol Gen 2 Four T Symbol Gen 2 Trident...

  • Page 27: Error Handling

    In None mode, no specific action is taken when a tag fails to be programmed. In Stop mode, when a tag fails to be programmed, the printer will halt and display the error message “RFID Error: Check Media.” The label is discarded and reprinting of the label (if desired) must be initiated from the host.
  • Page 28 Chapter 2 RFID CONTROL Menu Failed Tag Cnt This menu item displays on the control panel’s LCD the number of failed tag write attempts since the last Clear Tag Stat operation has been initiated. (See “Clear Tag Stat” below.) Tag Void Cnt This menu item always displays 0 unless the RFID encoder is used with an attached online data validator.
  • Page 29 Table 2. Printed Overstrike Error Messages Error Message Tag R/W Err x The printer software attempted to write to or read from the Check media RFID tag, but the RFID encoder indicated that the tag could not be written to or read from.

  • Page 30: Admin User Menu Items

    Make sure to position the tag over the coupler to receive an accurate reading. The menu item works exactly the same as Read Tag (above), except that after the printer reads the tag, it feeds the label to the next top-of-form. PreErase Class 0+...

  • Page 31: Custom Write Pwr

    The custom tag menus allow the RFID encoder to work with tag types that are not listed in the Tag Type menu item. NOTE: Printronix cannot guarantee the performance of tag types not certified by Printronix. When Custom Tag is set to Disable, the settings in the custom tag menus are ignored by the RFID encoder.

  • Page 32: Custom Read Pwr

    Chapter 2 RFID CONTROL Menu Custom Read Pwr NOTE: To enable this menu item, set Custom Tag to Enable. This menu item selects the read power level to be used in the RFID encoder. 1 is the lowest power level setting, and 20 is the highest. The default is 5.

  • Page 33: Custom Run Cal

    This menu item determines how far the RFID tag position of the currently installed custom tags differs from the RFID tag position of the standard Printronix tag. Printronix printers print at maximum speed with RFID labels that have RFID tags in the standard position.

  • Page 34: Requesting An Rfid Report

    RFID labels (to prevent RFID labels from being wasted). If RFID labels are installed in the printer, and a job is printed with at least one form that contains no RFID commands, a fault will be declared and the data for the forms that contain no RFID commands will be absorbed.

  • Page 35: Rfid Pgl Commands

    RFID PGL Commands IMPORTANT For all examples make sure Label Length in the QUICK SETUP menu matches the physical length of the installed media. RFWTAG Purpose The RFWTAG command is used to program an RFID tag (embedded in a smart label) using structured data format.
  • Page 36 Chapter 2 RFID PGL Commands size mem bank Bit Field length LOCK<DFn>, where DFn is the dynamic field defined in EXECUTE mode. format is an optional parameter to specify the format for the passcode data. Enter B for binary, D for decimal, and H for hexadecimal.
  • Page 37 DF n Optional parameter to indicate this field has dynamic data. Replace n with a number ranging from 1 to 512 to identify the field number of this particular field. If this option is used, datafield is ignored, and dynamic data must be entered via the DF command in the EXECUTE mode.
  • Page 38 Chapter 2 RFID PGL Commands idir Enter a plus sign (+) or leave the field blank to increment (default). Enter a minus sign (–) to decrement. step A decimal number specifies the amount to increment/ decrement each time the form is executed. The increment is at bit level and will automatically wrap based on the field size.
  • Page 39 RFWTAG field on the field format. Therefore, if the converted value is larger than the maximum value that a field can hold, an error will be reported. If the data vaue is smaller than the specified field length, on the other hand, the field will be padded to the left with zero bits.
  • Page 40 Chapter 2 RFID PGL Commands banks do not accept incremental data because the ACS memory bank contains passcodes for LOCK and UNLOCK operations, and the KIL memory bank contains a killcode to kill a tag. Incremental data do not apply to passcodes or killcodes.
  • Page 41 3;D;*5* 14;D;*15383* 20;H;*ABCDE* 25;D;*0000123456* STOP ~EXECUTE;SGTIN–64;1 ~NORMAL Example 3 Same as Example 2, except it uses a dynamic method. This example also shows how to program another RFID tag without redefining the data structure of the SGTIN–64. ~CREATE;SGTIN–64;432 RFWTAG;64 2;DF1;B 3;DF2;D 14;DF3;D 20;DF4;H...
  • Page 42 Chapter 2 RFID PGL Commands ~AF1;<DF5> ~NORMAL Example 4 This example shows how to program a roll of 1500 smart labels with SGTIN–64 values, where the Header = 2d, Filter Value = 5d, EPC Manager Index = 15383d, Object Class = 703710d or 0xABCDE, and the Serial Number starting from 0000000 to 0001499d.
  • Page 43 38;D;*123456* STOP ~EXECUTE;SGTIN–96;1 ~NORMAL Example 6 This example shows memory bank usage, where multiple RFWTAG and RFRTAG can be used. ~CREATE;SGTIN;216 SCALE;DOT;203;203 RFWTAG;96;EPC 96;IDF1;H STOP RFRTAG;96;EPC 96;DF3;H STOP RFWTAG;256;USR 256;IDF2;H STOP RFRTAG;256;USR 256;DF4;H STOP ALPHA IAF1;24;POINT;90;60;16;6 IAF2;64;POINT;130;60;16;4 STOP BARCODE C3/9;X1;IBF1;64;170;60 STOP VERIFY;DF1;H;*EPC VERIFY;DF3;H;*EPC...
  • Page 44 Chapter 2 RFID PGL Commands ~IAF1;<DF3> ~IAF2;<DF4> ~IBF1;<DF3> ~NORMAL Example 7: This example shows memory bank usage with LOCK and UNLOCK option, where multiple RFWTAG and RFRTAG can be used, and the passcode for lock and unlock can be in dynamic format. ~CREATE;SGTIN;432 SCALE;DOT;203;203 RFWTAG;LOCK<DF6>;D;96;EPC...

  • Page 45: Rfrtag

    VERIFY;DF8;H;*DF8 = *;*\r\n* ~EXECUTE;SGTIN;FCNT3 ~DF1;*313233343536373839414243* ~DF3;*3435363738* ~DF6;*3224115* ~DF7;*3132333* ~AF1;<DF2> ~AF2;<DF6> ~AF3;<DF7> ~AF4;<DF8> ~NORMAL RFRTAG Purpose To read the content of an RFID tag (embedded in a smart label) into a dynamic field. This command cannot be mixed with the RFREAD command. Mode CREATE Format...
  • Page 46 Chapter 2 RFID PGL Commands mem bank Bit Field be in dynamic format. For dynamic format, enter LOCK<DFn>, where DFn is the dynamic field defined in EXECUTE mode. format is the optional parameter to specify the format for the passcode data. Enter B for binary, D for decimal, and H for hexadecimal.
  • Page 47 format NOTE: 1. Multiple RFRTAG commands are allowed in the same form but the same DFn field cannot be defined multiple times. 2. The DF field length is restricted to 64 bits for binary or decimal format and must be a multiple of 8 bits. The sum of all field lengths must be equal to the tag size.

  • Page 48: Verify

    This command requires the use of the Return Status port. See “Return Status Port” on page 64. Purpose Request the printer to send to the host the ASCII representation of a dynamic field. The dynamic field could be one of AFn, BFn, or DFn, but cannot be RFn.
  • Page 49 A mandatory parameter to specify an ASCII string of characters, which is followed by the RFID data, to be sent by the printer to the host. Delimiter designating the start and end of a character string. Replace (D) with any printable character, except the SFCC and the slash character (/).
  • Page 50 \n –> 0x0A \\ –> \ Example 1 This example requests the printer to send to the host the content of the RFID tag, in hexadecimal format, both before and after the RFWTAG command writes data to the tag. Also, the label is not moved.
  • Page 51 ~CREATE;VERIFY;432;NOMOTION RFRTAG;64 64;DF1;H STOP VERIFY;DF1;H;*TagBefore=* RFWTAG; 64 2;B;*01* 6;D;*29* 24;H;*466958* 17;H;*ABC* 15;D;*1234* STOP RFRTAG;64 64;DF2;H STOP VERIFY;DF2;H;*TagAfter=* ~EXECUTE;VERIFY;1 ~NORMAL TagBefore=A5A500005D055E04 TagAfter=5D466958055E04D2 Example 2 This example reads a roll of 1500 pre-programmed smart labels. ~CREATE;READONLY;432 RFRTAG;64 64;DF1;H STOP VERIFY;DF1;H;** ~EXECUTE;READONLY;1500 ~NORMAL A5A500005D055E04 A5A50000000550D4 VERIFY...

  • Page 52: Write Tag

    Chapter 2 RFID PGL Commands Example 3 This example requests the printer to program a roll of 2000 smart labels using the RFWTAG command with incremental field. Then, it sends the actual data from each of the 2000 tags to the host.
  • Page 53 RFWRITE;[HEX;][EPC m ;][RF n ;L;][LOCK;]AT p ;[(D) datafield (D)] RFWRITE; The RFID Write Tag command. HEX; Optional parameter to indicate that the text in datafield is in hexadecimal format and that it will be converted to binary format. EPC m ; Optional parameter to indicate that the data in datafield should be converted to an EPC number.

  • Page 54: Read Tag

    Chapter 2 RFID PGL Commands datafield NOTE: RFWRITE fields are not expandable in VDUP and/or HDUP sections. Read Tag IMPORTANT This command is still supported but no longer in development. We recommend you develop your application using the RFRTAG command as defined on page 45. Read Tag is not a command, but an element of the ALPHA and BARCODE commands.

  • Page 55: Rfid Ppi/Zgl Commands

    RFID PPI/ZGL Commands IMPORTANT For all examples make sure Label Length in the QUICK SETUP menu matches the physical length of the installed media. Read Tag Purpose This command allows data from the RFID tag (embedded in the smart label) to merge into any previously defined dynamic data field.

  • Page 56: Write Tag

    LCD. Set this flag to 1 to read data from the tag without moving the label. The printer may adjust the label position while it reads data from the tag, but this adjustment will reverse before any subsequent normal label movement.

  • Page 57: Write Or Read Rfid Format

    LCD. motion Set this flag to 1 to program data into the tag without moving the label. The printer may adjust the label position while it writes data into the tag, but this adjustment will reverse before any subsequent normal label movement.

  • Page 58: Calibrate Rfid Transponder Position

    Chapter 2 RFID PPI/ZGL Commands Calibrate RFID Transponder Position Purpose This command initiates an RFID RFID transponder calibration for a specific RFID label and returns the results to the host computer. ^HR a , b Format Define EPC Data Structure Purpose This command defines the structure of EPC data, which can be read from or written to an RFID...

  • Page 59: Enable Rfid Motion

    Specify RFID Retries for a Block Purpose This command specifies the number of times that the printer attempts to read from or write to a particular block of a single RFID tag. The number will reflect in the Auto Retry menu.

  • Page 60: Set Rfid Tag Password

    Label Retry menu. Error handling. Enter N for no action. Enter P to place the printer in Pause mode. Enter E to place the printer in Error mode. (This option is currently not supported.) Signals on applicator. Enter S to single signal.

  • Page 61: Host Verification

    Host Verification IMPORTANT This command requires the use of the Return Status port. See “Return Status Port” on page 64. Purpose This command sends back the data in a ^FN (Field Number) field to the host. Format ^HV x , y ,< ASCII > <...
  • Page 62 Chapter 2 RFID PPI/ZGL Commands ^WT0^FH^FD_87_D0_03_45_67_AB_CD_EF^FS //Write Tag with data = “87D0034567ABCDEF” //(hex format). ^RT1,0,1,1^FS //Read Tag into data element 1, 8–byte (16 characters) //long (hex format). ^FO100,100^A0N,60^FN1^FS //Print data in element 1. //End and print label. Example 2 Same as Example 1, except an alternative PPI/ZGL syntax that does not require underscores between the hex characters is used.

  • Page 63: Rfid Ppi/Stgl Commands

    ^FN1^RFR,H,0^FS //Read tag data and store into FN1. //End and print label. Example 4 This example uses the ^RF command to write and read the tag with EPC format. ^RMY ^RB64,16,16,16,16 ^RZ01^RR3^RFW,E^FD12594,13108,13622,14136^FS ^FO50,150^A0N,50^FN0^FS ^FN0^RR4^RFR,E^FS RFID PPI/STGL Commands <ESC>RK 1,a,b,D16,c.c <ESC>RK 1,a,b,D24,c.c – RFID Write RFID tag Error Ignore.

  • Page 64: Return Status Port

    SETUP menu. NOTE: If you are using the IGP/PGL SETUP menu, you must set Admin User to Enable in the PRINTER CONTROL menu. If you set Ret. Status Port to Serial, you must set all SERIAL PORT menu settings (i.e., Port Type, Baud Rate, Stop Bits, Parity, etc.) to match the serial port settings in the application.

  • Page 65: Software Migration Tools (Smt)

    RFID tag. If barcode checksum data is included in your datastream, it will be encoded onto the tag. If your datastream requests the printer to calculate the bar code checksum, it will not be encoded onto the tag. In the case of the UCC bar code, the (01) application identifier is not written to the tag.
  • Page 66 A, UPC-A+2 or UPC-A+5 bar code to an RFID tag. Data written to the RFID tag is right justified and zero padded. Checksum data calculated by the printer is not encoded onto the RFID tag. • EPC (64 bit) / EPC_96 (96 bit): This tool allows EPC data carried by a Code 3 of 9 bar code to be encoded onto an RFID tag.

  • Page 67: Selecting The Tools

    8. Press ↵ to select it. 9. Press ↓ and ↵ at the same time to lock the ↵ key, then press PAUSE to take the printer offline. 10. Press PAUSE again to put the printer online. Selecting The Tools...

  • Page 68: Error Messages

    Error Messages The RFID encoder can detect a number of errors. When one of these errors occurs, the RFID encoder alerts the printer to perform the currently selected error action (see “Error Handling” on page 27) and display the appropriate error message on the control panel’s LCD (see Table 3).
  • Page 69 Table 3. Control Panel Error Messages Error Message Explanation RFID MAX RETRY Error Handling = Overstrike in Check System the RFID CONTROL menu, and the Label Retry count has been exhausted. RFID TAG ERR: A write was attempted on a Read-Only Tag read-only tag.

  • Page 70: Troubleshooting

    If you are having trouble with the RFID encoder, consult Table 4 for a list of symptoms and possible solutions. Table 4. Troubleshooting the RFID Encoder Symptom No communication between the printer and the reader Tag failed Inconsistent results The RFID encoder works, but it does not meet expectations Solution 1.

  • Page 71: Mp2 Rfid

    (next to the gap sensor). See figure on page 72. The coupler has four positions on a four inch printer and five positions on a six inch printer. These positions are color coded on the front of the media guard.

  • Page 72: Adjusting The Coupler Position

    Chapter 3 New Coupler System Adjusting The Coupler Position Coupler Reach under the media guard to grasp the coupler handle. Slide the coupler until the correct color displays in the coupler position indicator. Four and six inch printers have yellow, orange, red, and blue coupler positions.

  • Page 73: 64 Bit And 96 Bit Epc Data Formats

    Class 1 Gen 1 64 Bit And 96 Bit EPC Data Formats According to the EPC code standard there are two specific data type formats: 64 bit and 96 bit. The type of format is defined by the first two bits of the EPC Header. When the first two bits are set to 00, the EPC format is interpreted as a 96 bit data format.
  • Page 74 Chapter 3 64 Bit And 96 Bit EPC Data Formats IMPORTANT When any of these three parameters are inconsistent then confusion is likely. The following tables (Table 5 on page 74 for PGL and Table 6 on page 75 for ZGL) identify the consequences of mismatched criteria. Table 5.
  • Page 75 Table 6. ZGL EPC Format Handling EPC Format Selected Size of Data (based on Tag Data Request (from header) Length program) 64 bit 64 bit < 64 bit 64 bit 64 bit = 64 bit 64 bit 64 bit > 64 bit 64 bit 96 bit <...

  • Page 76: Moving From 64 Bit Tags To 96 Bit Tags

    Chapter 3 Moving From 64 Bit Tags To 96 Bit Tags Moving From 64 Bit Tags To 96 Bit Tags When the time comes to upgrade from 64 bit data to 96 bit data the best solution is to select the 96 bit tag type on the menu (which is mandatory) and modify the host datastream to write the full 96 bits.

  • Page 77: When 64 Bit Data Is Sent To A 96 Bit Tag: Zgl

    When 64 Bit Data Is Sent To A 96 Bit Tag: ZGL Example 2 ~NORMAL ~CREATE;TEST1;216 RFWTAG;64 64;H;*3246494454414744* STOP RFRTAG;64 64;DF1;H STOP VERIFY;DF1;H;*DF1 = * ~EXECUTE;TEST1 ~NORMAL Result: returned DF1 = 3246494454414744 When 64 Bit Data Is Sent To A 96 Bit Tag: ZGL The data will be written with zeroes padded to the right.

  • Page 78: Pgl

    Chapter 3 Multiple Read/Write Commands On One Label When using RFID commands in PGL, it is only possible to use one read and one write command in a single form at a time. To access a single label with multiple reads or writes, split the job into multiple forms where all but the last form has the NOMOTION flag set.

  • Page 79: The Verify Command Is Not Rfid Specific

    The VERIFY Command is not RFID Specific The VERIFY Command is not RFID Specific Although the VERIFY command was added to PGL to enable the sending of RFID data back to a host, it is not actually an RFID command, since: 1.
  • Page 80 Chapter 3 Splitting the EPC When the customer chose 36250103 as the MSB 64 bits, the leading zeros were padded to the left until 64 bits were filled, resulting in 00000000036250103. This converted to hex so that 00000000022921F7 was written into those bits. This means the full number (minus the insignificant leading zeros) was hex 22921F700000455 (decimal 155693006861632597), which is not the number the customer meant.

  • Page 81: Using The Advanced Rfid Calibration

    Custom Scan Len. The distance the Tag Profiler will scan to determine the optimum tag position. For improved performance, set Custom Scan Len. to 2 inches or less. This will prevent the printer from looking for a tag far beyond its actual location. •...

  • Page 82: Custom Tag Configurator

    It is generally best to accept the calibration values as is unless you are intimately familiar with the printer and its RFID processes. Before you leave the Custom Tag Configurator, record the result from Custom Tag Pos.
