Appendix E
Installation and Removal
11. Plug the wireless interface parallel cable into the J112 receptacle on the
controller board.
12. Plug the other end of the parallel cable into the wireless interface as
shown in Figure 78.
13. Plug the power cable into the J22 receptacle on the controller board.
14. Plug the other end of the power cable into the wireless interface as shown
in Figure 78.
15. Secure the parallel blank plate to the rear panel using two M3x8mm
screws.
16. Secure the wireless interface to the rear panel using two M4x12mm
screws.
Wireless Interface
Parallel Cable
M4x12mm
Screw (2)
J112
M3x8mm
Screw (2)
364
J22
Parallel
Blank Plate

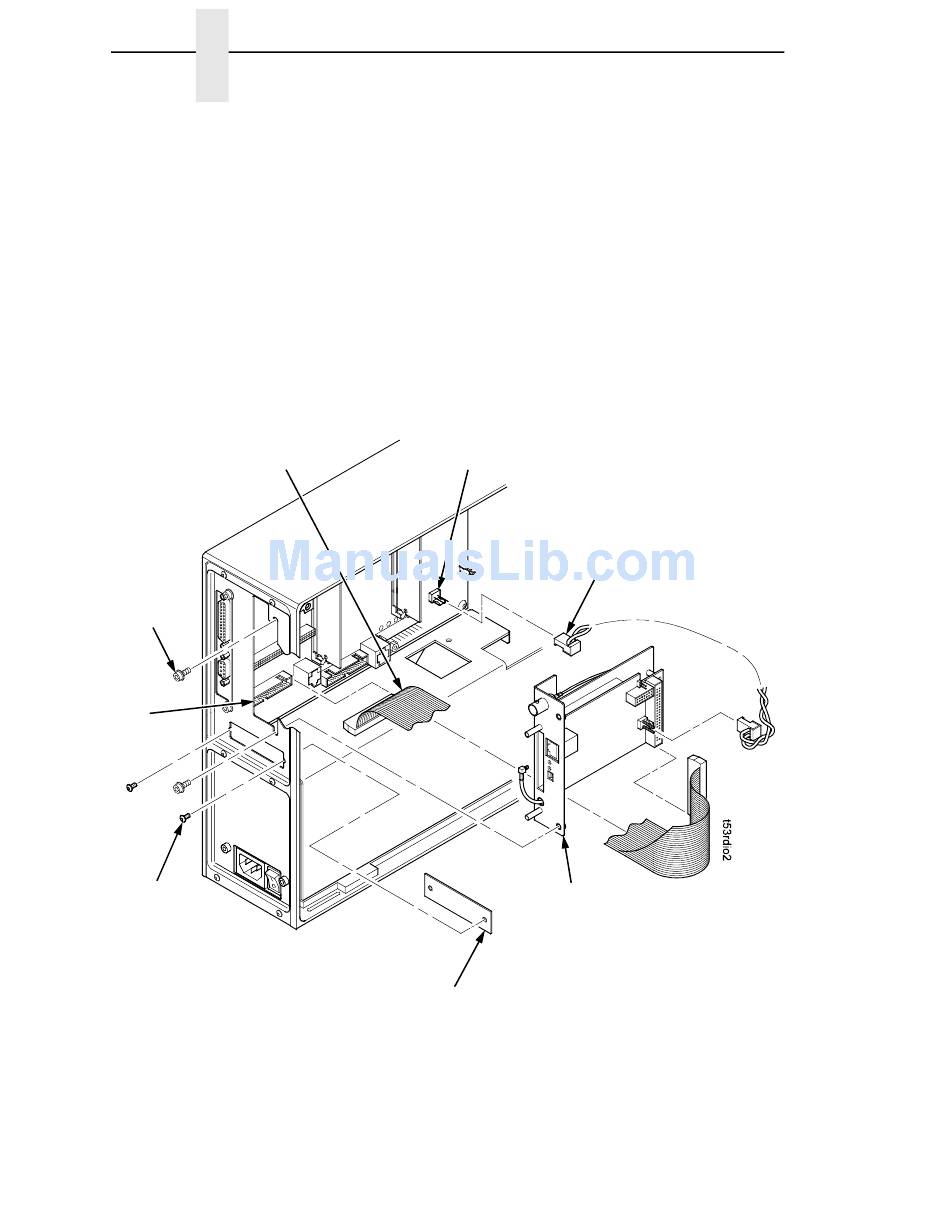

Figure 78. Installing the Wireless Interface
Power Cable
Wireless Interface
