Chapter 2
Setup
Printhead
Platen
Media Damper
9. Unwind approximately 3.0 feet (91cm) of media from the label roll. If your
label roll does not have a leader, remove the labels from the backing. The
empty backing (leader) will act as a leader to thread the media through
the SLPA components.
10. Pull the brake assembly away from the label roll back stop (behind the
label roll retainer) to release the tension.
11. Thread the leader around the rollers and toward the media damper using
the solid white arrow threading diagram etched on the front center wall
plate.
44
Label

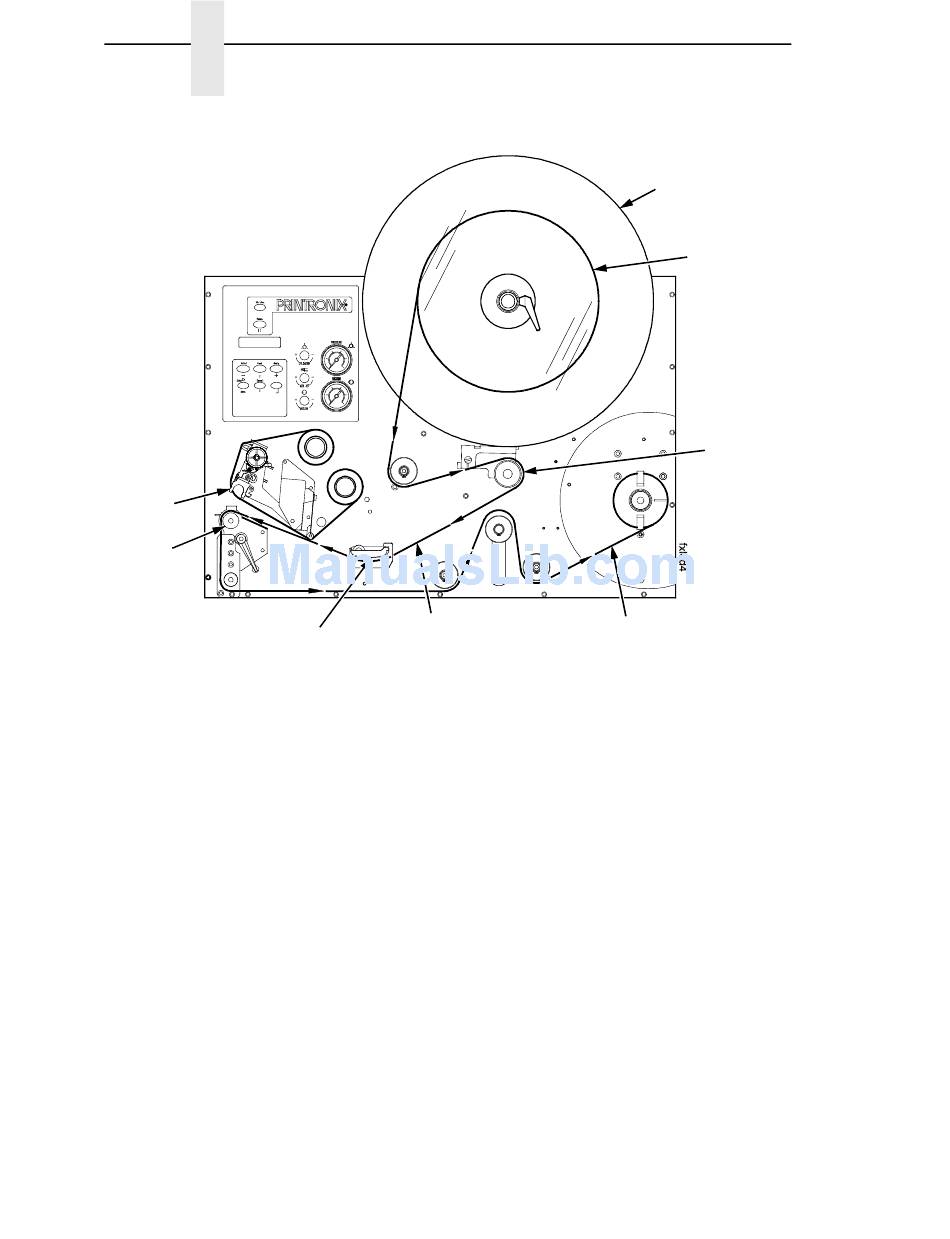

Figure 12. Loading Labels
Label Roll
Retainer
Label Roll
Brake
Assembly
Backing (Liner) Path
