To Air
Supply
Hose
IN
Air Supply
Connector
6. If you have a fault warning beacon, connect it to the beacon port.
(Figure 4.)
The fault warning beacon can also be mounted remotely from the SLPA.
(An optional 12 feet cable extension is available.)
7. Mount the air filter according to requirements.
NOTE: Customer must provide the necessary mounting for the air filter
supplied with the system.
8. Connect the air supply hose to the air supply connector marked IN.
(Figure 5.)
9. Connect the air hose to the quick connect air fitting marked OUT.
Air, Power, And Communications Connections

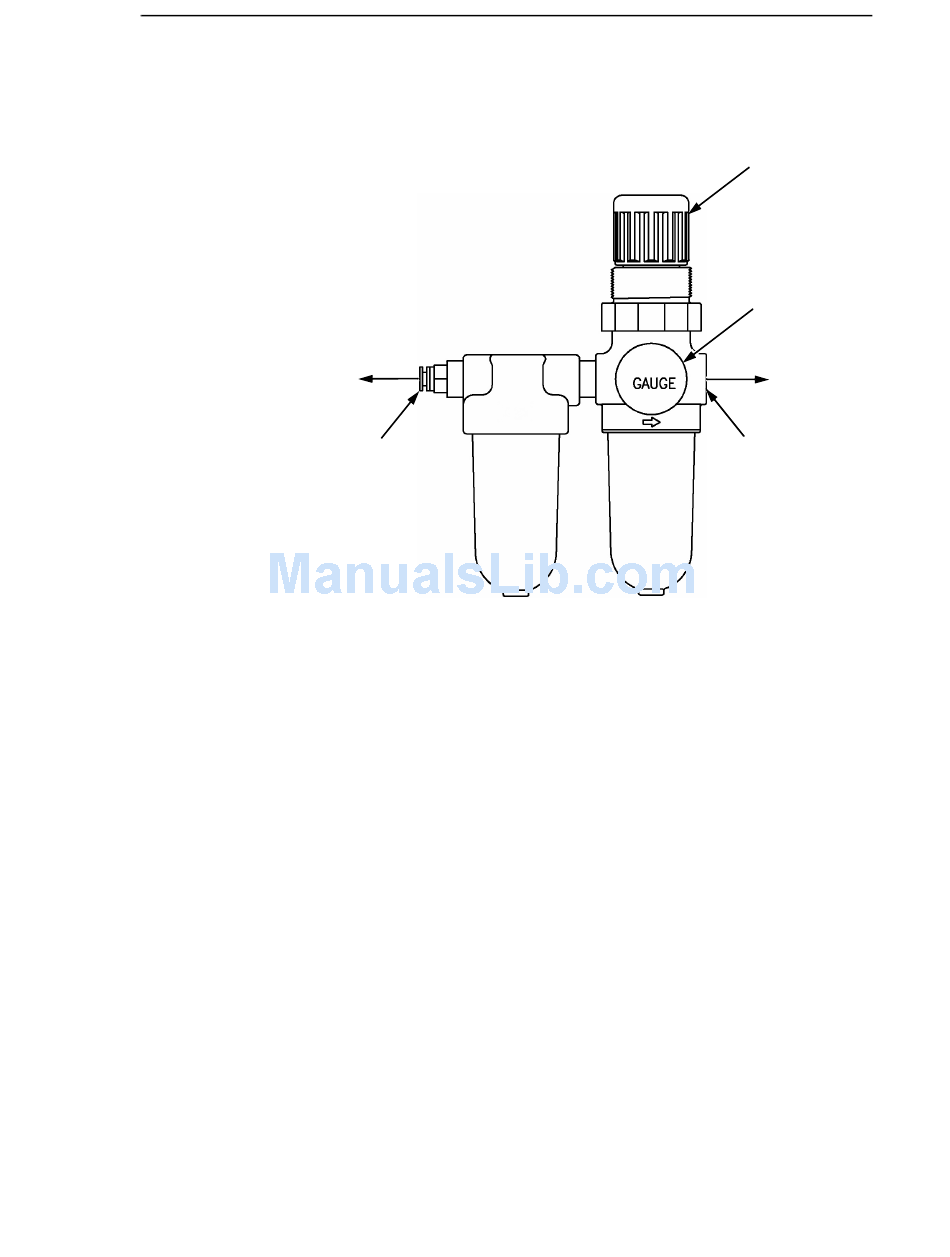

Figure 5. Air Filter
Air Pressure
Adjustment Knob
Air Pressure
Gauge
Air Hose to
SLPA
OUT
Quick
Connect
Air Fitting
31
