Chapter 2
Setup
1. Press the Pause key to take the SLPA offline.
2. Open the pivoting deck by rotating the deck lock lever fully clockwise.
Label Roll Hub
3. Loosen the cam lock located on the collar of the label roll hub.
4. Slide the label roll retainer off the label roll hub.
5. Remove the empty label roll core, if necessary, from the label roll hub.
42
Label Roll Core

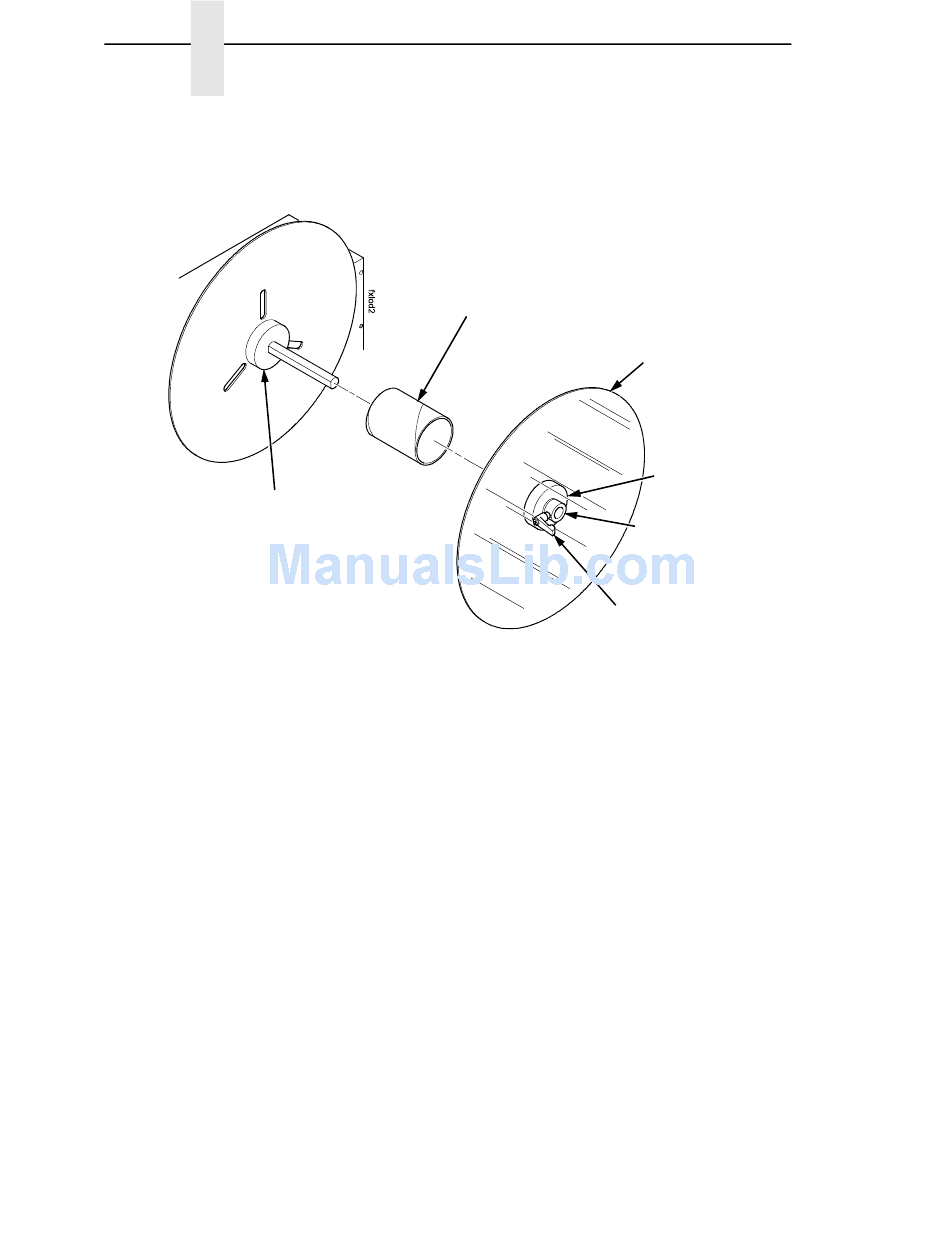

Figure 10. Mounting Label Media
Label Roll
Retainer
Label Roll Hub
Collar
Cam Lock
