Printronix SLPA7000 User Manual page 371

Antenna Cable
Antenna Cable
Connector
B
P1 Data Cable
Connector
Power Cable
Small Connector
RFID Encoder
Assembly

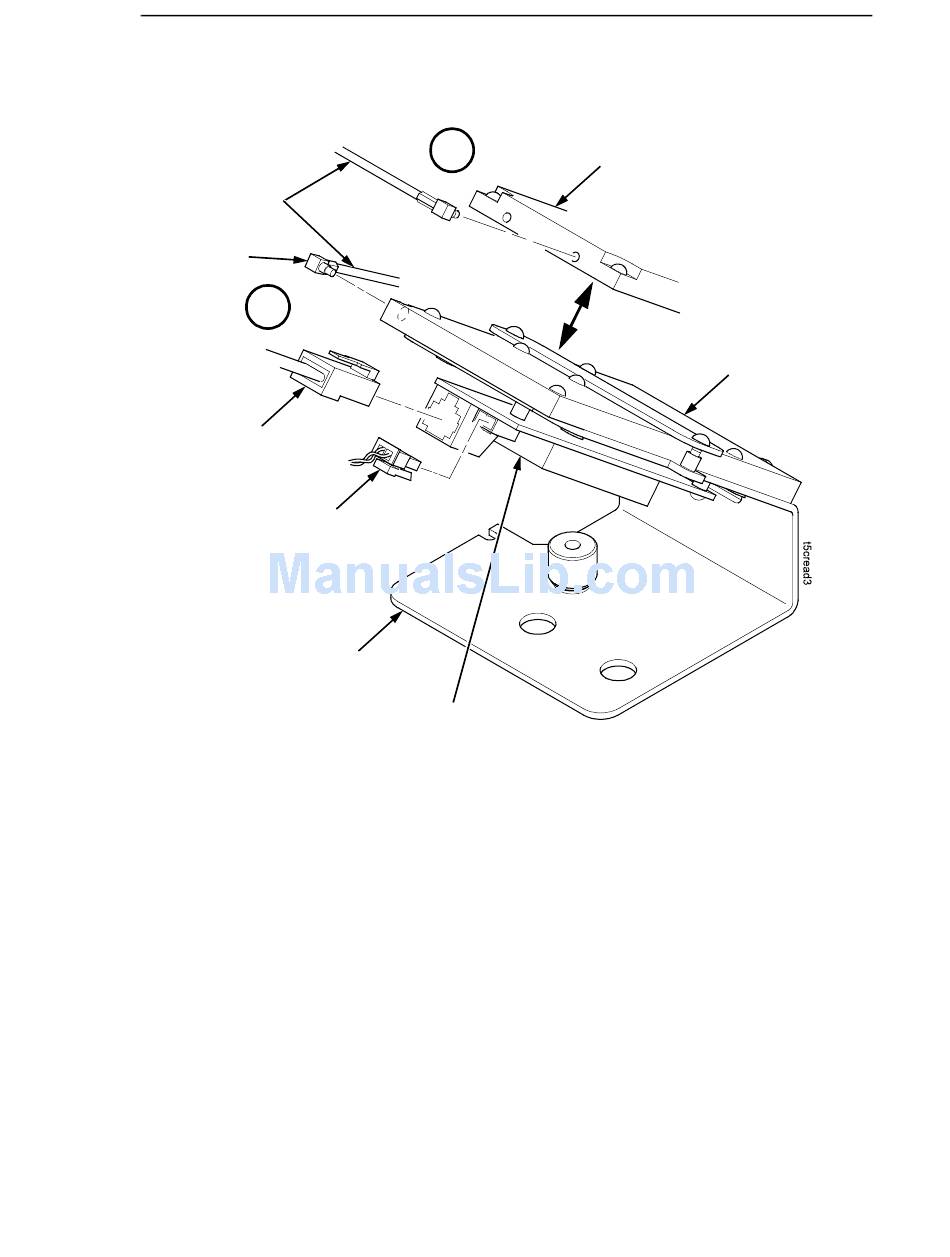

Figure 82. Disconnecting the Antenna, Power, and Data Cables
CAUTION
The antenna cable connector is easily damaged. Grasp it with pliers at
the square end only and pull it straight out of the encoder without
twisting or tilting it.
1. Grasping the square end of the antenna cable connector with pliers, pull it
straight out of the RFID encoder assembly:
a. For an Alien encoder, unplug the cable from the top of the encoder.
b. For an AWID encoder, unplug the cable from the side of the encoder.
2. If you are replacing the RFID encoder assembly, go to step 3; otherwise,
go to step 5.
3. Unplug the P1 data cable connector and the power cable small connector
from their corresponding receptacles on the interface board.
4. Set aside the old RFID encoder assembly.
5. If you are replacing the RFID antenna assembly, go to step 1 on
page 372; otherwise, go to step 1, page 375.
A
Interface Board
(Figure 82, detail A.)
(Figure 82, detail B.)
Remove the RFID Encoder Assembly
Alien Encoder
AWID Encoder
371
