10. Connect the opposite end of the air hose to the quick connect air fitting on
the power panel. (Figure 6.)
NOTE: Make certain that all communication port parameters have been
11. Adjust the air pressure to 90 ±10 psi using the air pressure adjustment
knob and the air pressure gauge (Figure 5): pull up the knob, then rotate it
clockwise to increase pressure or counterclockwise to decrease pressure.
Push in the knob when you have set the pressure.
12. If necessary, adjust the voltage (page 33).
13. Plug the AC power cord into the AC power receptacle. (Figure 6.)
14. Plug the SLPA and computer AC power cords into a grounded (three
prong) electrical outlet of the proper voltage.
15. Set the power switch to | (On) to power on the SLPA.
32
Quick
Connect
Air Fitting
Power Switch

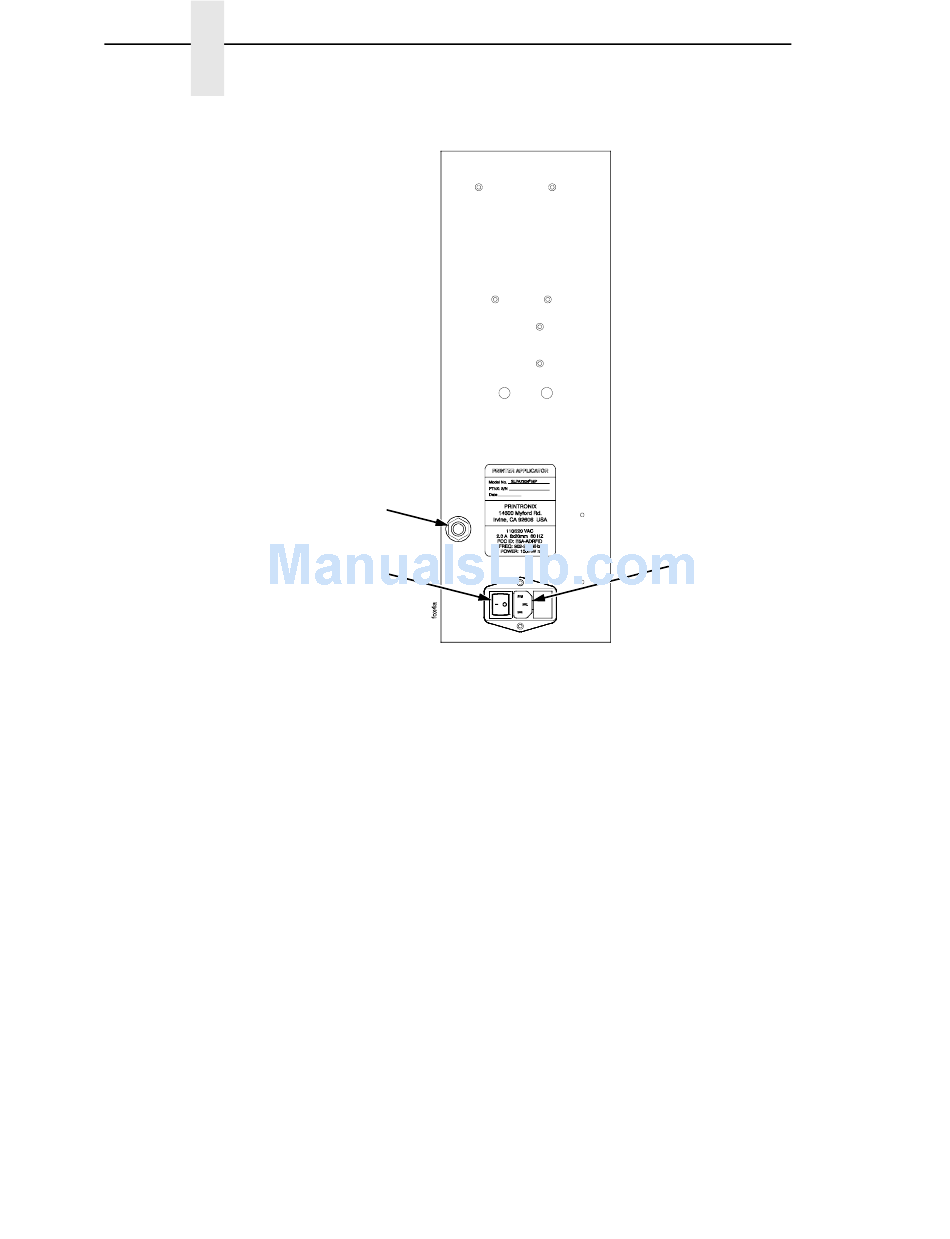

Figure 6. Power Panel
configured according to purchase order requirements. Print
parameters must be programmed correctly to achieve the best
possible print quality. The factory settings are sufficient for most
applications. Refer to "Configuring The SLPA" on page 73 to
customize printing setup.
AC Power
Receptacle
