Digital camera interface (DCMI)
The camera interface can capture 8-bit, 10-bit, 12-bit or 14-bit data depending on the
EDM[1:0] bits in the DCMI_CR register. If less than 14 bits are used, the unused input pins
must be connected to ground.
shows the DCMI pins.
Signal name
8 bits
10 bits
12 bits
14 bits
DCMI_PIXCLK
DCMI_HSYNC
DCMI_VSYNC
The data are synchronous with DCMI_PIXCLK and change on the rising/falling edge of the
pixel clock depending on the polarity.
The DCMI_HSYNC signal indicates the start/end of a line.
The DCMI_VSYNC signal indicates the start/end of a frame
1. The capture edge of DCMI_PIXCLK is the falling edge, the active state of DCMI_HSYNC and
DCMI_VSYNC is 1.
2. DCMI_HSYNC and DCMI_VSYNC can change states at the same time.
8-bit data
When EDM[1:0] in DCMI_CR are programmed to "00" the interface captures 8 LSBs at its
input (DCMI_D[0:7]) and stores them as 8-bit data. The DCMI_D[13:8] inputs are ignored. In
this case, to capture a 32-bit word, the camera interface takes four pixel clock cycles.
The first captured data byte is placed in the LSB position in the 32-bit word and the 4
captured data byte is placed in the MSB position in the 32-bit word.
example of the positioning of captured data bytes in two 32-bit words.
650/1830
Table 127.DCMI external signals
Signal type
DCMI_D[0..7]
DCMI_D[0..9]
Digital inputs
DCMI_D[0..11]
DCMI_D[0..13]
Digital input
Digital input
Digital input

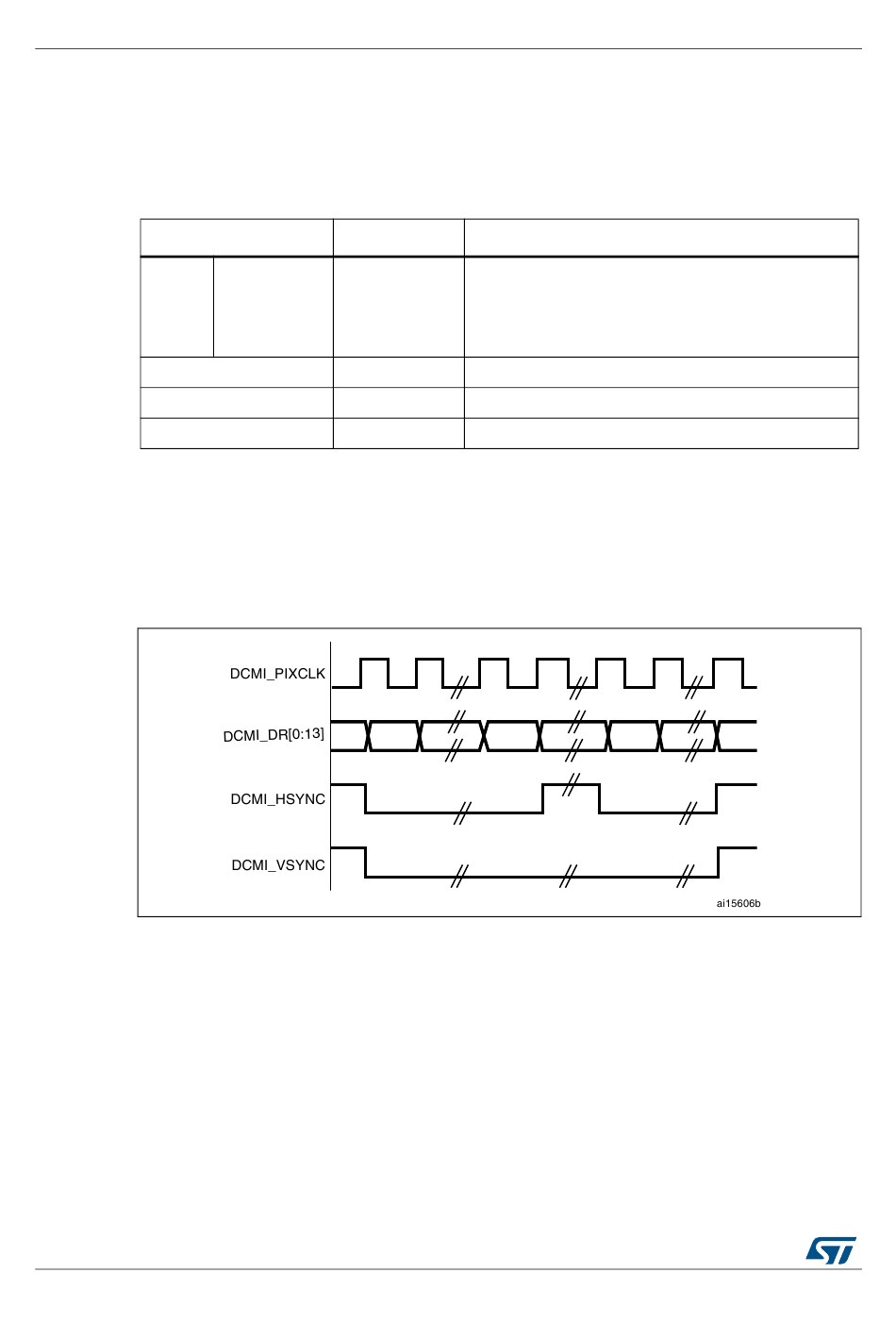

Figure 148.DCMI signal waveforms

DocID024597 Rev 5
Signal description
DCMI data
Pixel clock
Horizontal synchronization / Data valid
Vertical synchronization
RM0351
th
Table 128 gives an
