RM0351
Queue of context: Behavior when a queue overflow occurs
The Figure 82
before or during a conversion.

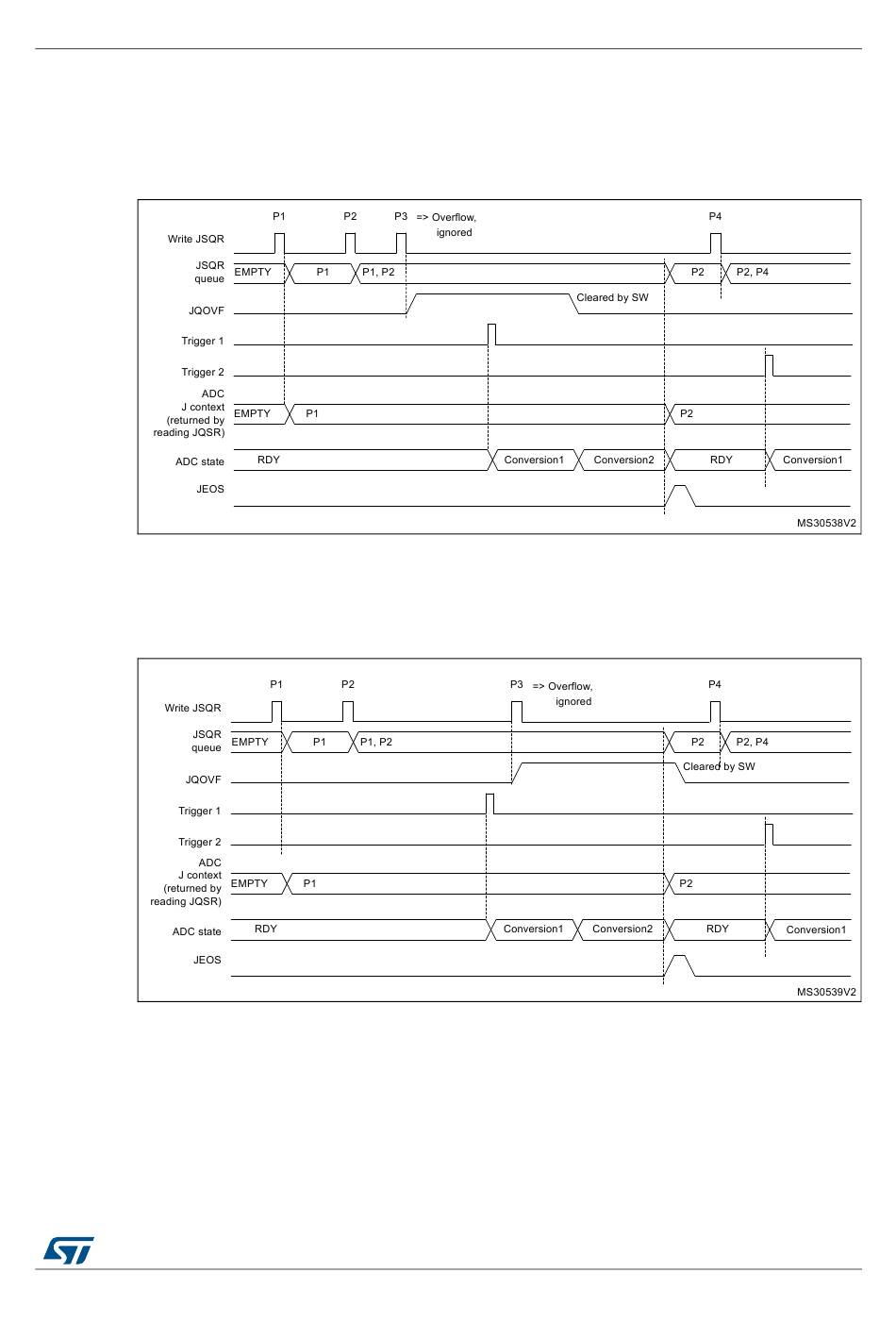

Figure 82. Example of JSQR queue of context with overflow before conversion

1. Parameters:
P1: sequence of 2 conversions, hardware trigger 1
P2: sequence of 1 conversion, hardware trigger 2
P3: sequence of 3 conversions, hardware trigger 1
P4: sequence of 4 conversions, hardware trigger 1

Figure 83. Example of JSQR queue of context with overflow during conversion

1. Parameters:
P1: sequence of 2 conversions, hardware trigger 1
P2: sequence of 1 conversion, hardware trigger 2
P3: sequence of 3 conversions, hardware trigger 1
P4: sequence of 4 conversions, hardware trigger 1
and Figure 83 show the behavior of the context Queue if an overflow occurs
DocID024597 Rev 5
Analog-to-digital converters (ADC)
531/1830
614
