Figure 226. Counter Timing Diagram, Internal Clock Divided By 2; Figure 227. Counter Timing Diagram, Internal Clock Divided By 4, Timx_Arr=0X36 - ST STM32L4 5 Series Reference Manual

RM0351 Advanced-control timers (TIM1/TIM8)

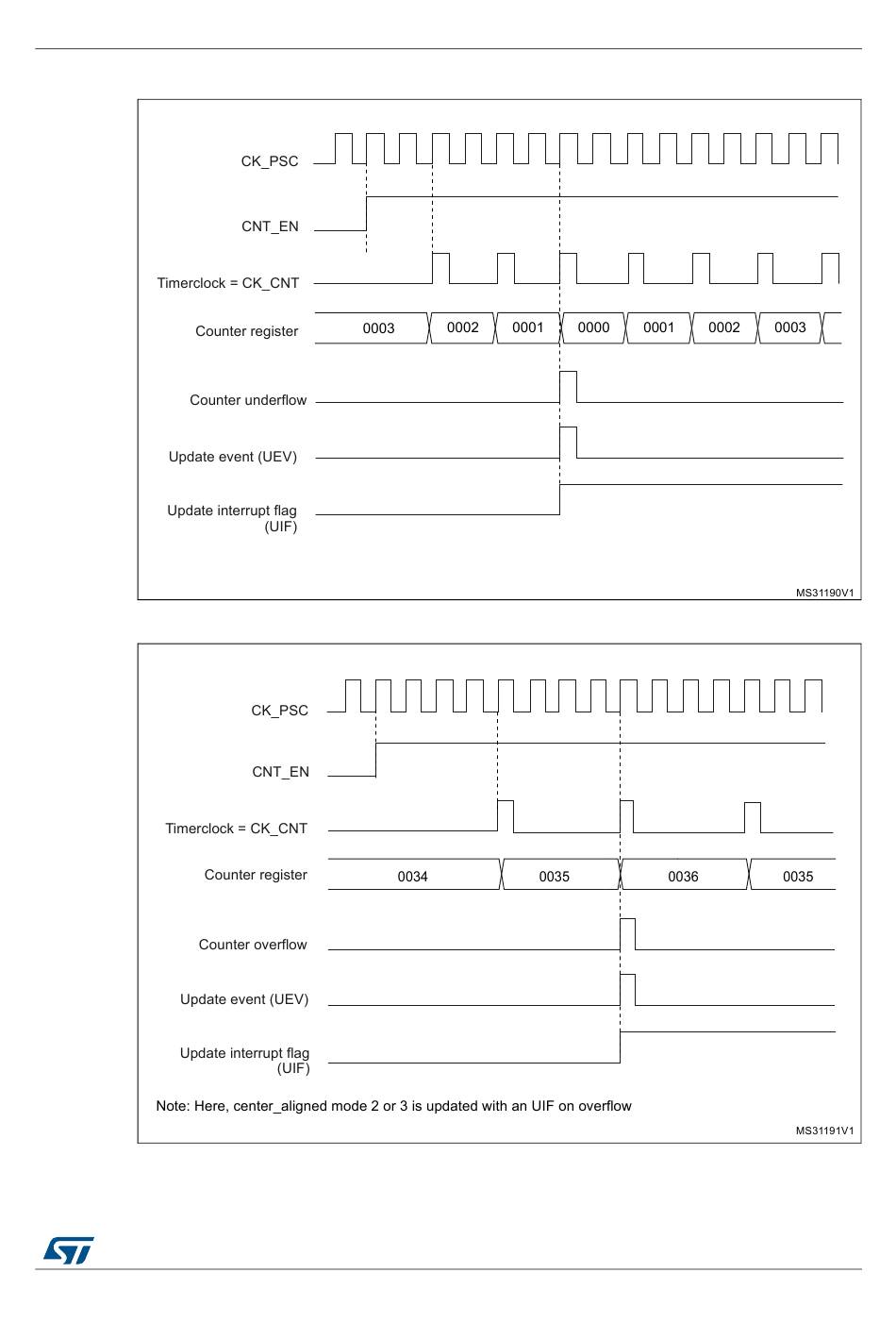

Figure 226. Counter timing diagram, internal clock divided by 2

Figure 227. Counter timing diagram, internal clock divided by 4, TIMx_ARR=0x36

DocID024597 Rev 5 889/1830
