Figure 128. Interleaved Single Channel Ch0 With Injected Sequence Ch11, Ch12; Figure 129. Two Interleaved Channels (Ch1, Ch2) With Injected Sequence Ch11, Ch12; Case 1: Master Interrupted First; Figure 130. Two Interleaved Channels (Ch1, Ch2) With Injected Sequence Ch11, Ch12 - ST STM32L4 5 Series Reference Manual

RM0351

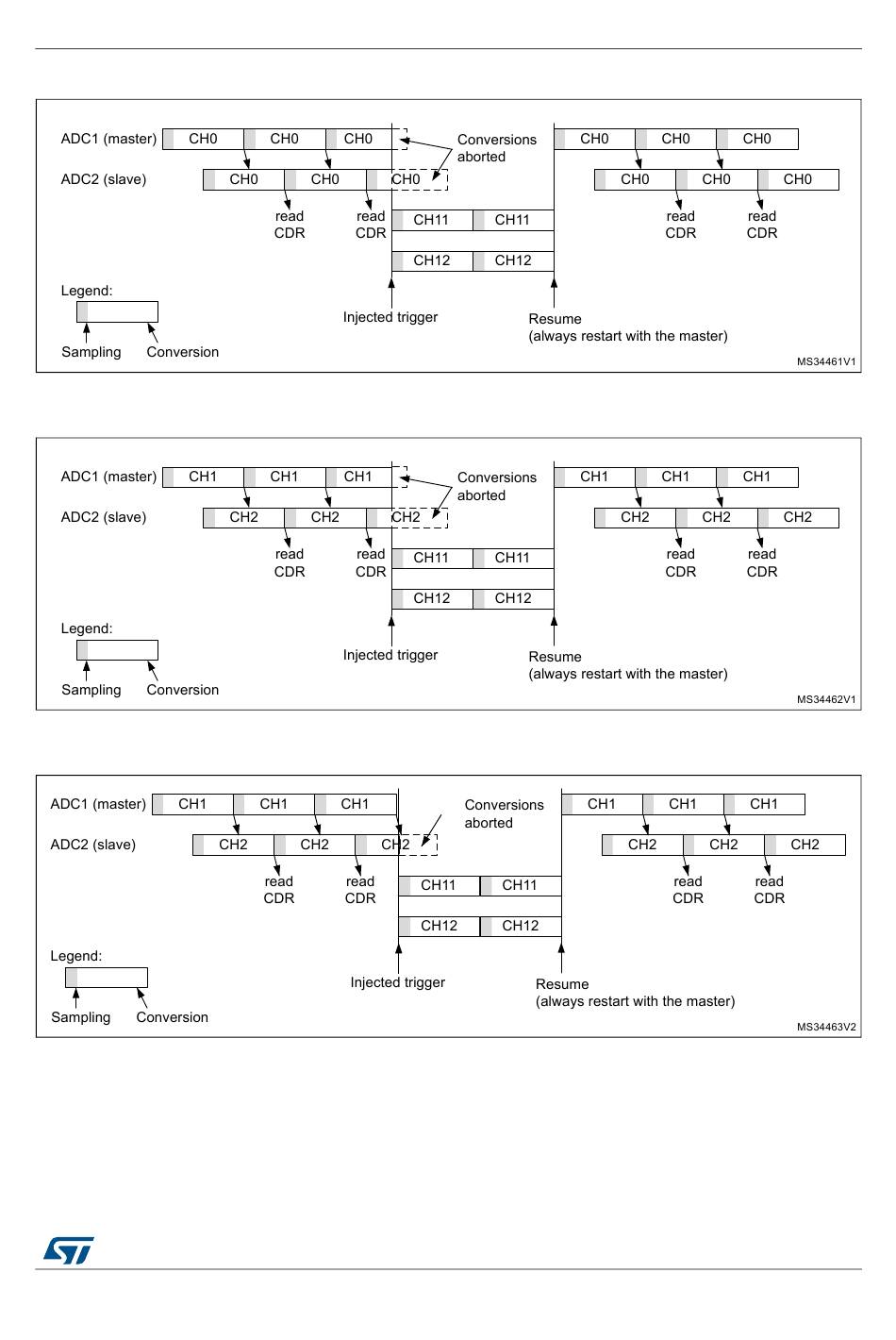

Figure 128. Interleaved single channel CH0 with injected sequence CH11, CH12

Figure 129. Two Interleaved channels (CH1, CH2) with injected sequence CH11, CH12

Figure 130. Two Interleaved channels (CH1, CH2) with injected sequence CH11, CH12

DMA requests in dual ADC mode
In all dual ADC modes, it is possible to use two DMA channels (one for the master, one for
the slave) to transfer the data, like in single mode (refer to

- case 1: Master interrupted first

- case 2: Slave interrupted first
