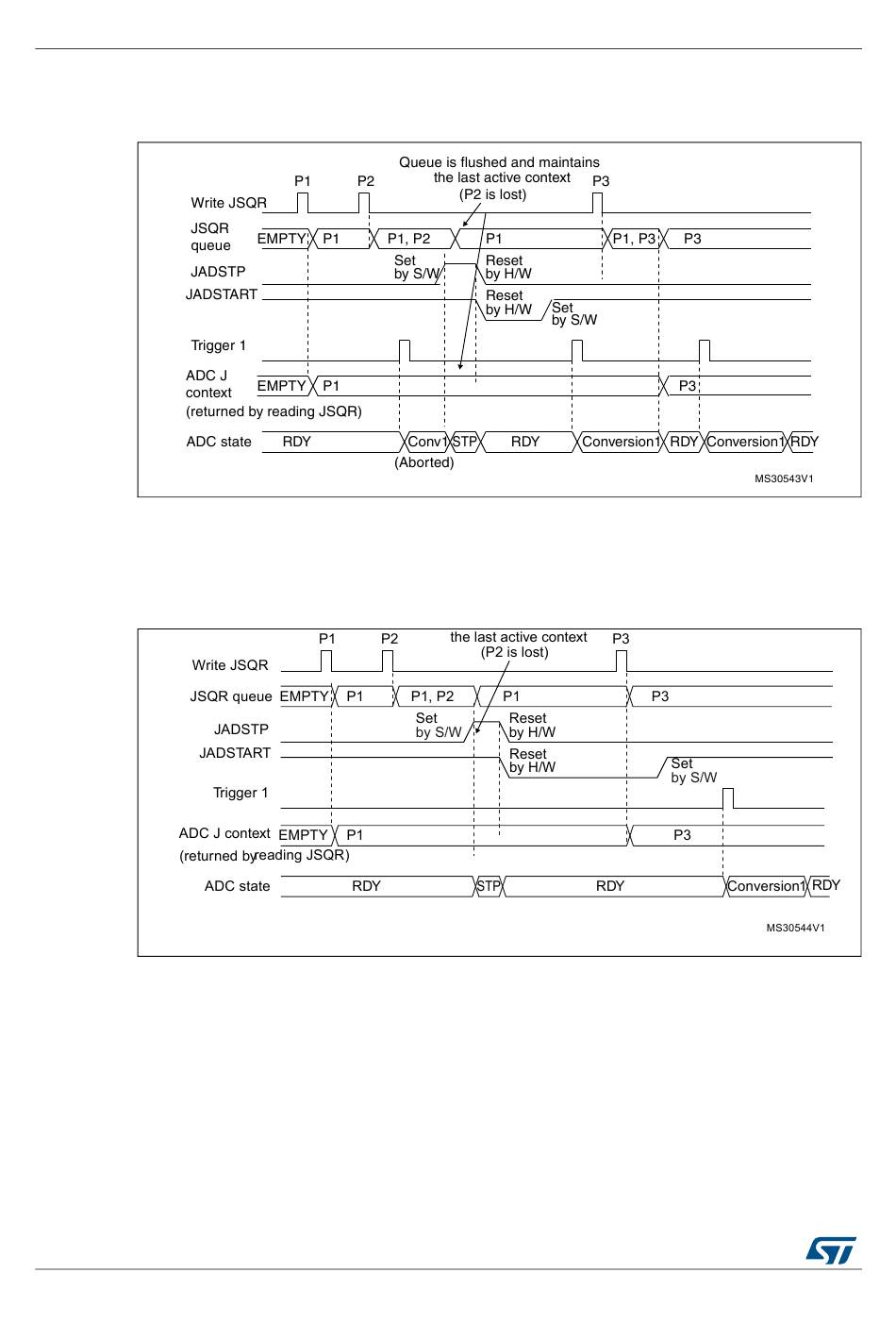

Figure 87. Flushing JSQR queue of context by setting JADSTP=1 (JQM=0).
1. Parameters:
P1: sequence of 1 conversion, hardware trigger 1
P2: sequence of 1 conversion, hardware trigger 1
P3: sequence of 1 conversion, hardware trigger 1
Figure 88. Flushing JSQR queue of context by setting JADSTP=1 (JQM=0).
1. Parameters:
P1: sequence of 1 conversion, hardware trigger 1
P2: sequence of 1 conversion, hardware trigger 1
P3: sequence of 1 conversion, hardware trigger 1
534/1830
Case when JADSTP occurs during an ongoing conversion and a new
Case when JADSTP occurs outside an ongoing conversion
trigger occurs.
