Analog-to-digital converters (ADC)

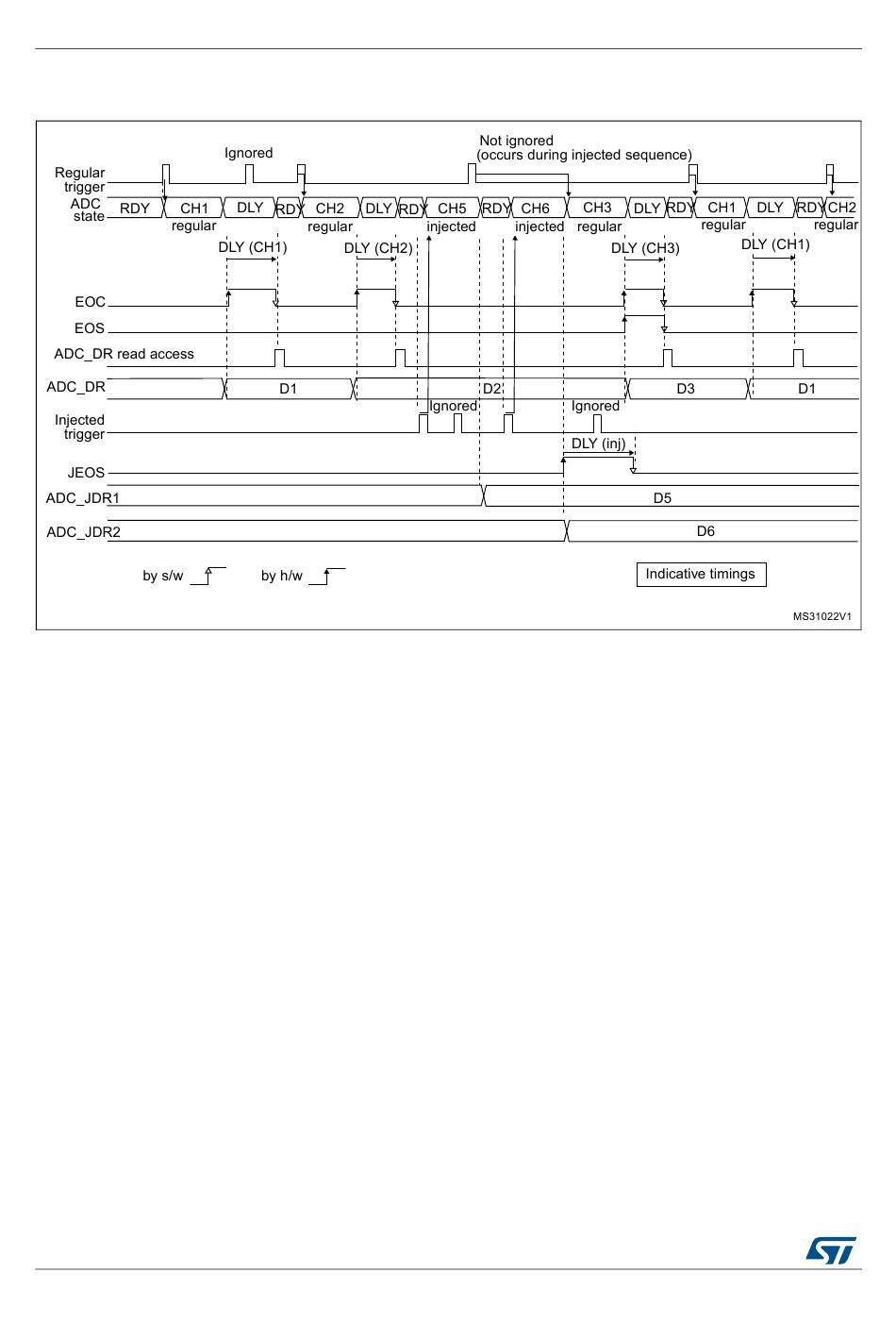

Figure 103. AUTODLY=1, regular HW conversions interrupted by injected conversions

(DISCEN=1, JDISCEN=1)

2. Regular configuration: EXTEN=0x1 (HW trigger), CONT=0, DISCEN=1, DISCNUM=1, CHANNELS = 1, 2, 3.

3. Injected configuration: JEXTEN=0x1 (HW Trigger), JDISCEN=1, CHANNELS = 5,6
