General-purpose timers (TIM2/TIM3/TIM4/TIM5)

for both values of the OCxCE enable bit. In this example, the timer TIMx is programmed in

In case of a PWM with a 100% duty cycle (if CCRx>ARR), OCxREF is enabled again at the

next counter overflow.

shows the behavior of the OCxREF signal when the ETRF input becomes high,

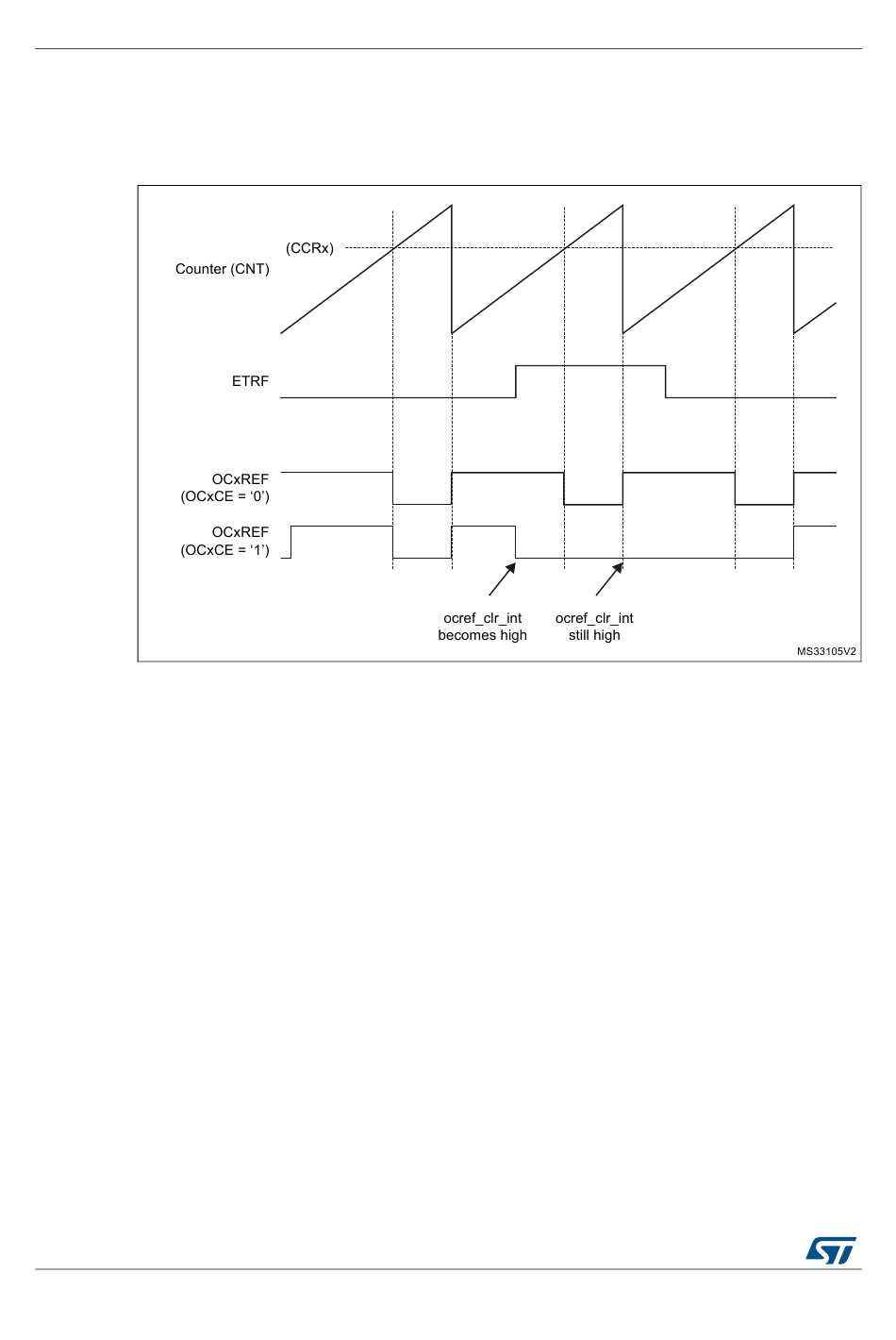

Figure 306. Clearing TIMx OCxREF
