Related to HP-GL Command

This section is useful when using the HP-GL command.
Model ID Response (HP-GL MODEL EMULATED)
This function sets the operation upon receipt of the "OI" command requesting for the model ID.
The reply will be 7550 when set to 7550B, and 7595 when set to 7595A.

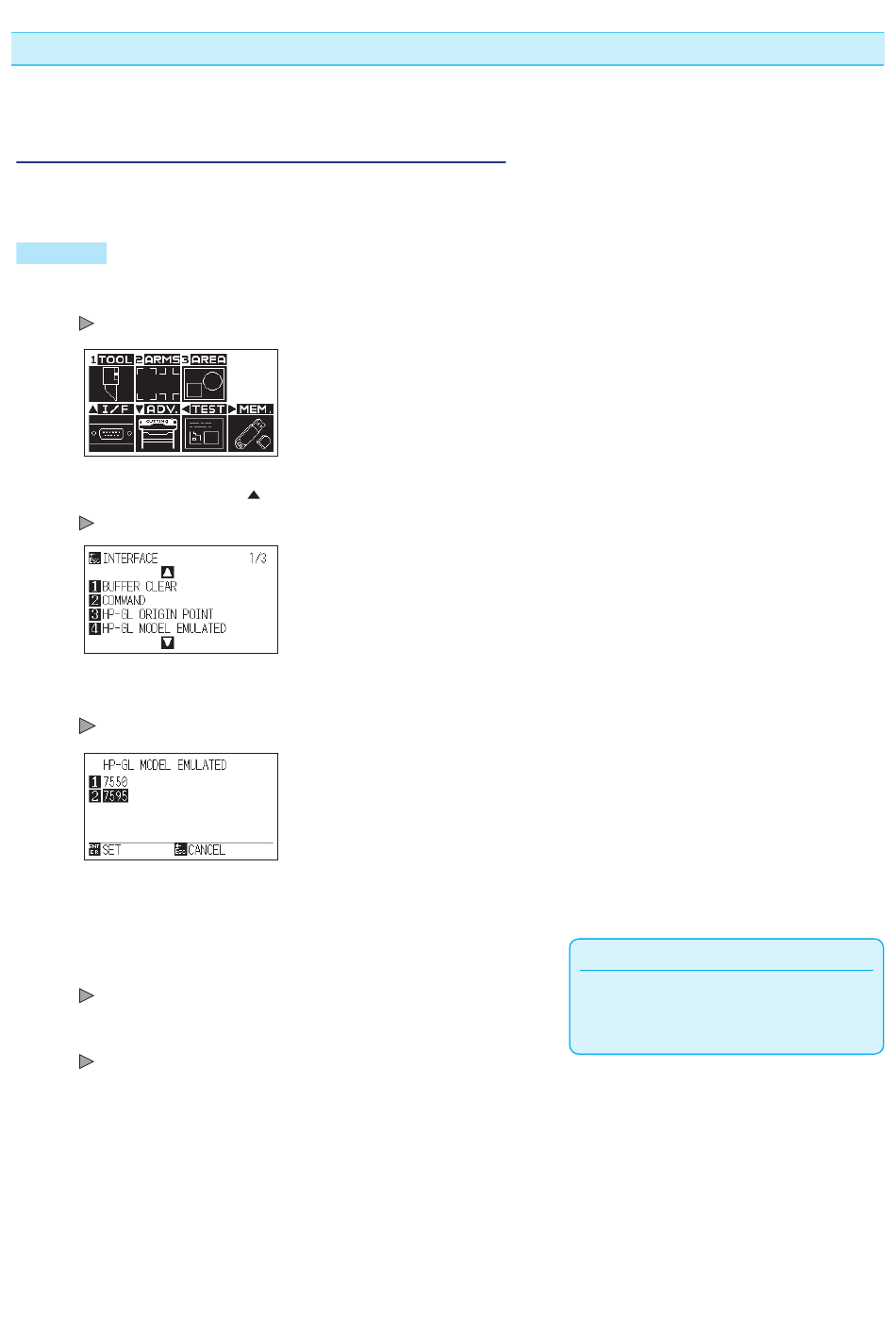

Operation
1
Press the [PAUSE/MENU] key in the default screen.
MENU screen is displayed.
2
Press the POSITION [ ] key (I/F).
INTERFACE screen (1/3) is displayed.
3
Press the [4] key (HP-GL MODEL EMULATED).
HP-GL MODEL EMULATED setting screen is displayed.
4
Press the [1] key (7550) or the [2] key (7595).
5
Confirm the setting and press the [ENTER] key (SET).
Setting will be set, and it will return to INTERFACE screen (1/3).
6
Press the [PAUSE/MENU] key.
It will return to default screen.
Supplement
It will return to INTERFACE screen (1/3)
without clearing the buffer when you press
the [ESC] key (CANCEL).
11-8
