2.4.2

LEDs on the Rear Panel (System Locator)

The field engineer or system administrator can identify the SPARC M12-1 requiring
maintenance by using the CHECK LED (A in
CHECK LED on the rear panel is referred to as the system locator, and has the same
function as the CHECK LED on the operation panel.

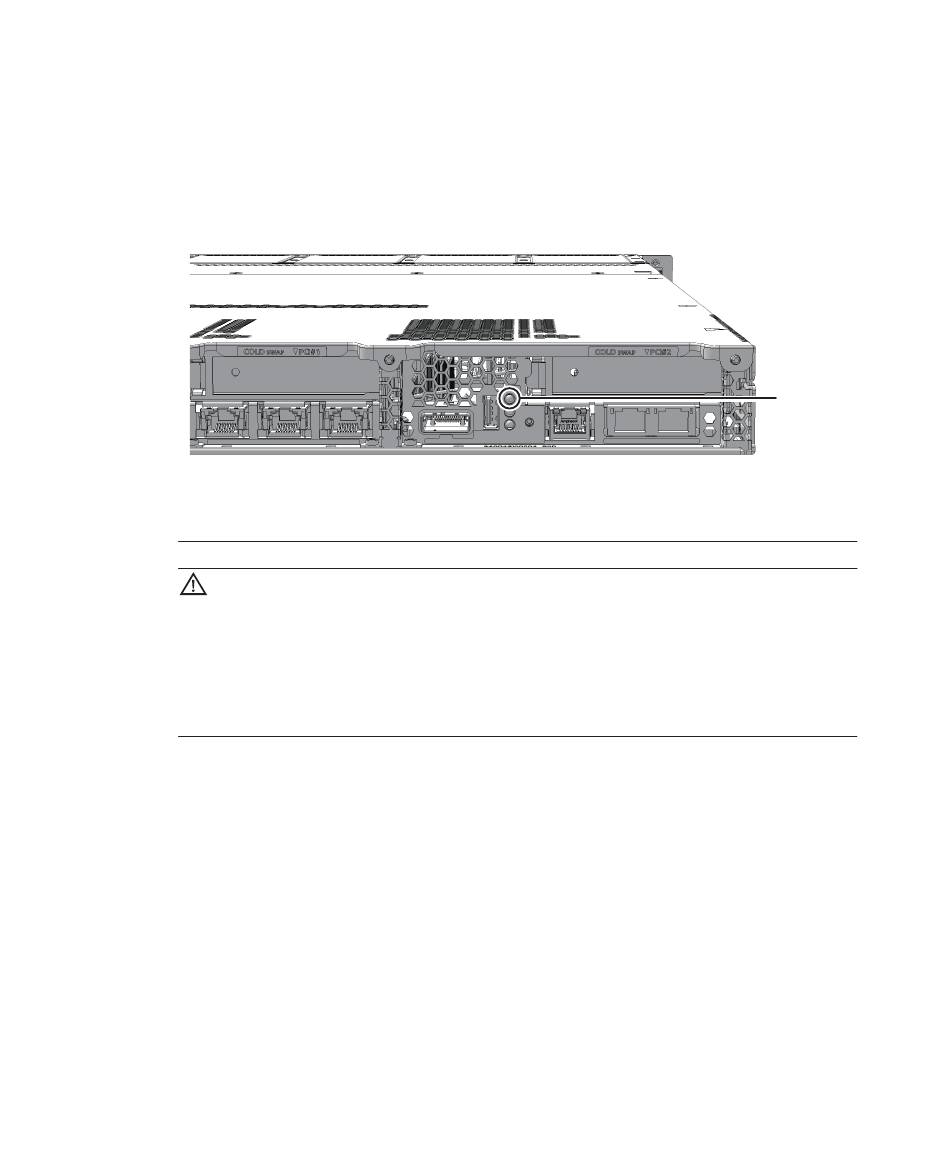

Figure 2-10 Location of the System Locator
Table 2-8 Status of the System Locator
Icon
2.4.3

LEDs on Each Component

Each component incorporates LEDs. If a component experiences an error, check the
LEDs to see which component requires maintenance. Check the LEDs before starting
maintenance work.
The LEDs on each component and the states that they indicate are as follows.
20 Fujitsu SPARC M12-1 Service Manual • January 2023
Name Color State
CHECK Amber On
Blinking SPARC M12-1 specified at execution of the XSCF
- Off
Figure 2-10) on the rear panel. The
Description
Hardware has detected an error.
command instructing the blinking. This (locator) is
used to identify the location of the SPARC M12-1
requiring maintenance.
The system is in the normal state, or the power is
disconnected or otherwise not being supplied.
A
