Dtc P0713: Transmission Fluid Temperature Sensor "A" Circuit High - Suzuki Swift Sport 2004 Service & Repair Manual

1) Connect scan tool to DLC with ignition switch OFF, if available.
2) Clear DTC in TCM memory and start engine.
3) Keep engine running at idle speed for 10 minutes or more.
4) Stop vehicle and check DTC.
DTC Troubleshooting
Step
1 Was "A/T System Check" performed?
2 Check transmission fluid temperature circuit for ground
short
1) Check continuity between terminal "C34-11" of
disconnected harness side TCM connector and ground.
Is continuity indicated?
3 Inspect transmission fluid temperature sensor
1) Inspect transmission fluid temperature sensor referring
to "Transmission Fluid Temperature Sensor Inspection".
Is result satisfactory?

DTC P0713: Transmission Fluid Temperature Sensor "A" Circuit High

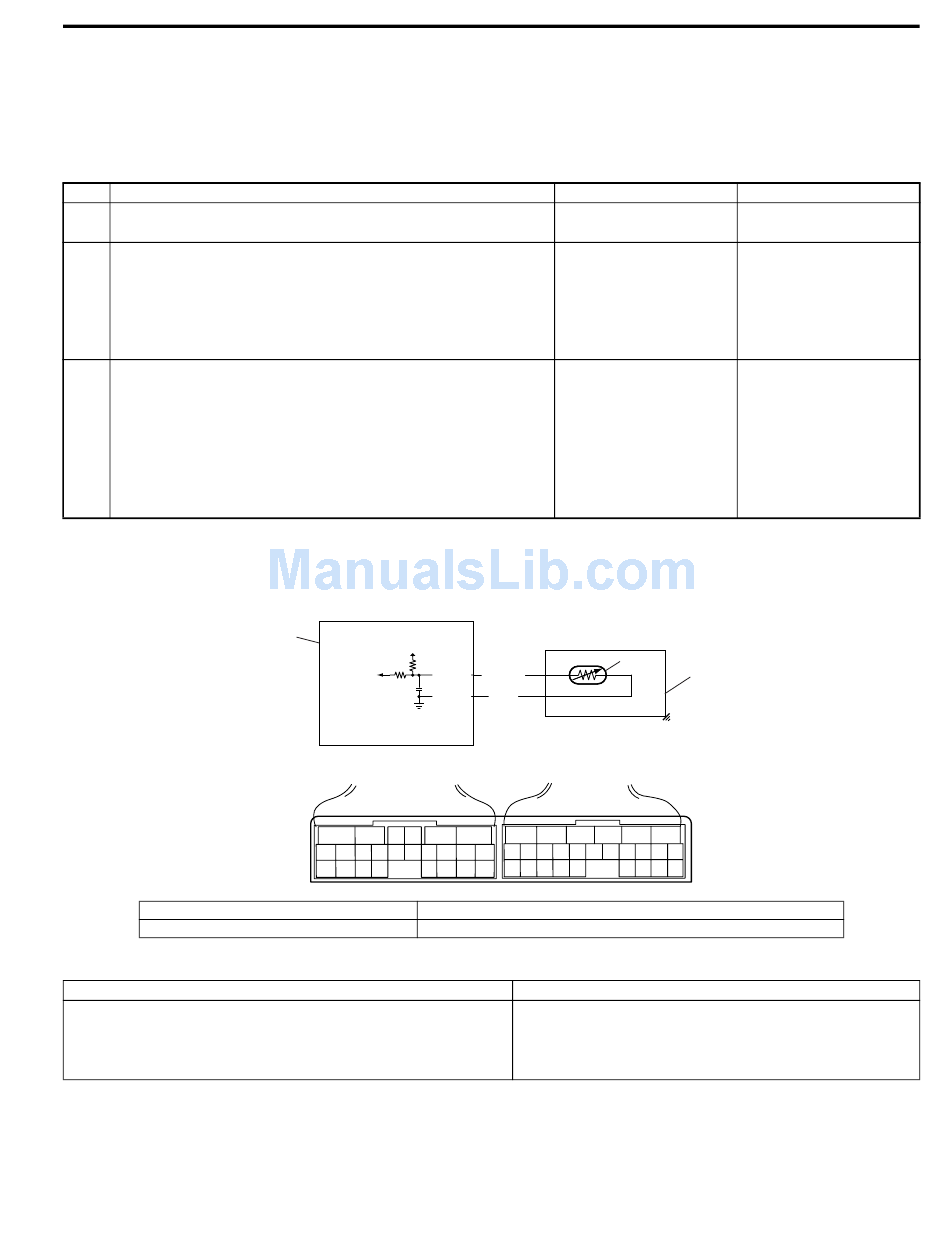

Wiring Diagram
1. TCM
2. Transmission fluid temperature sensor
DTC Detecting Condition and Trouble Area
DTC detecting condition
Transmission fluid temperature sensor terminal voltage is
more than specified value and sensor variation is less than
specified value even though engine was running in "R", "D",
"3", "2" or "L" range for 15 minutes after starting engine.
Action
1
5V
C34-11
C34-12
[A]
C34
12 11
3. A/T
[A]: Terminal arrangement of TCM connector (viewed from harness side)
Automatic Transmission/Transaxle:
Yes
Go to Step 2.
"LT GRN" circuit shorted
to ground.
Intermittent trouble or
faulty TCM. Check for
intermittent referring to
"Intermittent and Poor
Connection Inspection
in Section 00". If OK,
substitute a known-
good TCM and recheck.
2
LT GRN
ORN
C35
• Transmission fluid temperature sensor or its circuit
malfunction
• TCM
No
Go to "A/T System
Check".
Go to Step 3.
Replace transmission
fluid temperature
sensor.
S7RS0B5104026
3
I4RS0A510011-01
Trouble area
5A-49
