Isuzu 1999 RODEO Workshop Manual page 624

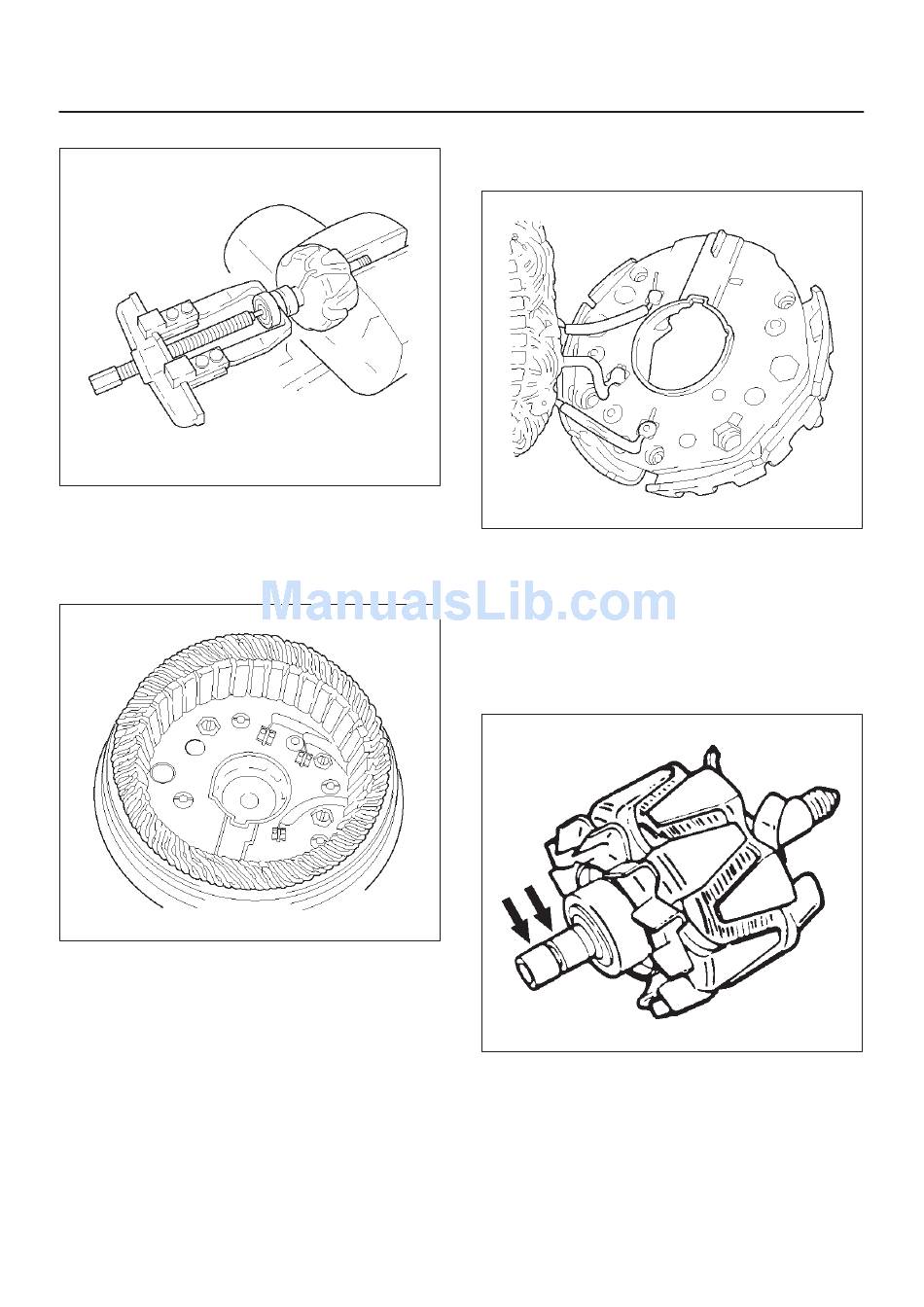

11. Ball bearing from armature shaft.
12. Nut from connecting pins "B+" and "D+".
13. Washers and insulating material.
14. Diode plate.
15. Remove together with stator winding from slip ring
bearing.
STARTING AND CHARGING SYSTEM (X22SE 2.2L)
16. Spray sleeve (if present).
17. Carefully bend off diode plate.
18. Unsolder stator winding from diode plate.
066RW012
Inspection and Repair
Repair or replace necessary parts if extreme wear or
damage is found during inspection.
Rotor Assembly
1. Check the rotor slip ring surfaces for contamination
and roughness. If rough, polish with #500–600
sandpaper.
