6A–32
ENGINE MECHANICAL (X22SE 2.2L)

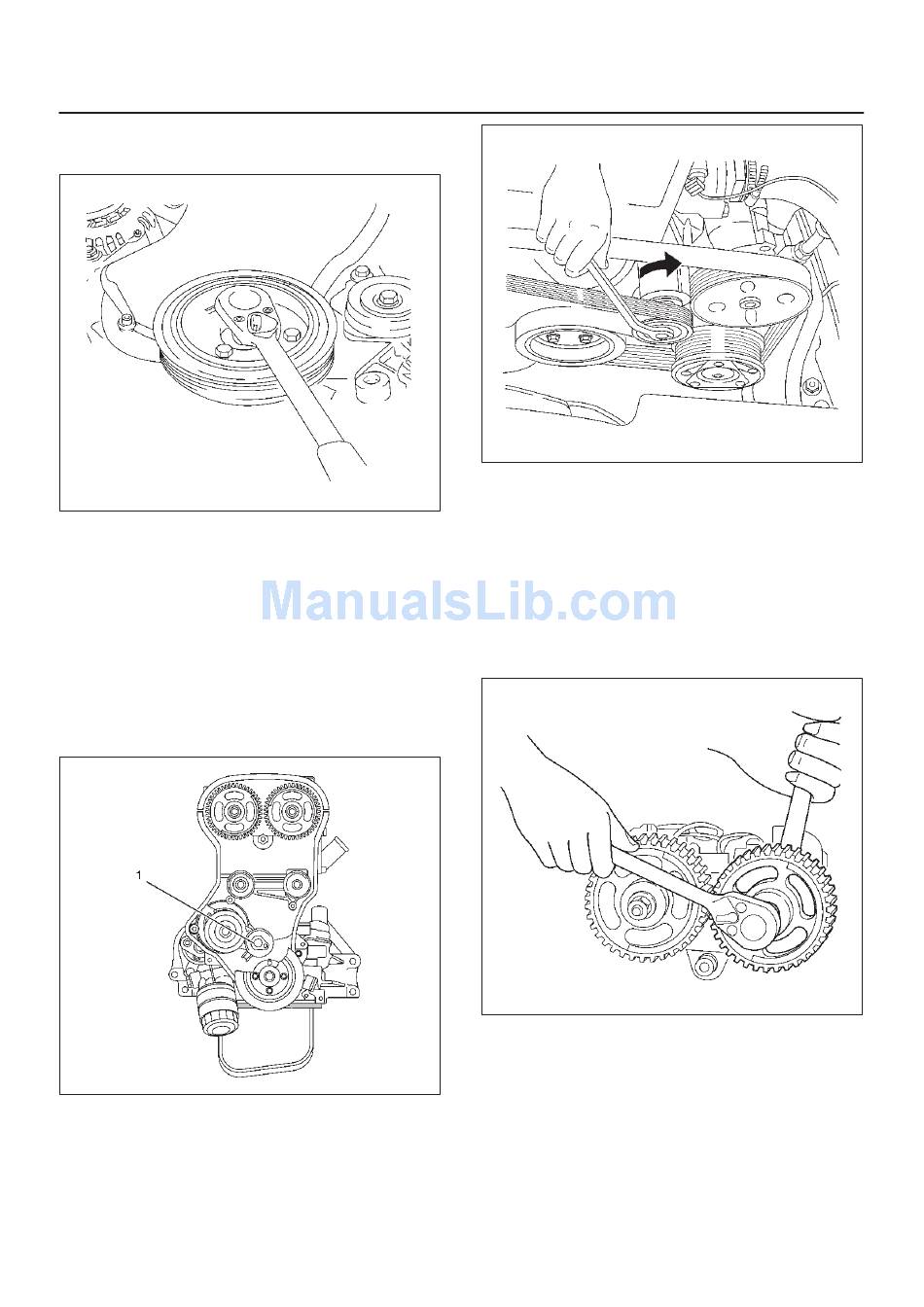

6. Install crankshaft pulley and tighten four bolts.
Torque: 20 N·m (14 lb ft)
7. Move drive belt tensioner to loose side using wrench
then install drive belt to normal position.
Removal
1. Disconnect battery ground cable.
2. Remove cylinder head cover.
Refer to removal procedure for Cylinder Head Cover
in this manual.
3. Remove timing belt tensioner and remove timing belt.
8. Connect engine harness three connector to chassis
harness of left rear side of engine compartment.
9. Connect battery ground cable.
020RW014
Camshaft
4. Use adjustable wrench to hexagonal portion of
camshaft, and remove fixing bolt from front end of
camshaft.
5. Remove camshaft drive gear from intake and exhaust
camshaft.
020RW010
033RW001
014RW074
