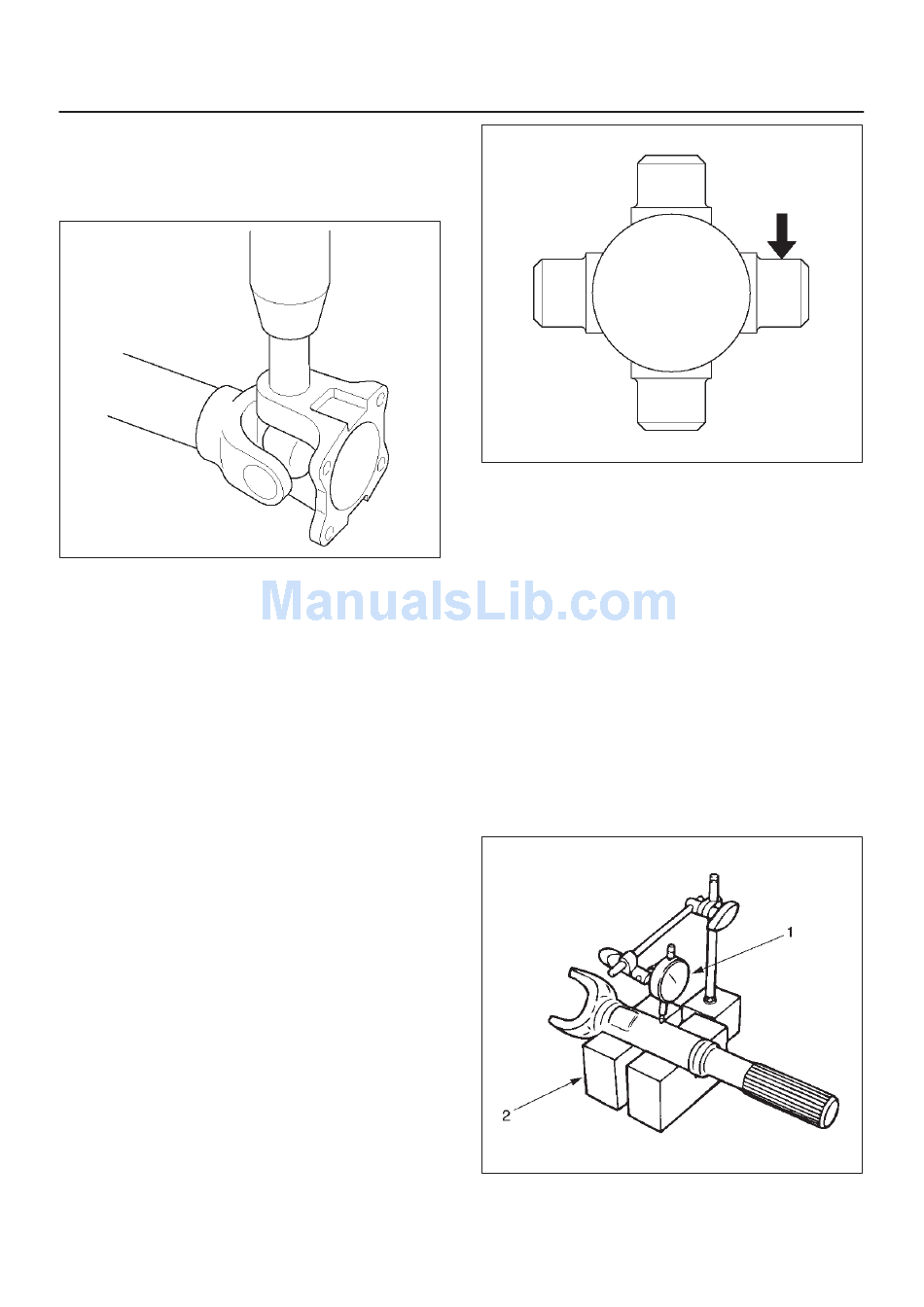

2. Set the yoke in the arbor press with a piece of tube
stock beneath it.
Place a solid plug on the upper bearing assembly and
press it through to release the lower bearing
assembly.
3. If the bearing assembly will not pull out by hand after
pressing, tap the base of the lug near the bearing
assembly to dislodge it.
4. To remove the opposite bearing, turn the yoke over
and straighten the spider in the open hole. Then
carefully press on the end of the spider so the
remaining bearing moves straight out of the bearing
spider hole. If the spider or bearing are cocked, the
bearing will score the walls of the spider hole and ruin
the yoke.
5. Repeat this procedure on the remaining bearing to
remove the spider from the yoke.
6. Make sure of proper position for reinstallation by
applying setting marks, then remove spider .

Inspection and Repair

Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition is
found through inspection.
NOTE: When any part of the journal assembly (spider,
needle roller bearing) requires replacement, be sure to
replace the entire assembly.
Check the following parts for wear, damage, noise or any
other abnormal conditions.
1. Spider
2. Needle roller bearing
3. Yoke
4. Flange
5. Boot
Spider pin for wear
Spider pin should be smooth and free from fretting or
galling. Visible signs of needle presence is normal, but
wear should not be felt.
Propeller shaft run–out
Support the propeller shaft on V-blocks (2) and check for
run-out by holding the probe of a dial indicator (1) in
contact with the shaft.
401RW020
Static run-out limit:
0.13 mm (0.005 in)
TIR on the neck of the slip tube shaft (with a
boot).
0.25 mm (0.010 in)
TIR on the ends of the tubing 3 inch from the
welds.
0.38 mm (0.015 in)
TIR at the linear center of the tube.
0.38 mm (0.015 in)
TIR for the full length of tube with 30" or less of
tubing.
(TIR : Total Indicator Reading)
DRIVE SHAFT SYSTEM
4C–35
