DIAGNOSTIC TROUBLE CODE (DTC) P0113 INTAKE AIR TEMPERATURE (IAT)

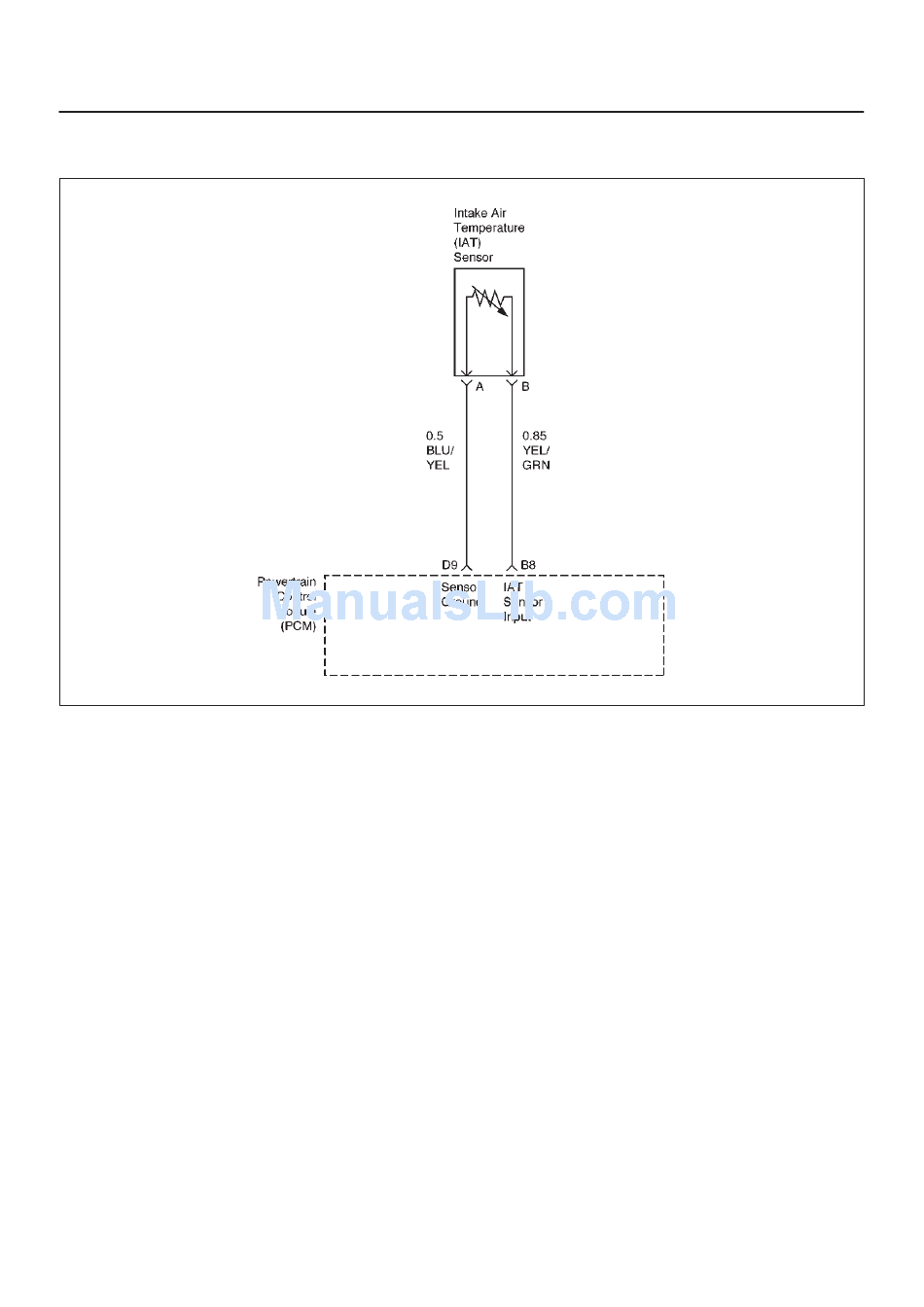

Circuit Description
The intake air temperature (IAT) sensor is a thermistor
which measures the temperature of the air entering the
engine. The powertrain control module (PCM) applies 5
volts through a pull–up resistor to the IAT sensor. When
the intake air is cold, the sensor resistance is high and the
PCM will monitor a high signal voltage on the IAT signal
circuit. If the intake air is warm, the sensor resistance is
lower causing the PCM to monitor a lower voltage.
Diagnostic Trouble Code P0113 will set when the PCM
detects an excessively high signal voltage on the intake
air temperature sensor signal circuit. DTC P0113 is a
Type A Code.
Conditions for Setting the DTC
f The engine has been running for over 4 minutes.
f Vehicle speed is less than 32 km/h (20 mph).
f ECT signal temperature is above 60°C (140°F).
f Mass air flow is less than 20g/second.
f IAT signal voltage almost 5 volts which indicates an
intake air temperature less than –39°C (–38°F) for a
total of 12.5 seconds over a 25–second period.
Action Taken When the DTC Sets
f The PCM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.
f The PCM will use a default IAT valve based on PCM
inputs and engine run time.
RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION
SENSOR CIRCUIT HIGH INPUT
f The PCM will store conditions which were present
when the Diagnostic Trouble Code was set as Freeze
Frame and in the Failure Records data.
Conditions for Clearing the MIL/DTC
f The PCM will turn the MIL OFF on the third consecutive
trip cycle during which the diagnostic has been run and
the fault condition is no longer present.
f A history Diagnostic Trouble Code P0113 will clear
after 40 consecutive warm–up cycles have occurred
without a fault.
f Diagnostic Trouble Code P0113 can be cleared by
using the Scan Tool's "Clear Info" function.
Diagnostic Aids
Check for the following conditions:
f Poor connection at PCM – Inspect harness connectors
for backed–out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal–to–wire connection.
f Damaged harness – Inspect the wiring harness for
damage, shorts to ground, shorts to battery positive,
and open circuits. If the harness appears to be OK,
observe the IAT display on the Tech 2 while moving
connectors and wiring harnesses related to the IAT
sensor. A change in the IAT display will indicate the
location of the fault.
If Diagnostic Trouble Code P0113 cannot be duplicated,
the information included in the Failure Records data can
6E1–123
