Removal

NOTE: Before removing transmission and transfer

assembly from vehicle, change the transfer mode to 2WD

using the 4WD push button switch on dash panel.

1. Disconnect battery ground cable.

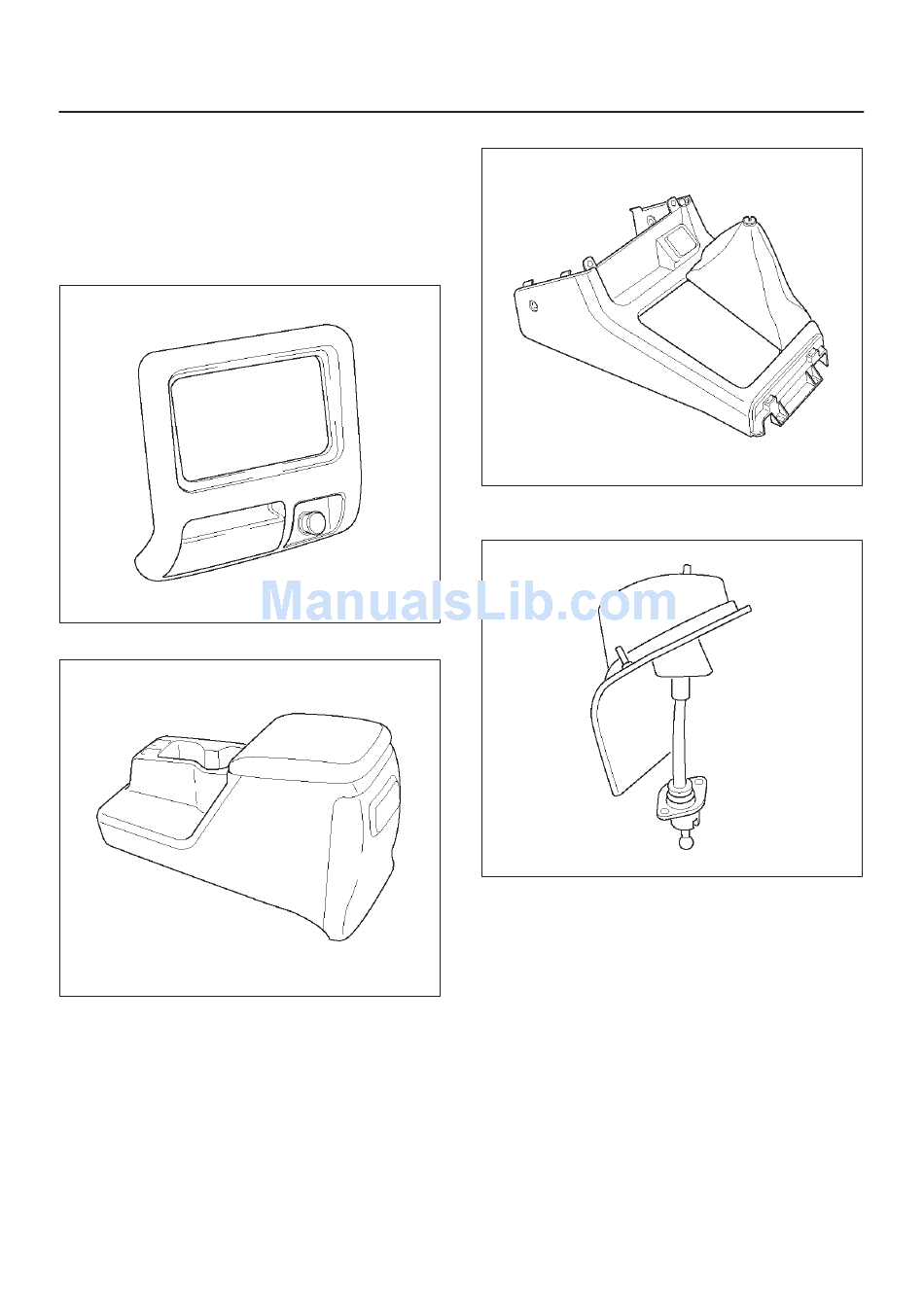

2. Remove transfer control lever knob (1).

3. Remove lower cluster assembly (2).

4. Remove rear console (3).

5. Remove center console (4).

6. Remove grommet assembly and transfer control

TRANSFER CASE
