Installation

1. Install brake pipe.
2. Connect Antilock brake system (ABS) speed sensor
and harness, refer to 4–Wheel Anti–Lock Brake
System (ABS) in Brake section.
3. Install brake disc.
4. Install brake caliper. Refer to Disk Brakes in Brake
section.
5. Install axle housing assembly.
6. Install coil spring and insulator.
7. Install the lower link fixing bolt and nut to the axle
housing. For the procedures in items 7–11, refer to
Suspension section.
8. Install the upper link bolt and nut to the axle housing.

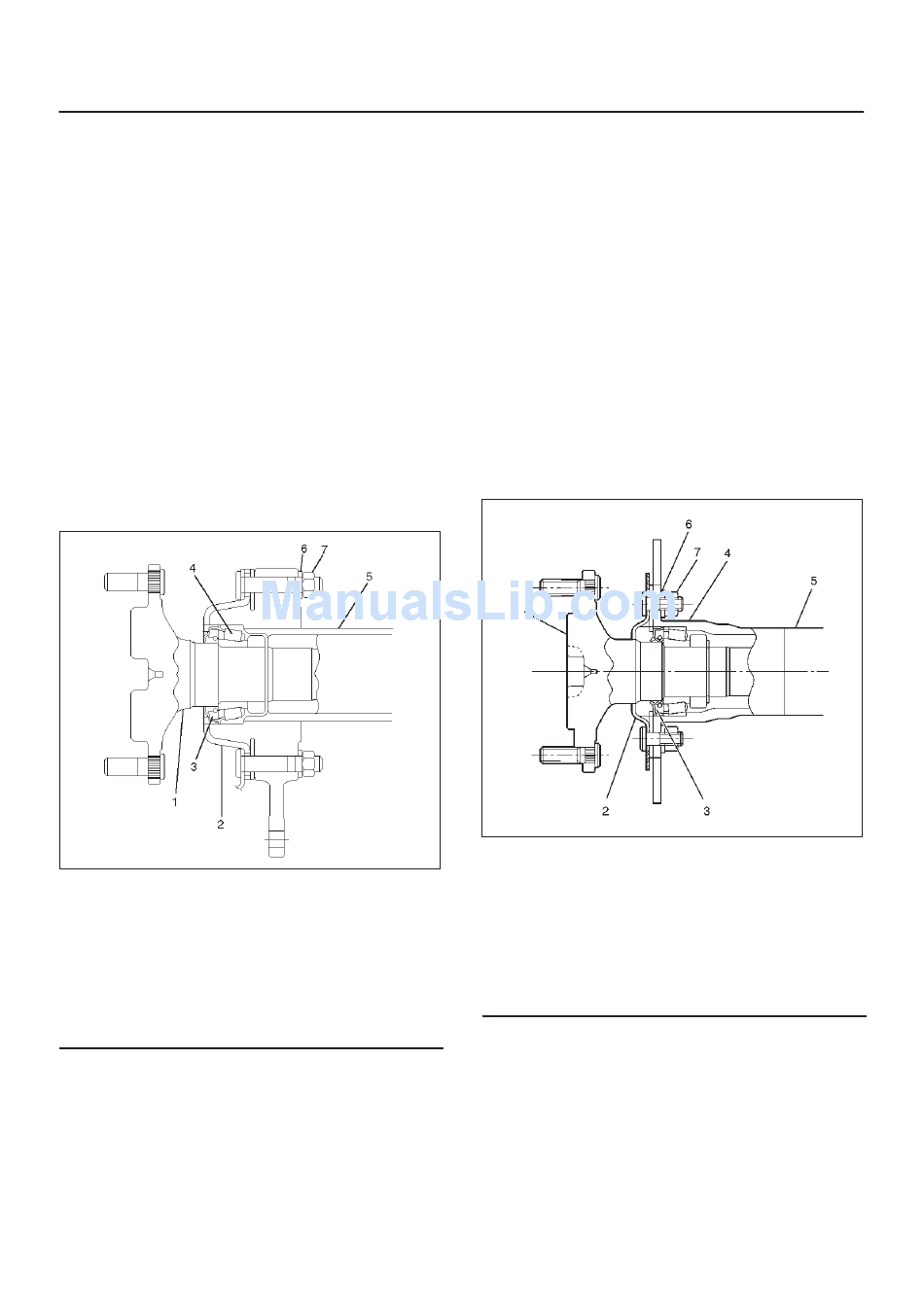

Axle Shaft and Associated Parts

Disc Brake Model
Legend
(1) Axle Shaft
(2) Backing Plate
(3) Oil Seal
(4) Bearing
(5) Axle Housing
(6) Lock Washer
(7) Nut

Axle Shaft, Oil Seal and Bearing

420RW008
DIFFERENTIAL (REAR)
9. Install the lateral rod fixing nut and bolt to the frame
side.
10. Install the stabilizer linkage mounting nut and bolt to
the frame side.
11. Install the shock absorber.
12. Install brake tube flare nut, Refer to Disk Brakes in
Brake section.
13. Install ABS connector and bracket.
14. Connect breather hose.
15. Install parking brake cable, Refer to Parking Brakes in
Brake section.
16. Bleed brakes. Refer to Hydraulic Brakes in Brake
section.
Drum Brake Model
Legend
(1) Axle Shaft
(2) Backing Plate
(3) Oil Seal
(4) Bearing
(5) Axle Housing
(6) Lock Washer
(7) Nut
4A2–7
420RX001
