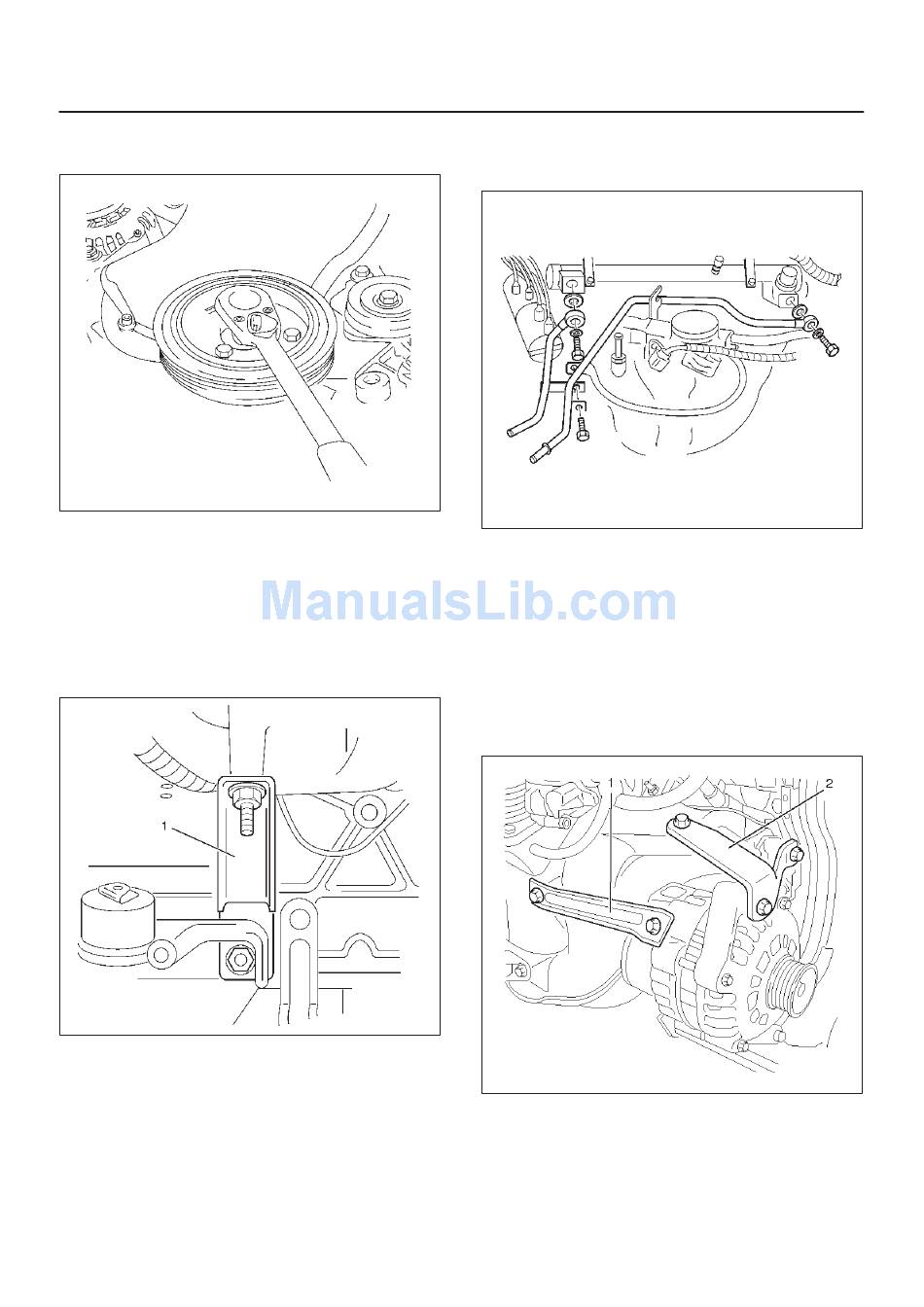

17. Install crankshaft pulley and tighten four bolts.
Torque: 20 N·m (14 lb ft)
18. Connect connector for power steering pump pressure
switch.
19. Connect engine harness connector to chassis
harness of the left rear of engine compartment and
install engine harness cover.
20. Install two bolts to intake manifold for water pipe
support.
21. Install fixing nut of intake manifold stay to cylinder
block.
22. Install canister hose.
23. Connect connector for evaporation valve.
ENGINE MECHANICAL (X22SE 2.2L)
24. Install fuel pipe joint eye bolts to fuel rail assembly and
install fuel pipe bracket with electric ground cable.
Torque: 25 N·m (18 lb ft)
020RW014
25. Install water hose between water pipe and throttle
body.
26. Install heater hose to water pipe side.
27. Install heater hose to adapter side.
28. Connect knock sensor connector.
29. Connect crankshaft angle sensor connector.
30. Install generator with bracket and tighten three bolts.
Torque
35 N·m (25 lb ft) for Long bolt
20 N·m (14 lb ft) for Short bolt
025RW002
6A–27
042RW001
065RW025
