Limited Slip Differential Assembly; Disassembled View; Disassembly - Isuzu 1999 RODEO Workshop Manual

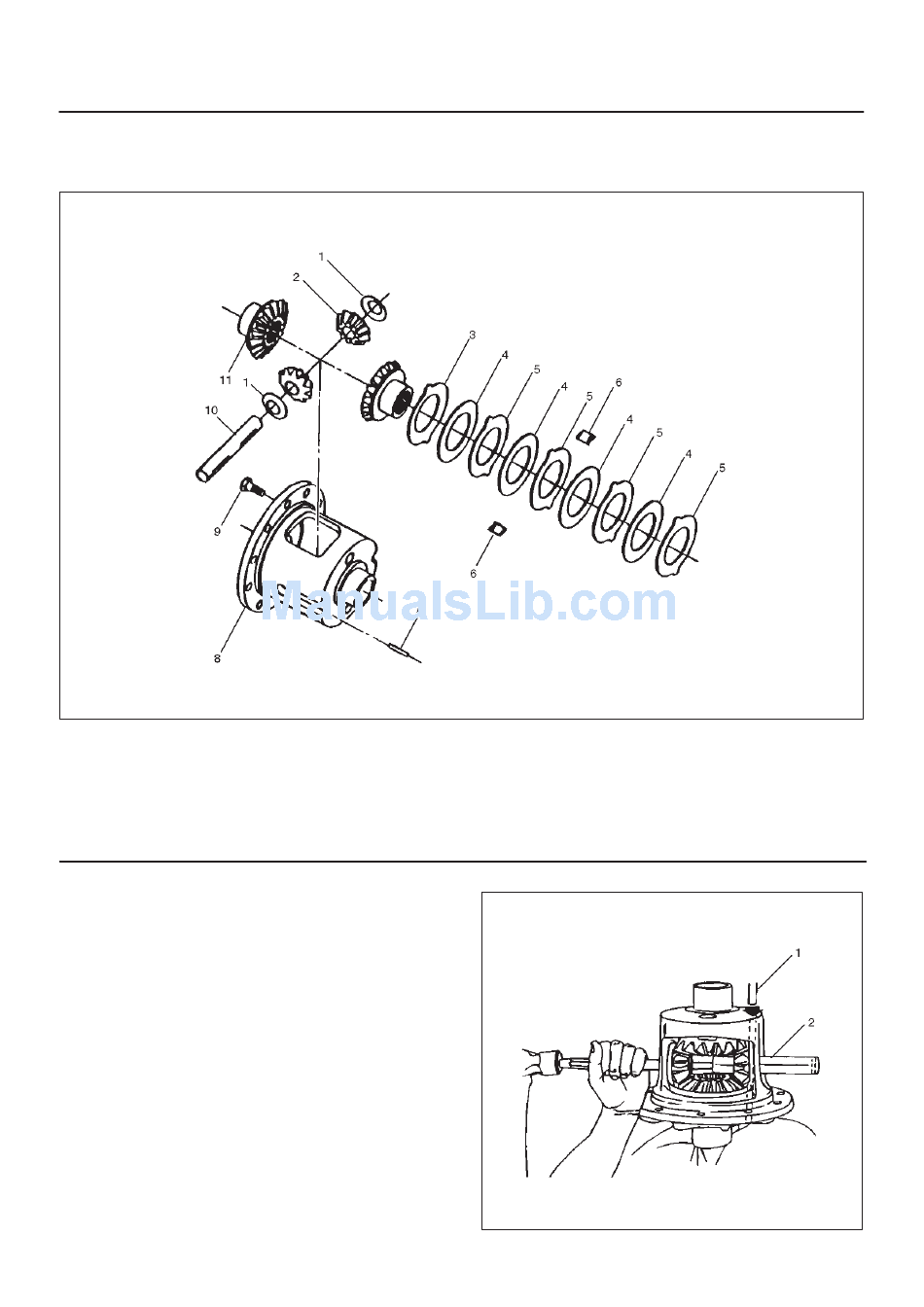

Disassembled View

Legend
(1) Thrust Washer–Differential Pinion Mate Gear
(2) Pinion Mate Gear
(3) Dished Spacer
(4) Disc
(5) Plate

Disassembly

1. Place the holder J–39824 into a vise.
Position the differential on the holder with the ring
gear side down.
2. Remove Lock pin (1) from differential shaft using a
punch.
3. Remove Differential shaft (2) using hammer and
punch.
Place shop towel behind case to prevent differential
shaft from dropping out of case.

Limited Slip Differential Assembly

DIFFERENTIAL (REAR)
(6) Differential Plate Retainer
(7) Lock Pin
(8) Differential Case
(9) Ring Gear Bolts
(10) Differential Shaft
(11) Differential Side Gear
4A2–27
425RW004
425RW005
