8. Remove lock washer and lock screw.

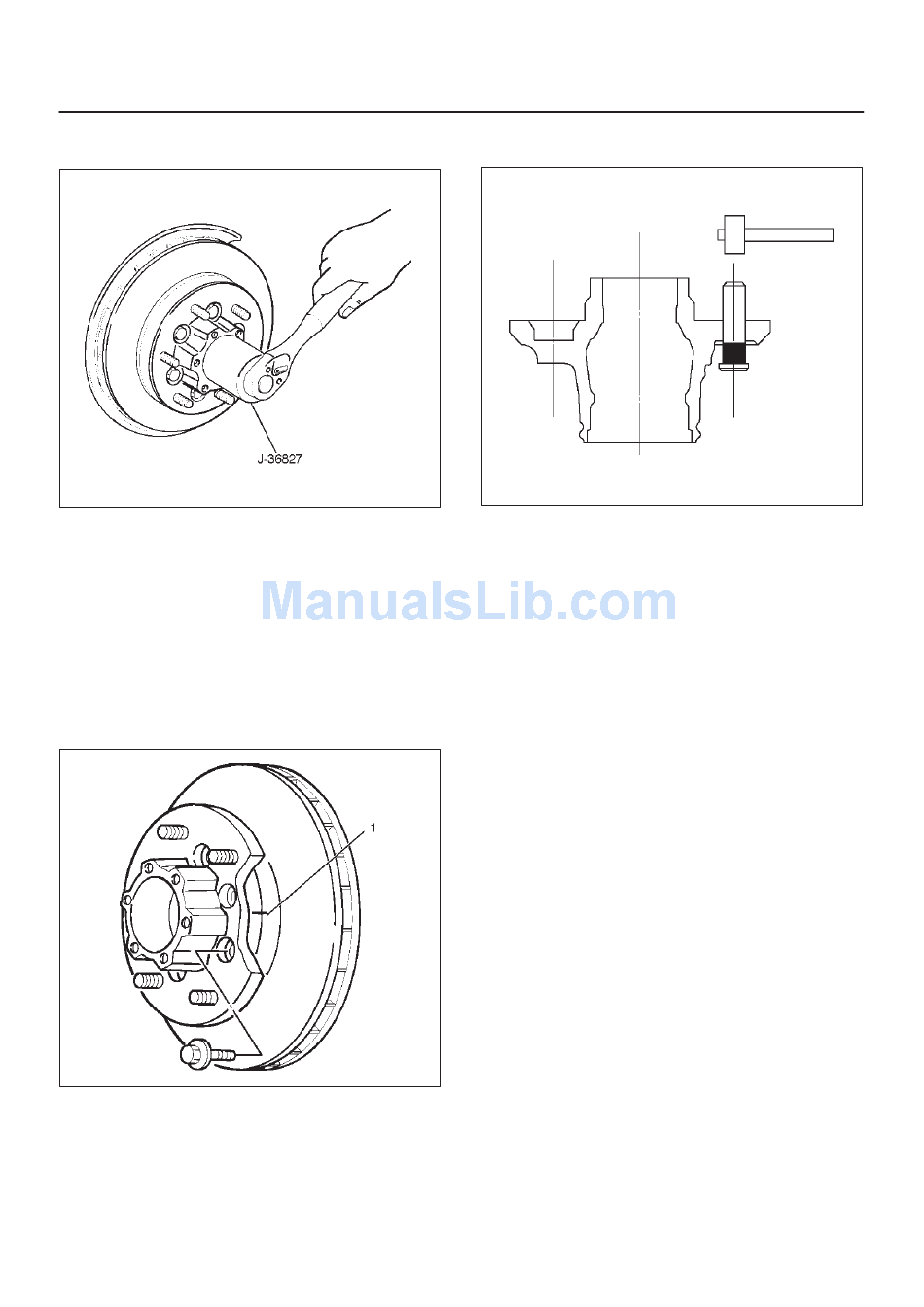

9. Use wrench J–36827, remove hub nut.
10. Remove hub and disc assembly.
11. Remove ABS sensor ring.
12. Remove outer bearing.
13. Remove oil seal.
14. Remove inner bearing.
15. Remove bolt , if necessary, replace the wheel pin in
the following manner.
f Apply a scribe mark(1) to disc to hub.
f Clamp the hub and disc assembly in a vise, using
protective pads. Remove the 6 disc–to–hub
retaining bolts.
f Place hub on a suitable work surface and remove
the studs by using a hammer.
901RW054

Inspection and Repair

Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition are
found through inspection.
Check the following parts.
f Hub
f Hub bearing oil seal
f Knuckle spindle
f Disc
f Caliper
f Shift on the fly system parts (Cap, Hub flange, Shim,
Snap ring)
f ABS sensor ring
For inspection and servicing of disc caliper and related
parts, refer to Disc Brakes in Brake section.
411RS003
