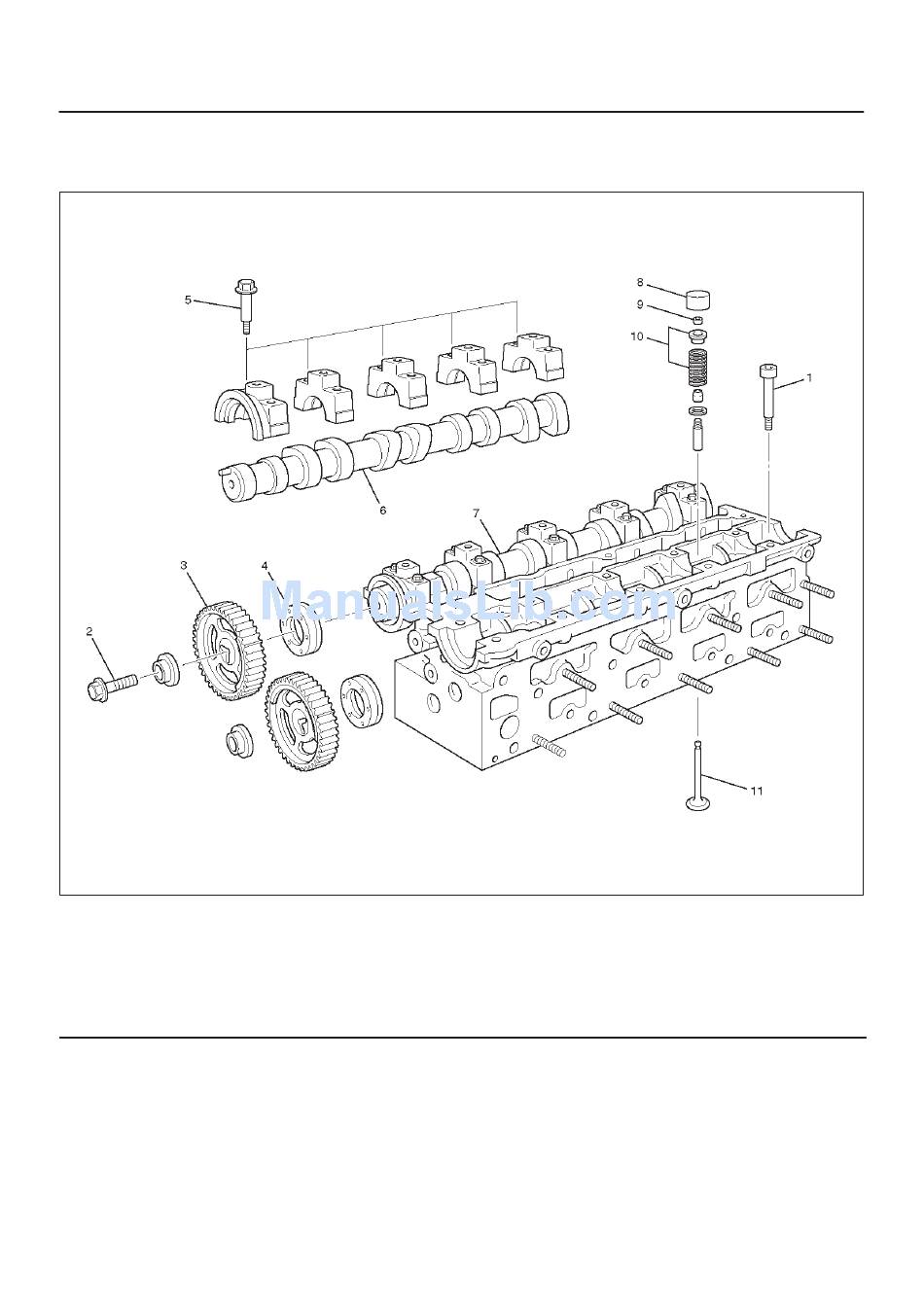

Cylinder Head and Associated Parts

Legend
(1) Cylinder Head Bolt
(2) Camshaft Pulley Fixing Bolt
(3) Camshaft Pulley
(4) Camshaft Oil Seal
(5) Camshaft Bracket Bolt

Disassembly

NOTE:
f During disassembly, be sure that the valve train
components are kept together and identified so that
they can be reinstalled in their original locations.
ENGINE MECHANICAL (X22SE 2.2L)

Cylinder Head

(6) Camshaft Exhaust
(7) Camshaft Intake
(8) Tappet (HLA)
(9) Split Collar
(10) Valve Spring and Spring Upper Seat
(11) Valve
f Before removing the cylinder head from the engine
and before disassembling the valve mechanism,
perform a compression test and note the results.
1. Remove camshaft pulley fixing bolt (2), then pulley
(3).
2. Remove camshaft bracket fixing bolt (5), camshaft
bracket, then camshaft exhaust (6), and intake side
(7).
6A–39
011RW010
