4C–14
DRIVE SHAFT SYSTEM

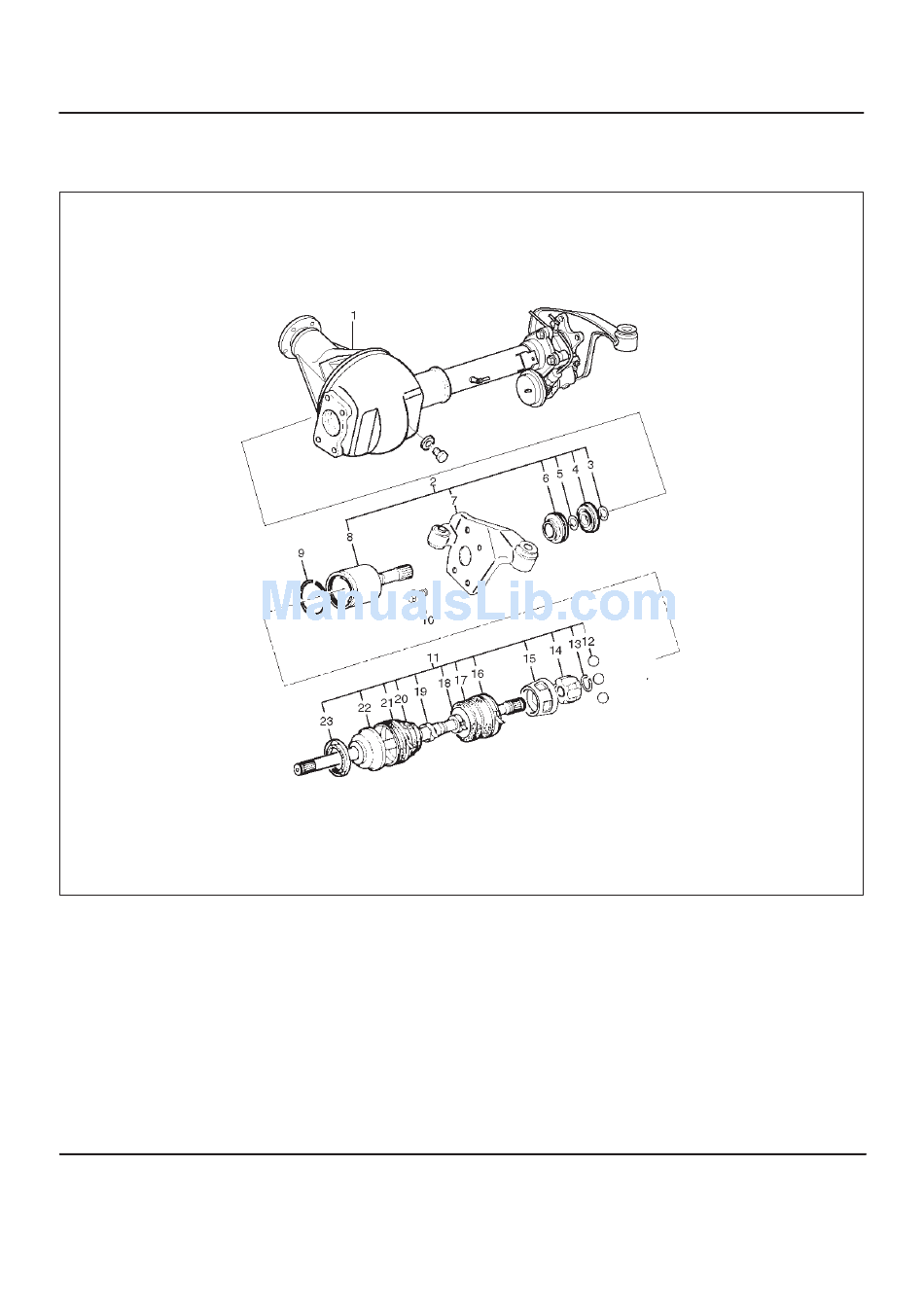

Front Axle Drive Shaft and Associated Parts

Legend
(1) Axle Case and Differential
(2) DOJ Case Assembly
(3) Snap Ring
(4) Bearing
(5) Snap Ring
(6) Oil Seal
(7) Bracket
(8) DOJ Case
(9) Circlip
(10) Bolt
(11) Drive Shaft Joint Assembly

Front Axle Drive Shaft

(12) Ball
(13) Snap Ring
(14) Ball Retainer
(15) Ball Guide
(16) Band
(17) Bellows
(18) Band
(19) Band
(20) Bellows
(21) Band
(22) BJ Shaft
(23) Dust Seal
412RW033
