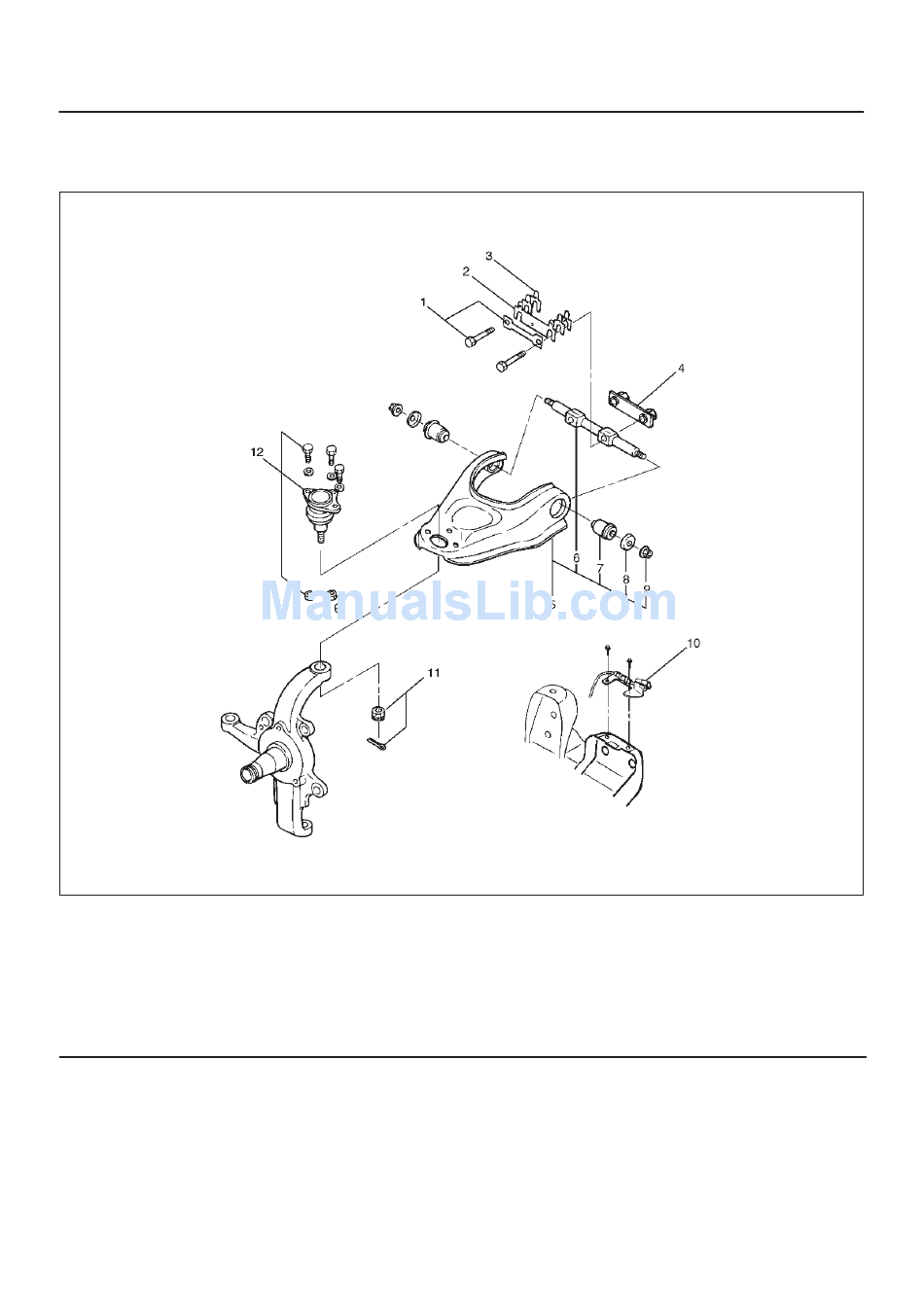

Upper Control Arm and Associated Parts

Legend
(1) Bolt and Plate
(2) Camber Shims
(3) Caster Shims
(4) Nut Assembly
(5) Upper Control Arm Assembly
(6) Fulcrum Pin

Removal

1. Raise the vehicle and support the frame with suitable
safety stands.
2. Remove wheel and tire assembly. Refer to Wheel in
this section.

Upper Control Arm

(7) Bushing
(8) Plate
(9) Nut
(10) Speed Sensor Cable
(11) Nut and Cotter Pin
(12) Upper Ball Joint
3. Remove the brake caliper and disconnect brake pipe.
Refer to Disc Brakes in Brake section.
4. Support lower control arm with a jack.
5. Remove speed sensor cable.
6. Remove nut and cotter pin then use remover
J–36831.
FRONT SUSPENSION 3C–13
450RW005
